TIG Welder AC/DC 210A DIGITAL - TIG 210EXT - Shop Soiled

TIG Welder AC/DC 210A DIGITAL - TIG 210EXT - Shop Soiled

Enlarge Image

TIG Welder AC/DC 210A DIGITAL - TIG 210EXT - Shop Soiled

CODE: TIG210EXT-SS

Availability: In stock

Includes a SSC Controls® remote foot pedal made in U.S.A worth £190
0% Finance Available - Select pay by finance in checkout - Instant decision
£1,099.00 +VAT £1,318.80 Incl. VAT

* Required Fields

Paypal Visa American Express Mastercard

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 16mm

7mm Max Weld

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 16mm
Welds ALL steels in DC mode, will also weld brass, copper & titanium

Weld Steel

Welds ALL steels in DC mode, will also weld brass, copper & titanium
4 AC waveforms available for welding thin gauge & special alloys, AC Frequency adjustment up to 250hz gives a tight focused arc

Welds Aluminium

4 AC waveforms available for welding thin gauge & special alloys, AC Frequency adjustment up to 250hz gives a tight focused arc
Description

Details

The R-Tech TIG210EXT is a power-packed 210Amp AC/DC TIG welder with 240V input, 4 AC waveforms, 9 Job memory store, True 4 way trigger latching with pre/post gas, slope up/down and start/final amps, LED display, advanced pulse welding and remote foot pedal option and a massive 60% duty cycle
Tech Specs

Details

 Amperage range DC 5-210A,  AC 10-210A,   MMA 20-160A
 Duty cycle  TIG 210A 60% - MMA 160A 60%
 Input voltage/amps  240v 16A  - No load voltage 70v
 Memory Stores  9
 AC Frequency  20 - 250 Hz
 AC Balance  5 - 90 %
 Pulse Width  5 - 95 %
 Pulse Frequency  AC 0.1 - 250 Hz Squarewave
   AC .01 - 10 Hz Soft, Sine & Triangular Wave
   DC 0.1 - 500 Hz
 Pre flow gas  0 - 25 seconds
 Post flow gas  0 - 50 seconds
 Start amperage  Yes
 End amperage  Yes
 Slope up  0 - 25 seconds
 Slope down  0 - 25 seconds
 HF Start  Yes
 Lift Start  Yes
 MMA Arc force  0 - 100 %
 MMA Hot start  0 - 2 seconds
 MMA Hot start amps    0 - 100%
 VRD  Yes - Reduces MMA OCV for user safety
 Gross weight  24KG
 Dimensions  438H x 232W x 550L (mm)
 Insulation class  IP21S
 Cooling fan  Yes - Cooling fan with thermostatic protection

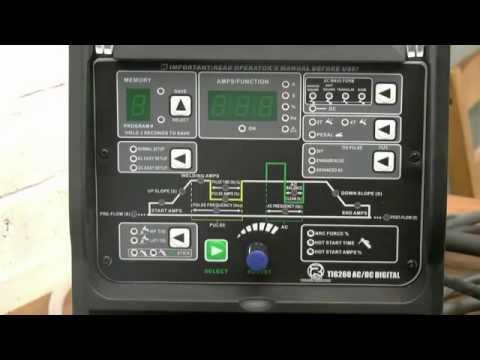

Digital control panel - designed for easy use - Control all parameters from a single button
- Easy start and finish set-up
- Store up to 9 jobs in memory

Power Factor Correction - What is this?Gives lower running costs, it is more energy efficient, cleans noisy power supplies & is 100% generator friendly

4 AC Waveforms
- Advanced Square Wave: fast cooling weld pool, deep penetration and fast travel speed
- Soft Square and Sine Wave: Lower arc noise, for a more traditional arc
- Triangular Wave: designed for thin alloys, reduces heat input

HF Microstart - improved arc starting and less interference - What is this?Ensures an ultra-clean start to your welds
Lift Tig start option when welding near sensitive electronics - Automotive ECUs etc
VRD Voltage Reduction in MMA - reduces OCV in standby for increased user safety
Full 4-way functioning with control of pre/post flow gas, initial/final amps, slope up/down
Generator Friendly - Recommended minimum of 7KVA
LED display for preset and actual amperage
MMA Anti-Stick, Arc-Force & Hot Start technology
3 year collect and return UK warranty - What is this?in the unlikely event of machine failure, R-Tech will pay to collect, repair and return the Tig welder to you quickly- No quibble warranty

Package contents:
TIG210 Digital Tig Welder, Remote foot pedal, 4M WP26 Tig Torch, 3M Earth Lead, MMA lead, Argon Regulator, Gas hose, Torch consumables pack. - Includes a remote foot pedal worth £178

Videos

Details

Warranty

Details

3 Year Warranty



The R-Tech TIG210EXT *Shop Soiled* carries the following warranty:-

  • TIG210EXT *Shop Soiled* - 3 Year Warranty
  • FP8 SSC Foot Pedal - 1 Year Warranty
  • Regulator - 1 Year Warranty
  • R-Tech TIG Torches - 3 Month Warranty
  • Earth and Electrode Leads - 3 Month Warranty
  • Optional Water Cooler - 3 Year Warranty

R-Tech machines are designed to be robust, easy to use and highly reliable but in the unlikely event that your welder or plasma cutter requires attention, R-Tech promise to:-

  • Arrange collection via next working day UK courier [48hr offshore]
  • Quickly repair the machine at our Technical and R&D centre in Gloucester
  • Deliver back via next working day UK courier  [48hr offshore]
  • All costs covered by R-Tech - Yes, Collection, repair and delivery!

No questions, no hassle, just honest and reliable service - A true no quibble warranty

Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.

Other benefits of owning an R-Tech machine include:-

  • Free friendly and knowledgeable technical advice via phone and email
  • Free machine setup help always available - We want you to get the best from your machine
  • Ten year Duty-of-Care on all our machines, giving you piece of mind that spare parts will be available if needed
  • Video's to show how to use and setup your R-Tech machine.
  • 2 year extended warranties available at a minimal cost.

Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.
