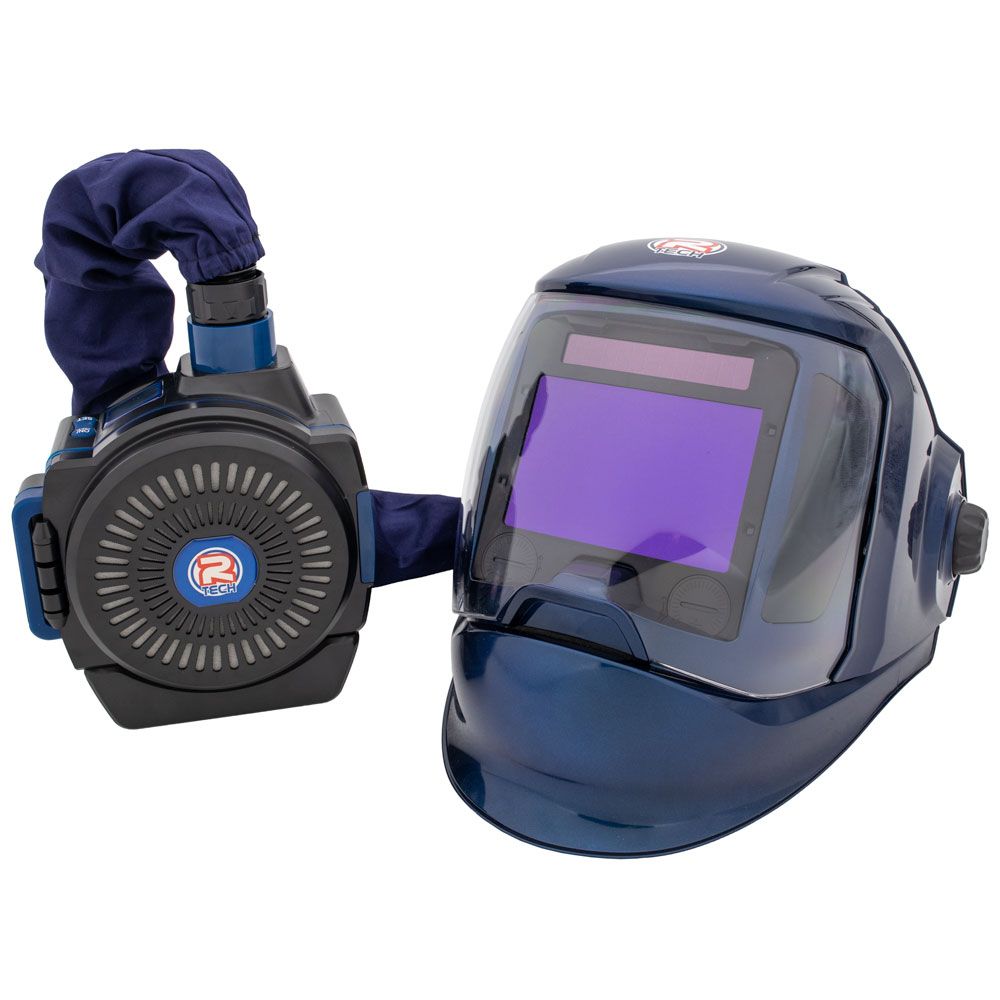

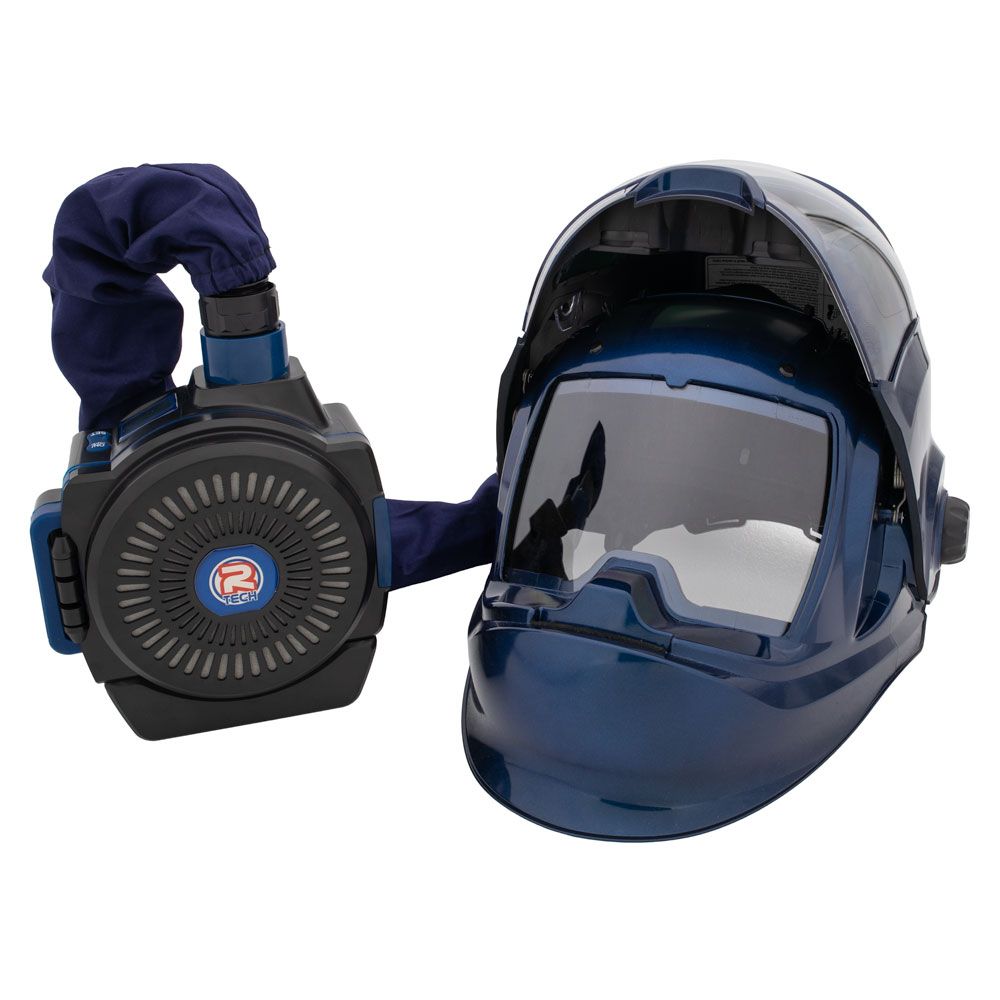

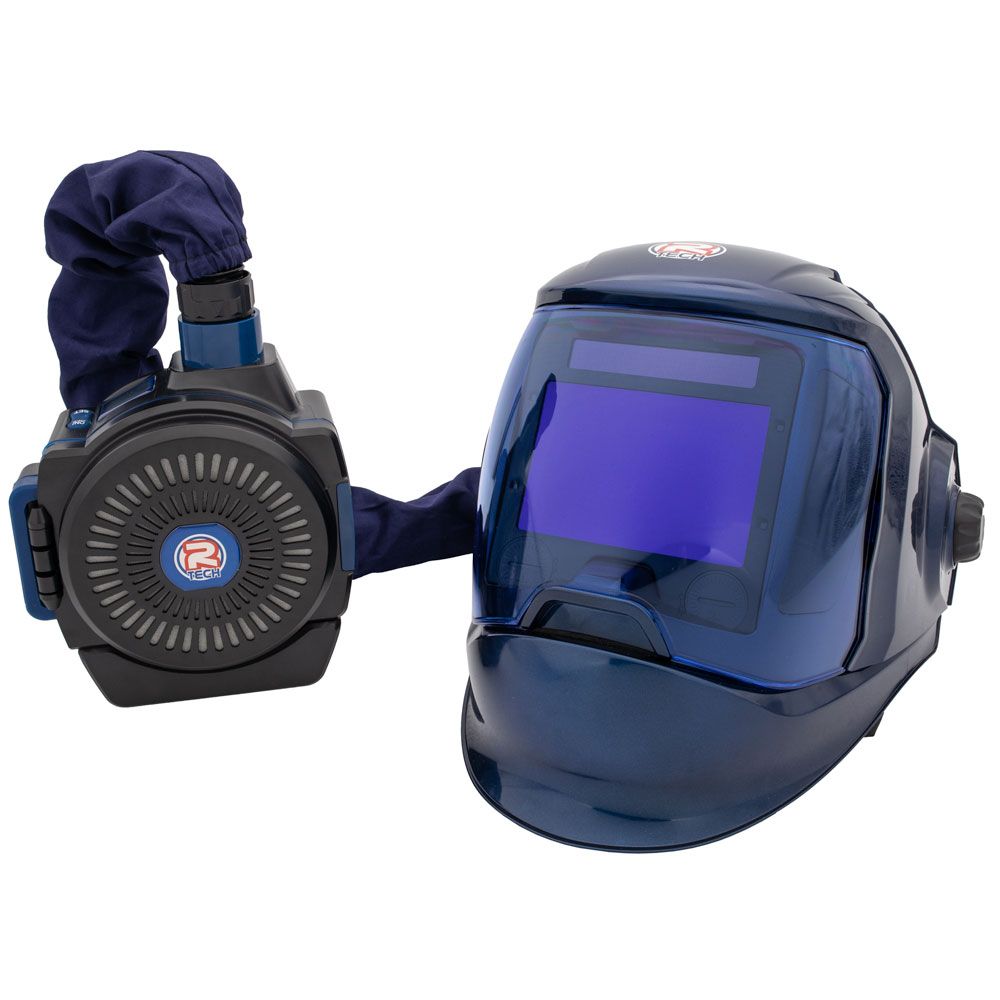

R-Tech Spiritus Air-Pro - Air Fed Welding Mask System

Details

The NEW R-Tech Spiritus Air-Pro air fed welding system offers outstanding True Colour Optics with a massive viewing area of 112x75mm, panoramic sideview lightweight flip up helmet, class leading TH3 filtration for the best protection and 8+hr battery runtime. Get protected from welding fumes without breaking the bank, sensibly priced consumables for lower running costs.

Speedmaster Pro HD™ Welding Helmet

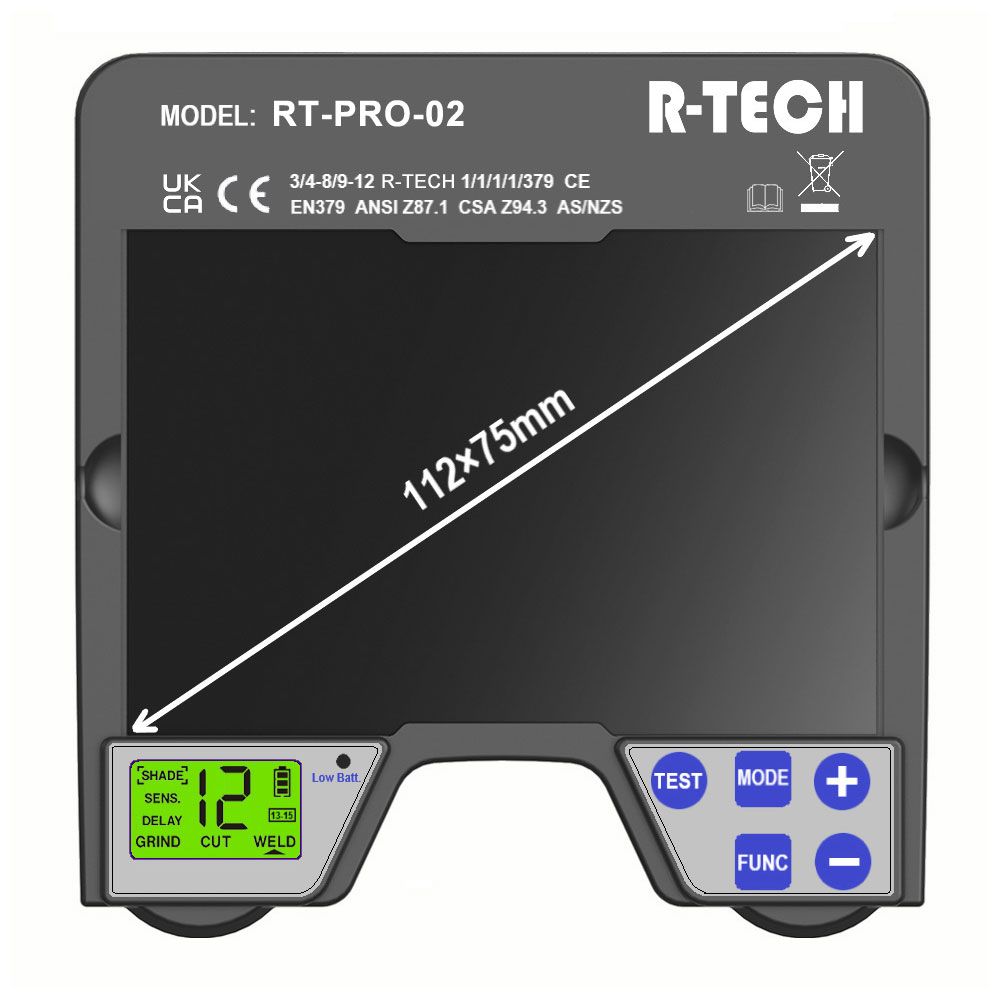

Massive ADF measuring 112mm x 75mm
True colour technology - See the weld perfectly
Best optical quality - ADF clarity of 1/1/1/1
Ultra sensitive - 4 sensors - 3A AC/DC TIG
Fast switching time 1/25,000th second

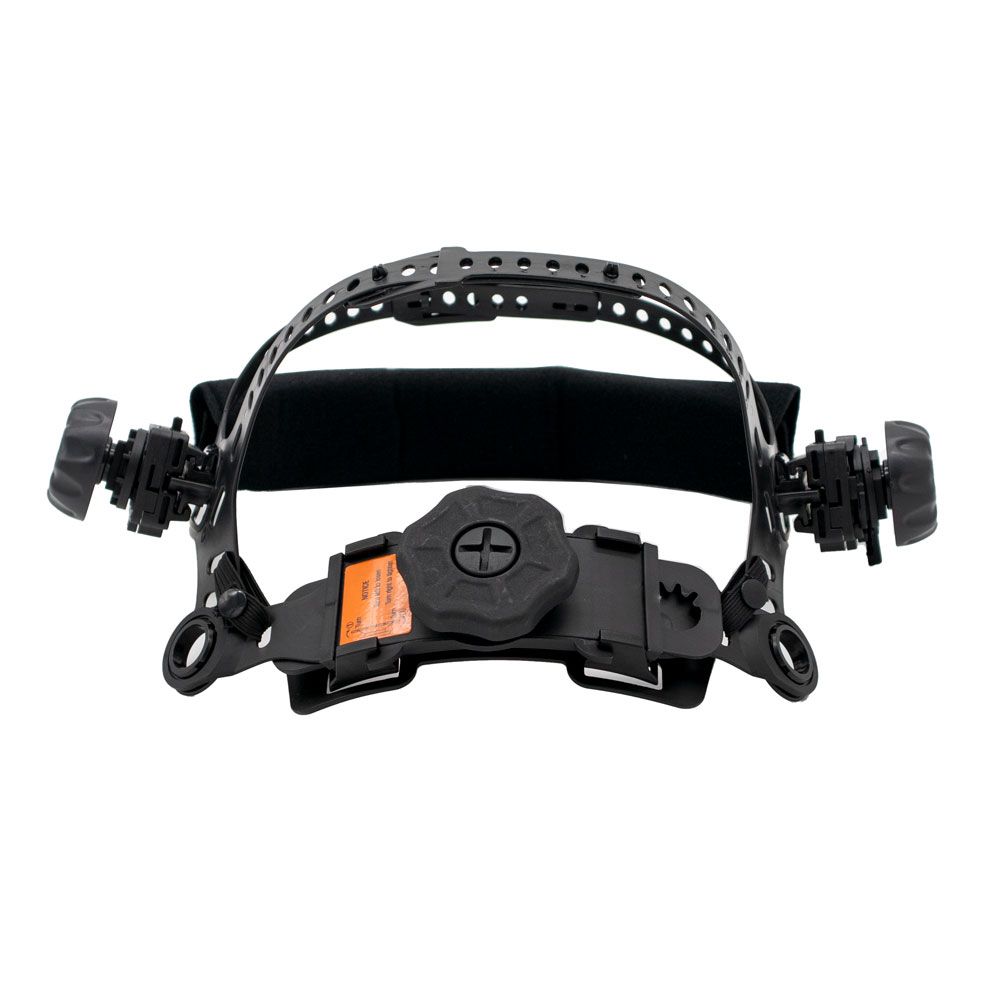

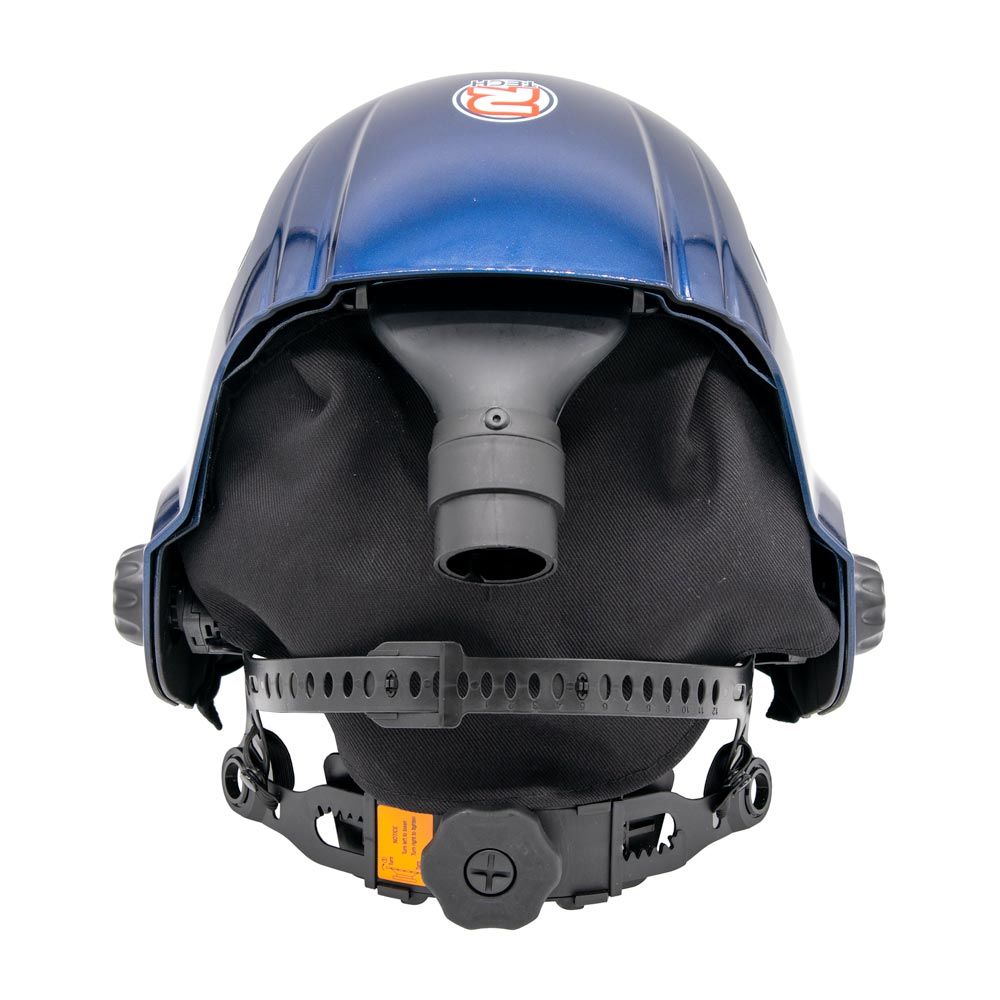

Ultimate comfort - Fully adjustable HD-07 headgear to suit all sizes
All day comfort - the HD-07 Headgear gives evenly distributed centre of gravity
Class leading shade range - DIN4 to DIN15
Precise digital controls - shade, sensitiivy, delay and weld/cut/grind mode.
Side view panels offering panoramic vision and better awareness (shade 5), can be blocked out with supplied blanking panels
Lightweight Flip up design with excellent field of vision
Auto power on with any movement
Auto power off after 10 minutes of no movement / arc

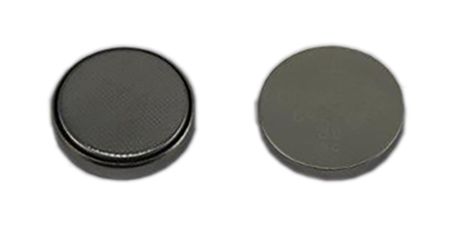

Solar cell with battery assist - 2 replaceable CR2450 lithium batteries
2 year warranty on ADF unit

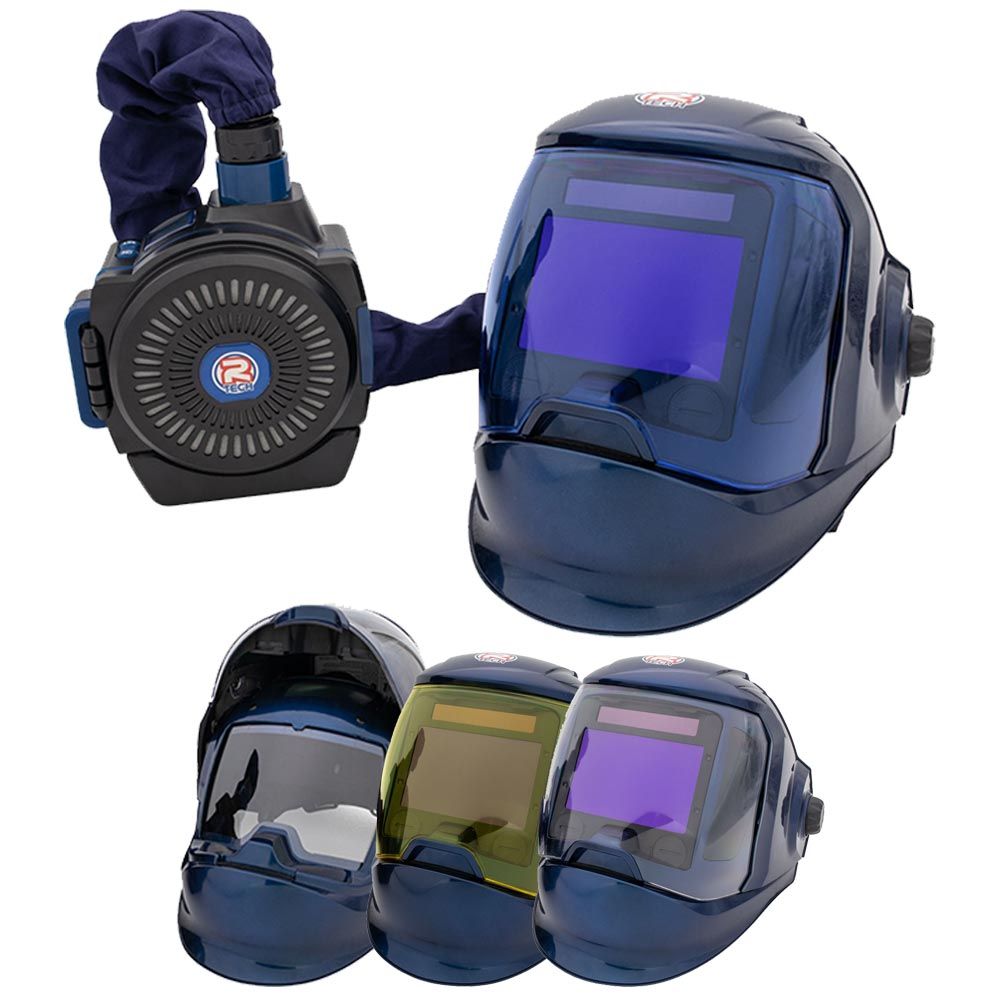

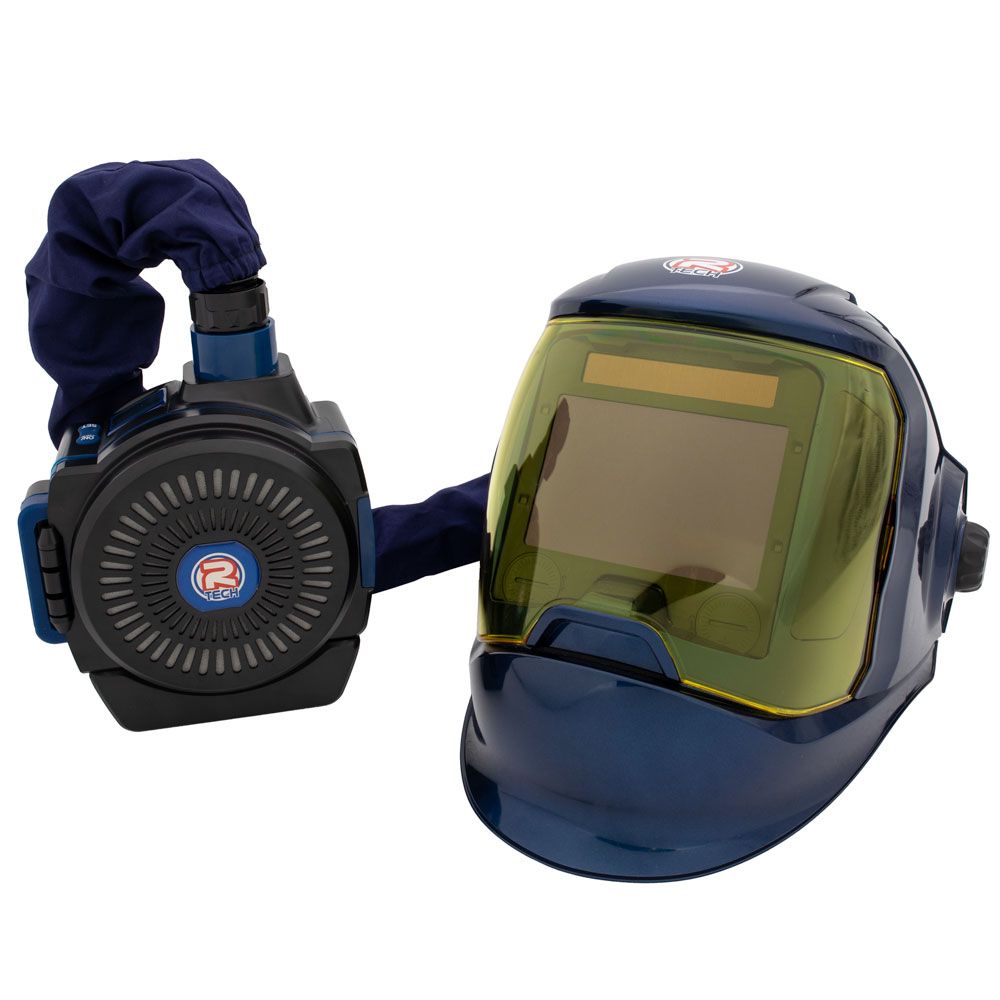

3 x Colour outer lenses available - Clear & Yellow included in package - Blue (optional)
Helmet weight - 857g

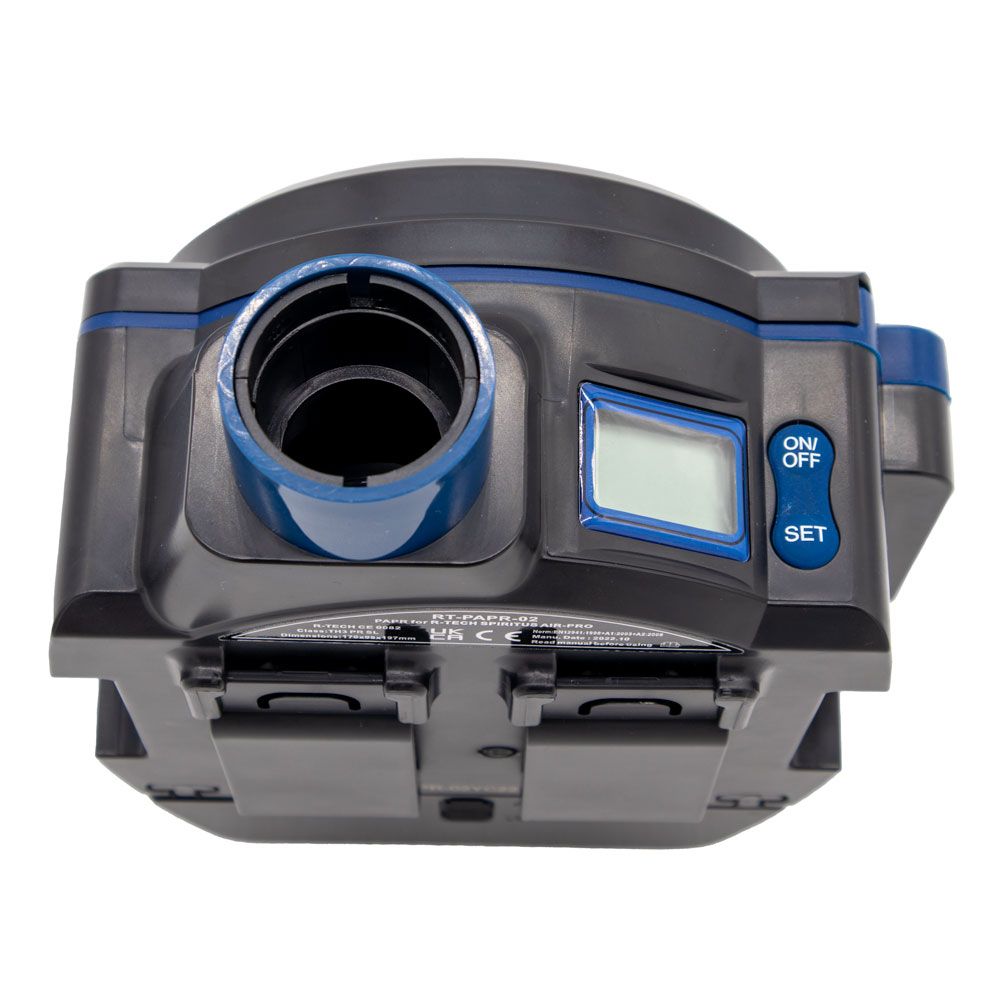

3 Speed Air Blower Unit

Class leading TH3 filtration
Use all day with an 8+hr battery run time. Heavy duty battery available for longer life if required.
Quick charge time, only 2-3 hours
Intelligent air supply adjusts power according to the condition of the air filter
Warning buzzer for low air flow
3 layers of filtration -

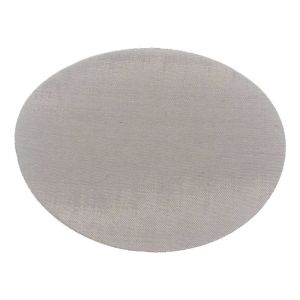

Stainless steel mesh (pre-filter)
Activated carbon filter (odour absorption)

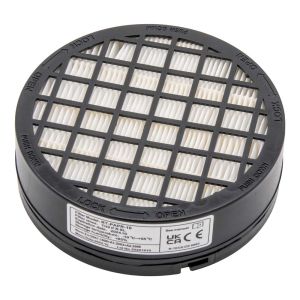

Main air filter (particles, welding fumes and other pollutants P3 filtration)
2 year warranty
Blower unit with filter & standard battery, weight - 1080g

Sensibly priced Consumables

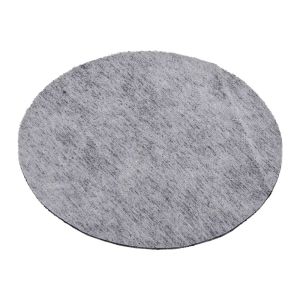

Main Air Filter P3 - £16.00
Active Carbon Filter - £2.45
Outer Lens - Clear, Blue, Yellow- £4.95 each
Inner ADF Lens - £1.50

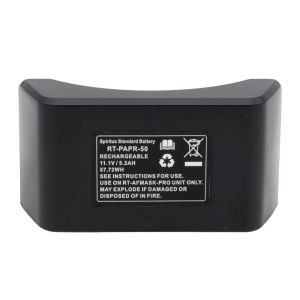

Standard Battery - £95.00
High Capacity Battery - £125.00

Tech Specs

Optical Class	1/1/1/1
Viewing Area	112 x 75mm (4.41" x 2.95")
Variable Shades	DIN 4 to DIN 15
Light State	DIN 3
Switch Time	1/25,000th second
Power supply	Solar cell with battery assist (2 x CR2450)
TIG Amp Rating	DC ≥ 3A, AC ≥ 3A
Air Flow	250/210/170 L/min
Charging Time	2-3 hours
Battery Cycles	>500
Alarm Mode	Buzzer Sound
Storage Humidty	<85%
Storage Temperature	-5°c ~ +55°c
Protection Class	TH3 P R SL
Standard	EN12941:1998+A1:2003+A2:2008
Battery Weight	350g
Air Hose size	800mm x 35mm
Blower Unit Weight	1080g inc battery & filter
Blower unit size	165x95x200mm
Helmet weight	857g

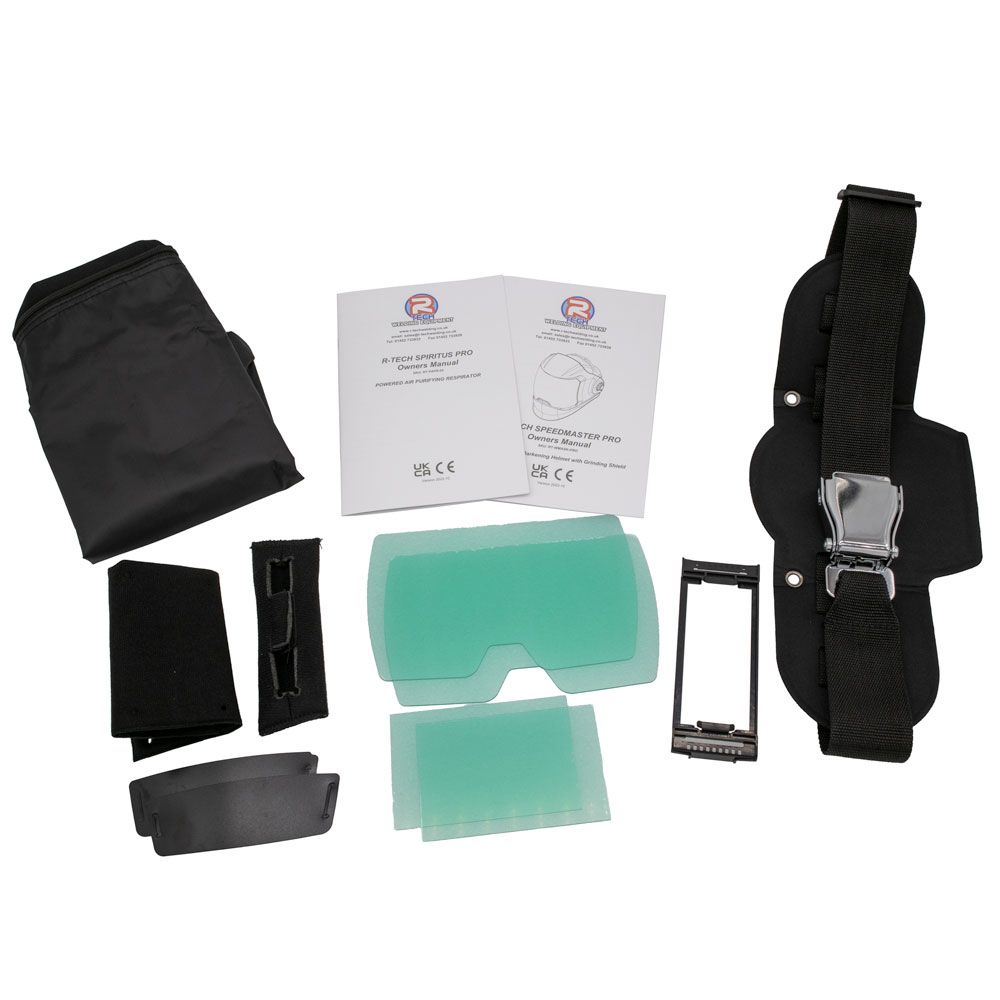

R-Tech Spiritus Air-Pro Package includes.

Speedmaster HD Pro Helmet with True Colour 112x75mm ADF shader unit

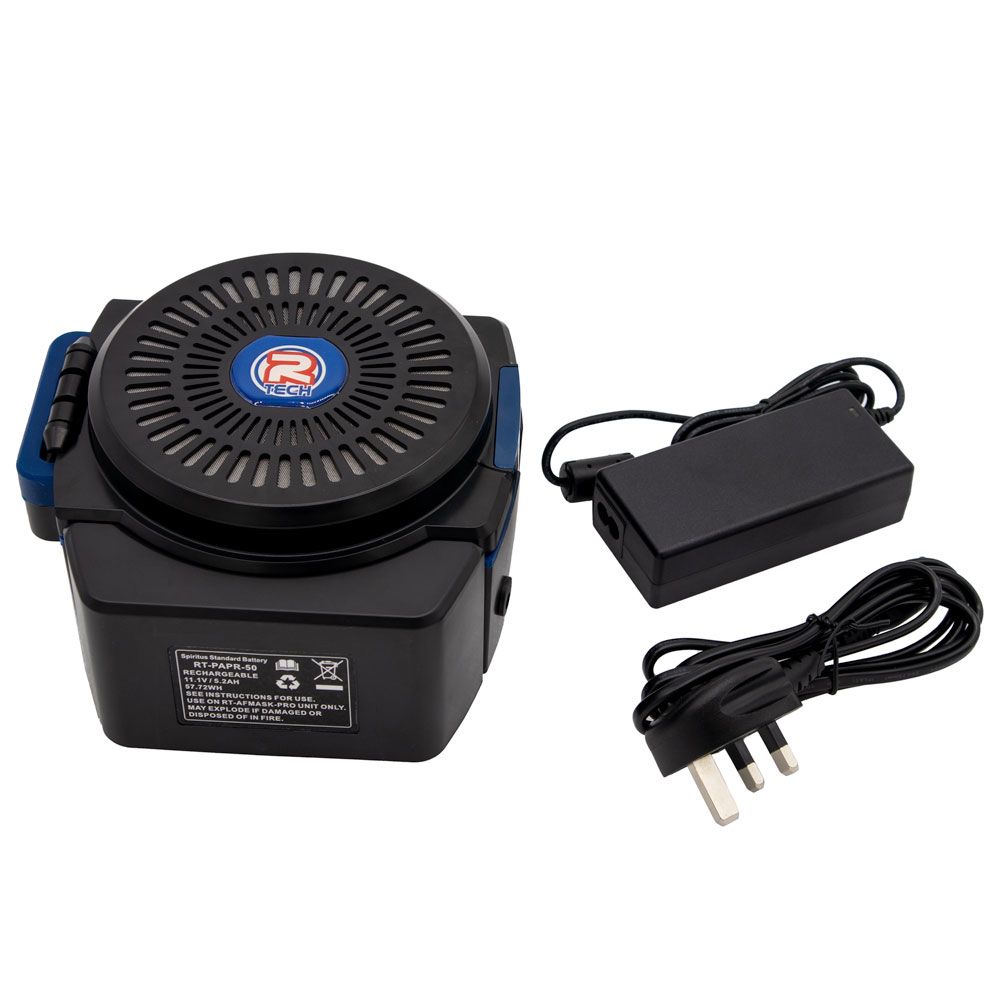

Air blower assy, quick fit hose, battery, charger, belt and waist pad
Clear & Yellow outer protective lenses
Carry bag

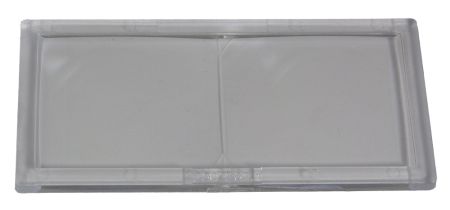

Adaptor for magnifying lenses
Spare ADF inner lens x2, outer shield lens x2, Headshield sweatband
Blanking shields for panoramic side view lens
Owners Manual

Videos

Video Reviews & Guides

Warranty

3 Year Warranty

The R-Tech Spiritus Air-Pro™ carries the following warranty:-

ADF Unit - 2 Year Warranty
Air blower assy - 2 Year Warranty
Lithium battery - 1 Year Warranty
Headgear /ratched assy - 6 Month Warranty
Connecting hose - 6 Month Warranty

The mask is easy to use and highly reliable but in the unlikely event that it requires attention, R-Tech promise to:-

Arrange collection via next working day UK courier [48hr offshore]
Quickly repair at our Technical and R&D centre in Gloucester
Deliver back via next working day UK courier [48hr offshore]
All costs covered by R-Tech - Yes, Collection, repair and delivery!

No questions, no hassle, just honest and reliable service - A true no quibble warranty

Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.

Other benefits of owning an R-Tech product include:-

Free friendly and knowledgeable technical advice via phone and email
Free setup help always available - We want you to get the best from your product

Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.

Downloads

R-Tech Speedmaster PRO HD™ Owners Manual V2023-03

Download

R-Tech Spiritus Air-Pro Owners Manual V2023-03

Download

Spiritus Air-Pro Mask TH3 Certificate

Download

Speedmaster PRO HD™ ADF Unit - CE and UKCA Certification

Download

Speedmaster PRO HD™ Helmet - CE and UKCA Certification

Download

Reviews

FAQ

What are the benefits of True Colour ADF technology?

On standard ADF's, the shade filter unit (ADF) give a dark green/blue hue to the view.

True colour technology offers a more realistic viewing experience by allowing more light wavelengths through, giving you a more natural colour view.

You get a crystal clear view of the weld puddle, once you have used a True Colour mask, you won't want to go back to the standard mask.
What does 1.1.1.1 clarity mean on my welding mask?

1.1.1.1 clarity is the highest level of clarity available, so no distortion in what you see through the ADF lens.

Some lesser quality ADF shader units can make the view blurry or out of focus.
Why is the price so competitive? It's such a high specification helmet!

We sell direct to you and have no dealer / diistributor middlemen.

So you get a better product for a better price!

All backed by our 2 year no quibble warranty and friendly customer service.

Still not convinced, checkout our reviews here - we strive to deliver the best product / price / service in the welding industry.
How long does an air-fed welding mask battery last?

The standard battery 5200mAH supplied with the R-Tech Spiritus Air-Pro will give 8+hrs on a full charge.

Charging time is about 2-3 hours.

One benefit of this mask is it allows on 'On machine charging' - So if you do forget to charge battery, you can plug charger unit it and carry on using mask.

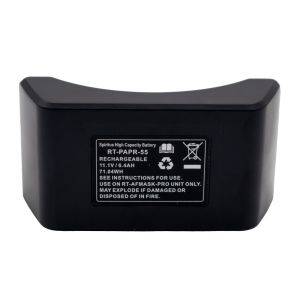

We do have a higher capacity battery 6200mAH battery that will give 10+hrs run time. Part Number: RT-PAPR-55

We also keep our replacement battery costs at a sensible price, so you can purchase a spare battery if you weld for long hours and have 1 on charge.
Why do I need an Air-Fed welding mask? Is it due to HSE law?

The HSE (Health & safety executive) advised that welding fumes can be cancerous.

Company's have to protect its workers using the following controls.

LEV - Local exaust fume ventilation
RPE - Respiratory protective equipment (Air-Fed Welding Mask)

From HSE Website

Welding fume: Protect your workers: HSE Overview

By law you must protect your workers by controlling the health risks from welding fume.
This applies to specialist welders and workers who do some welding, no matter how small the amount.

All welding fumes can cause lung cancer, so you must put controls in place.
HSE has issued a safety alert about the health risks of welding fume.
Welding fume can also cause asthma and many other health conditions.

You can control risks to health from welding fumes by:

Local exhaust ventilation (LEV)
Using respiratory protective equipment (RPE) and personal protective equipment (PPE)
Welding fume is subject to the Control of Substances Hazardous to Health (COSHH) Regulations.
What does the 3 year warranty on air-fed mask cover ?
Our R-Tech 3 year collect and return warranty on the Spiritus Air-Pro Mask offers the following.

Once we have confirmed you have a fault with welding mask, we will do the following.
- Arrange collection via next working day UK courier (48hr offshore)
- Quickly repair the machine at our Technical and R&D centre in Gloucester
- Deliver back via next working day UK courier (48hr offshore)
- All costs covered by R-Tech - Yes, Collection, repair and delivery!
No questions, no hassle, just honest and reliable service - A true no quibble warranty

Note: Lithium battery is covered by a 1 year warranty - 2 year warranty on ADF filter unit and air blower assy.
How often should I replace my air-fed welding mask filter?

The main air filter should be replaced after 180 hours of use for optimum protection.

If you are working in a very dusty enviroment, you may need to replace filter sooner.

The air blower assy automatically senses air flow pressure due to condition of filter and adjusts accordingly.

If the alarm buzzers sounds due to poor air flow, check filters and replace.
Why should I buy a Spritius Air-fed mask from R-Tech?

R-Tech provide you with high quality welding equipment with easy useable features, at exceptional value with un-rivalled direct customer support.

All our machines are robustly built using the latest ultra reliable IGBT inverter power components sourced from Siemens Infineon in Germany & USA.

We give a 3 year collect and return warranty on Spiritus Masks, a true no quibble warranty. We pay for and arrange collection, repair and return to you. General turn-around is 3-4 days, Can you current supplier offer such fast service?

We also offer a free loan machine service to get you back welding quickly and if arranged before 3pm, this can be delivered next working day for UK mainland.

10 year duty of care on spare parts - We keep a large stock of spares in our Gloucester premises.

We build our machines in a modular basis which ensures any future repair bills are kept to a minimum, unlike some manufacturers who build the internals of their machines on just one or two P.C.B's. We ensure ours are designed to have internal components easily replaced ensuring cost effective repairs.
