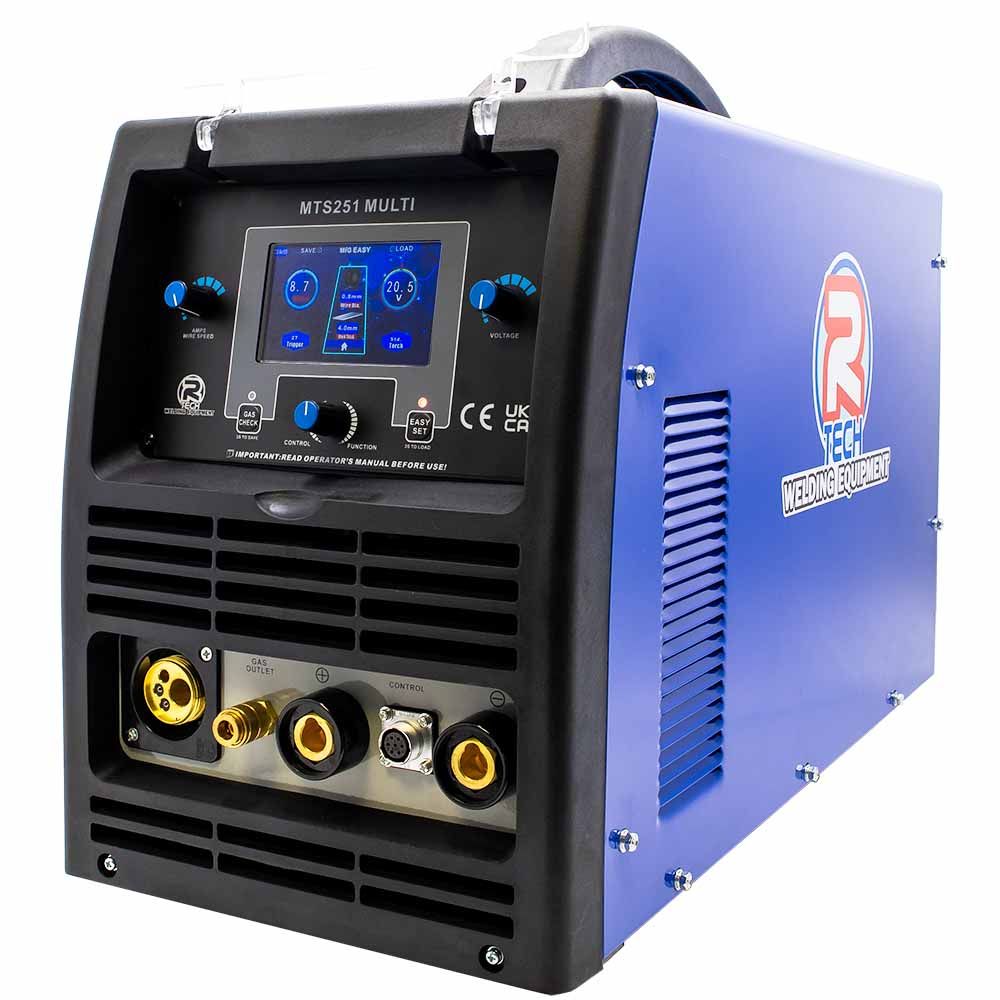

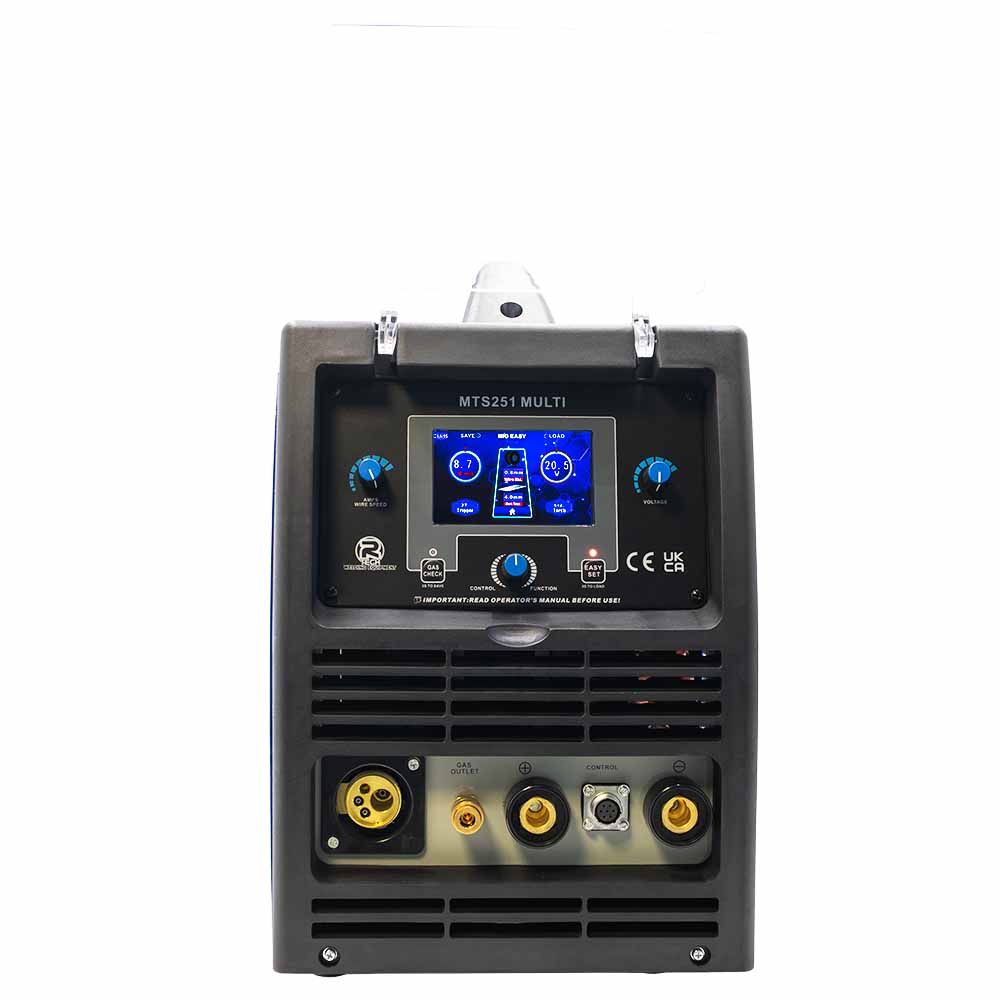

R-Tech MTS251 TFT Multi - MIG - DC TIG - MMA Welder 240V

5/5

CODE

MTS251TFT

In stock

0% Finance Available - Select pay by finance in checkout - Instant decision

Order in for UK Mainland delivery on 30/04/2024

Optional Trolley

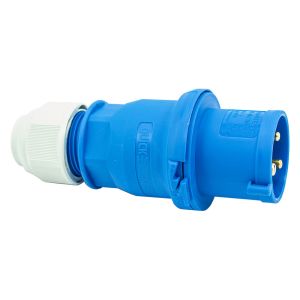

Mains Plug

£1,134.00 £945.00

Qty

Order by 3pm:  
Next-day delivery

R-Tech MTS251 TFT Multi - MIG - DC TIG - MMA Welder 240V

Skip to the end of the images gallery

Skip to the beginning of the images gallery

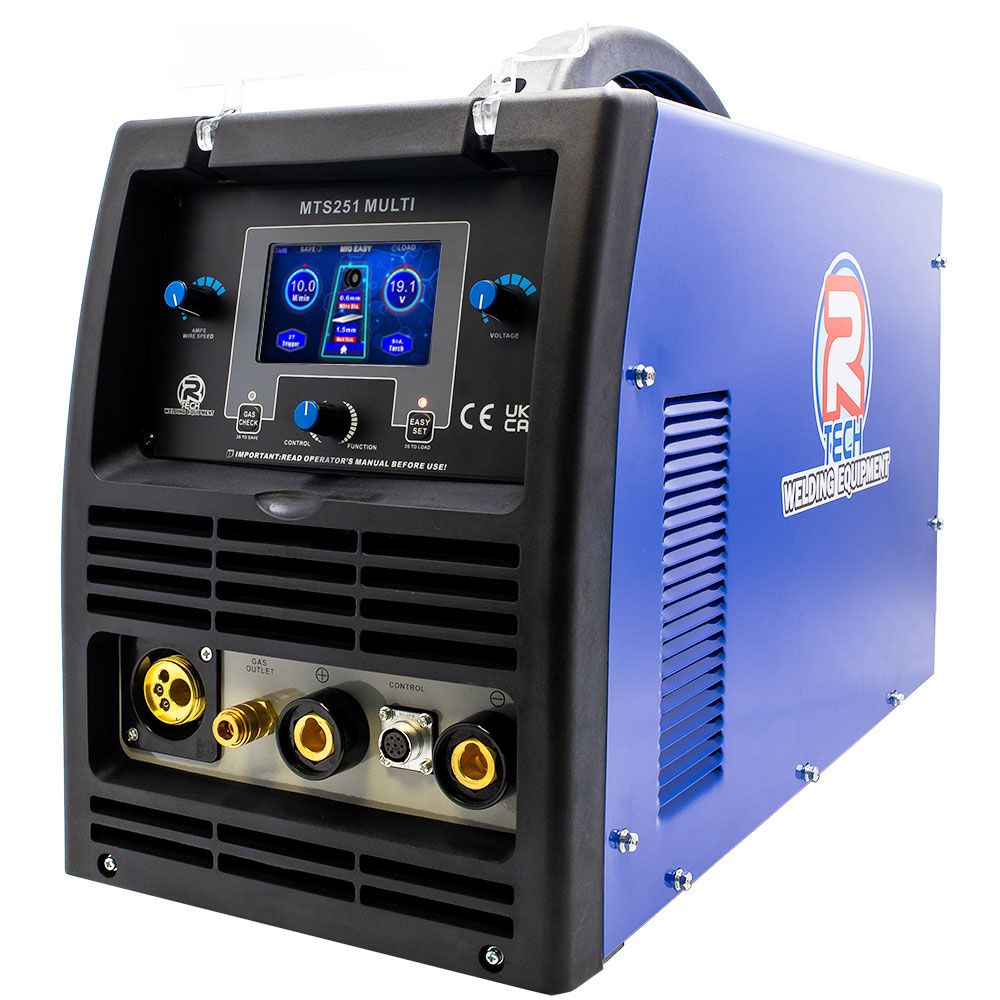

R-Tech MTS251 TFT Multi - MIG - DC TIG - MMA Welder 240V

9mm Max Weld

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 22mm

Weld Steel

This will weld ALL steels including stainless steel

Aluminium

You can weld aluminium with the optional spool on gun, you will need PURE argon gas.

Spool Gun

Optional spool gun makes MIG welding aluminium easy, wire reel is held on torch.

Details

Industry meets versatility with the MTS251. Featuring Easy Setup MIG, TIG & MMA modes, 15KG spool capacity and 4 roll wire feed for ultra smooth and reliable operation. Switch across to DC TIG with the touch of a button for a fully featured experience and HF start on those tricky to reach areas.

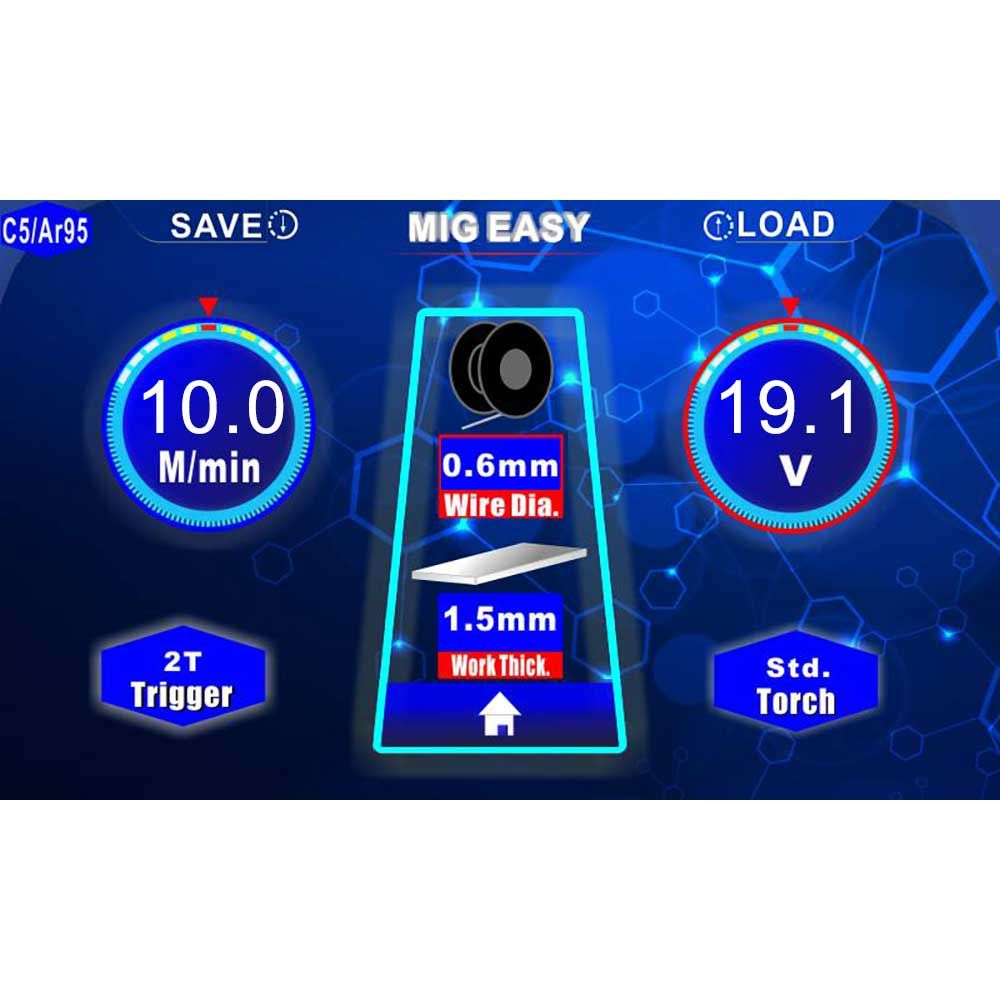

Intelligent Easy Mode

Professional weld settings built in - Get great results easily

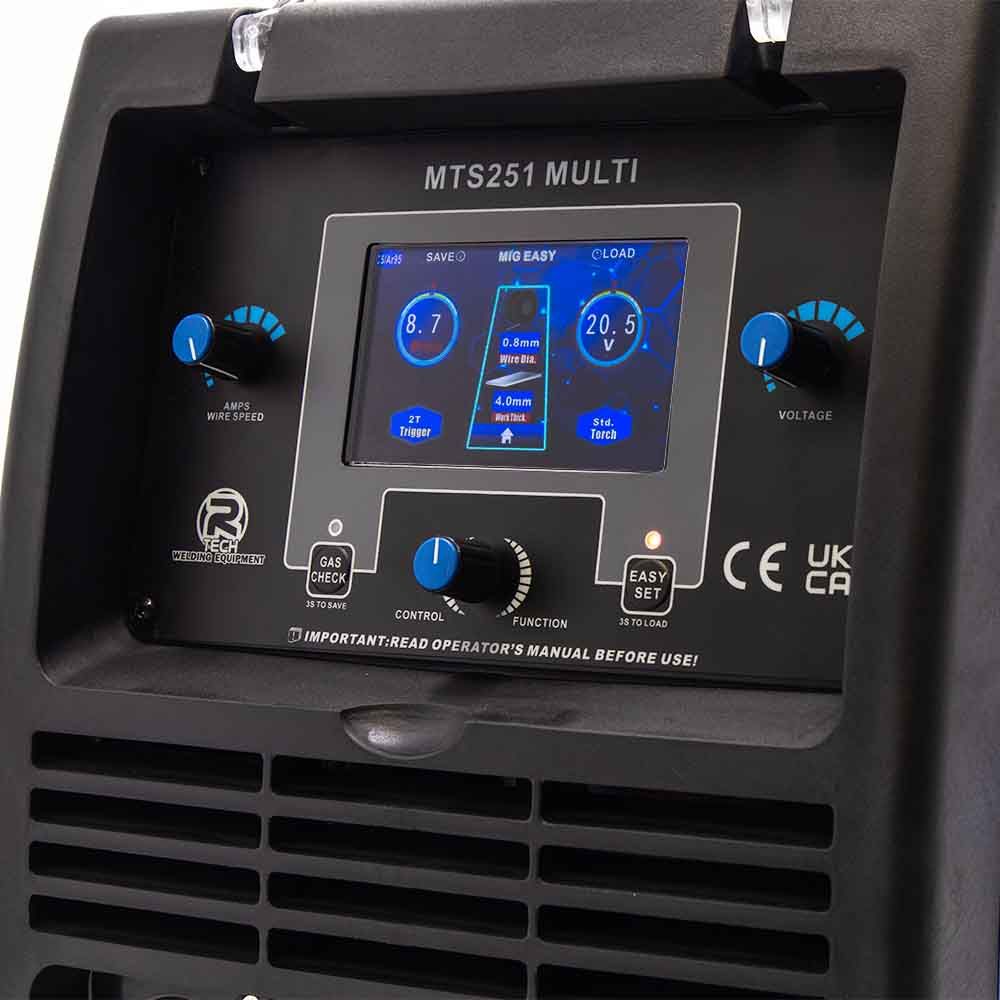

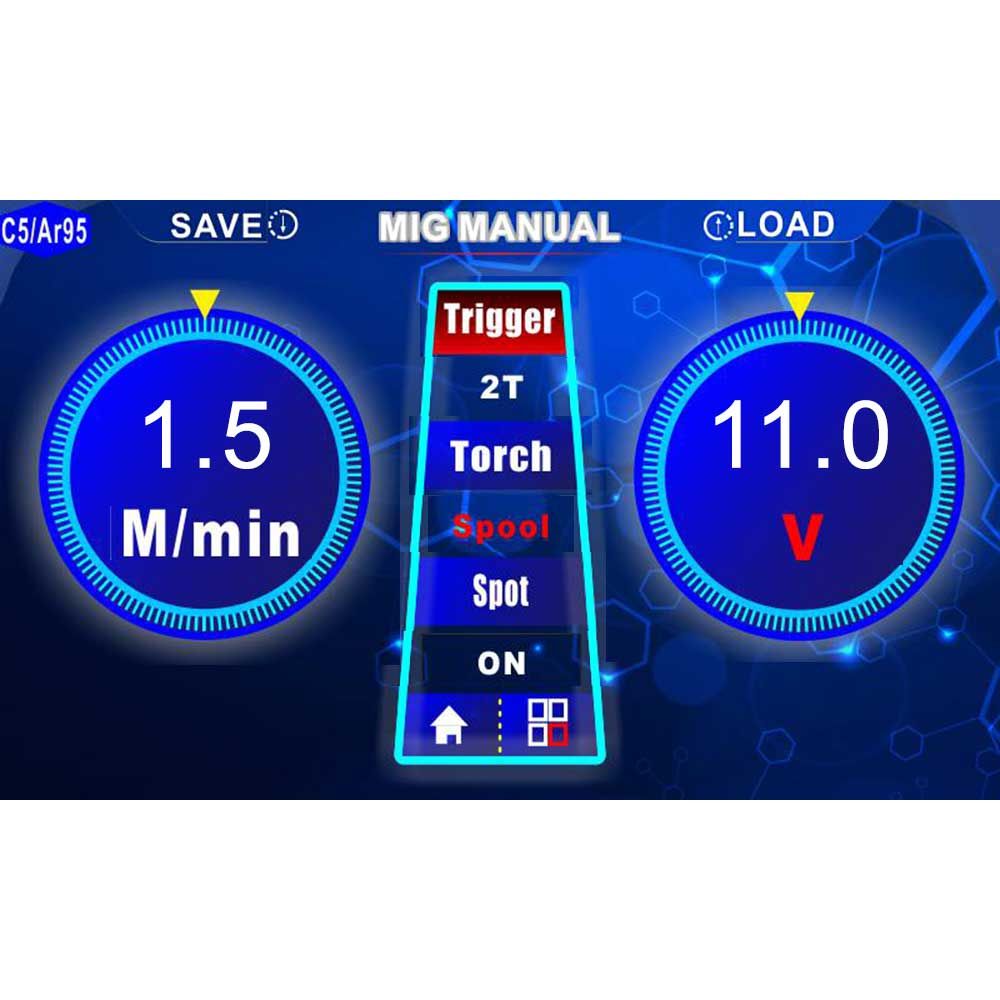

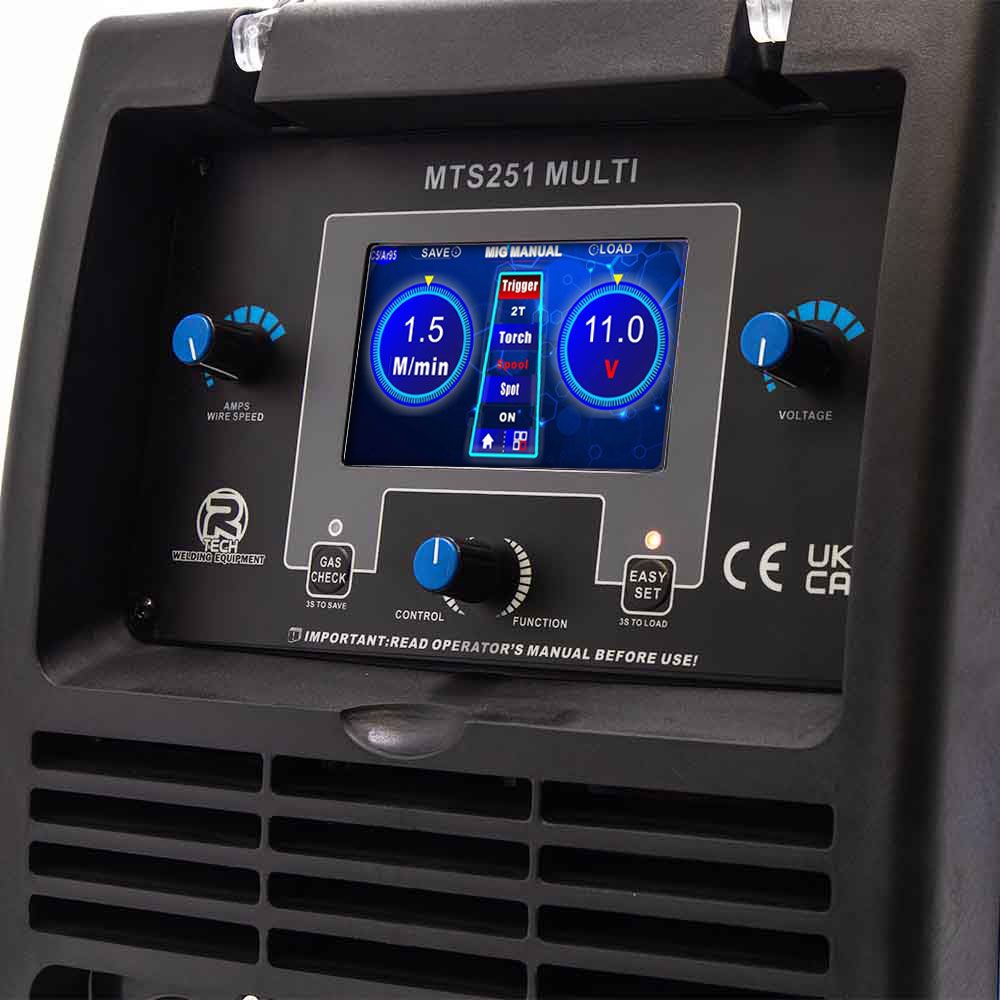

Large HD Colour Screen
Simple to use - Easy navigation - no complicated menus - All settings on single screen

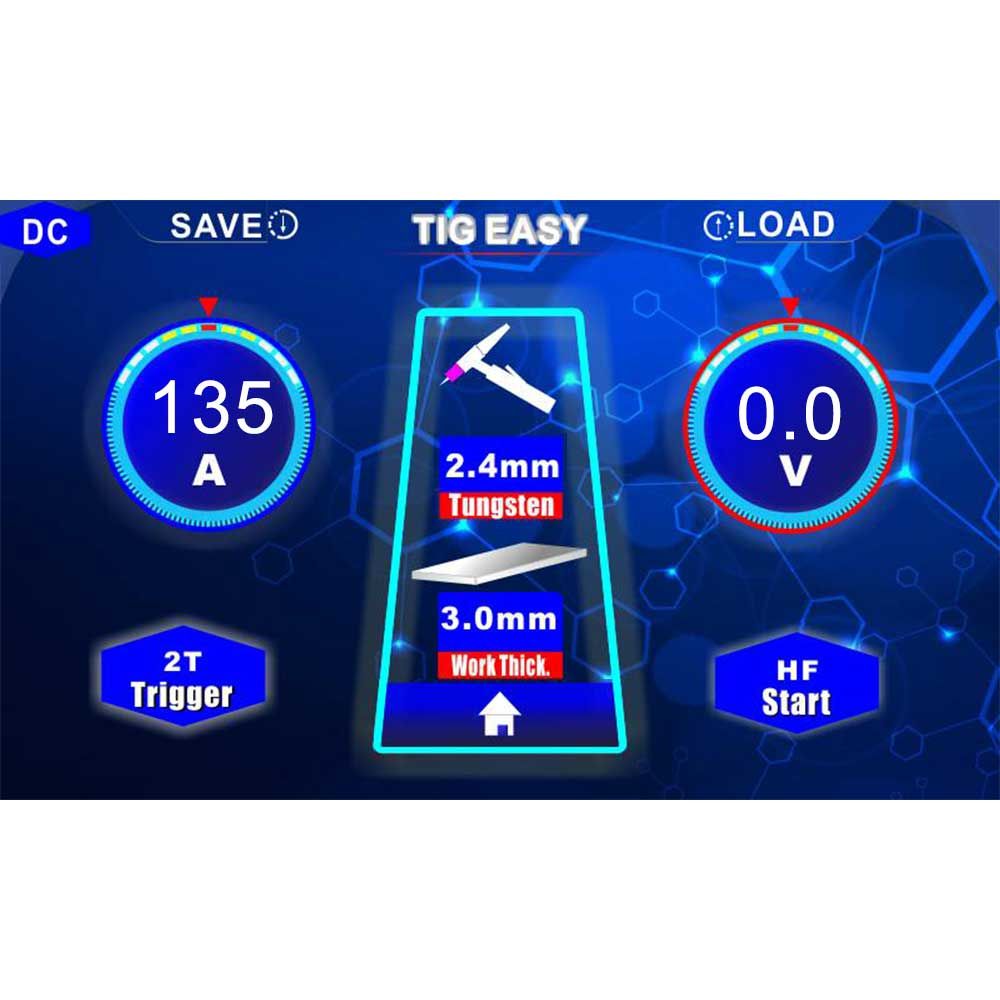

Easy setup - Professional weld settings built in - MIG , DC TIG and MMA
Over 90 built in programs, set up by our R-Tech experts

Professional Mode MIG

250 Amp MIG Welder
Full control of every weld parameter you could ever need
Pre-flow Gas, Start Amps, Slope up time, Main amps, Slope down time, End amps and post flow gas

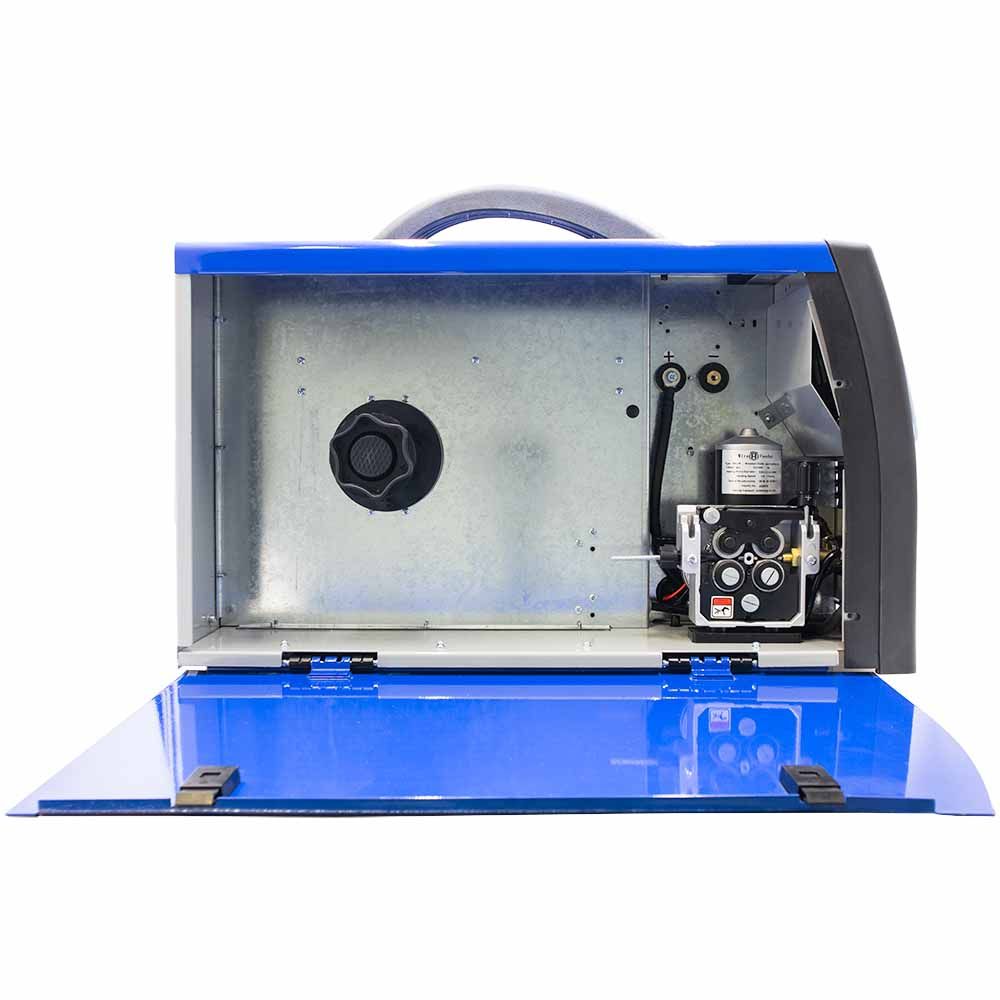

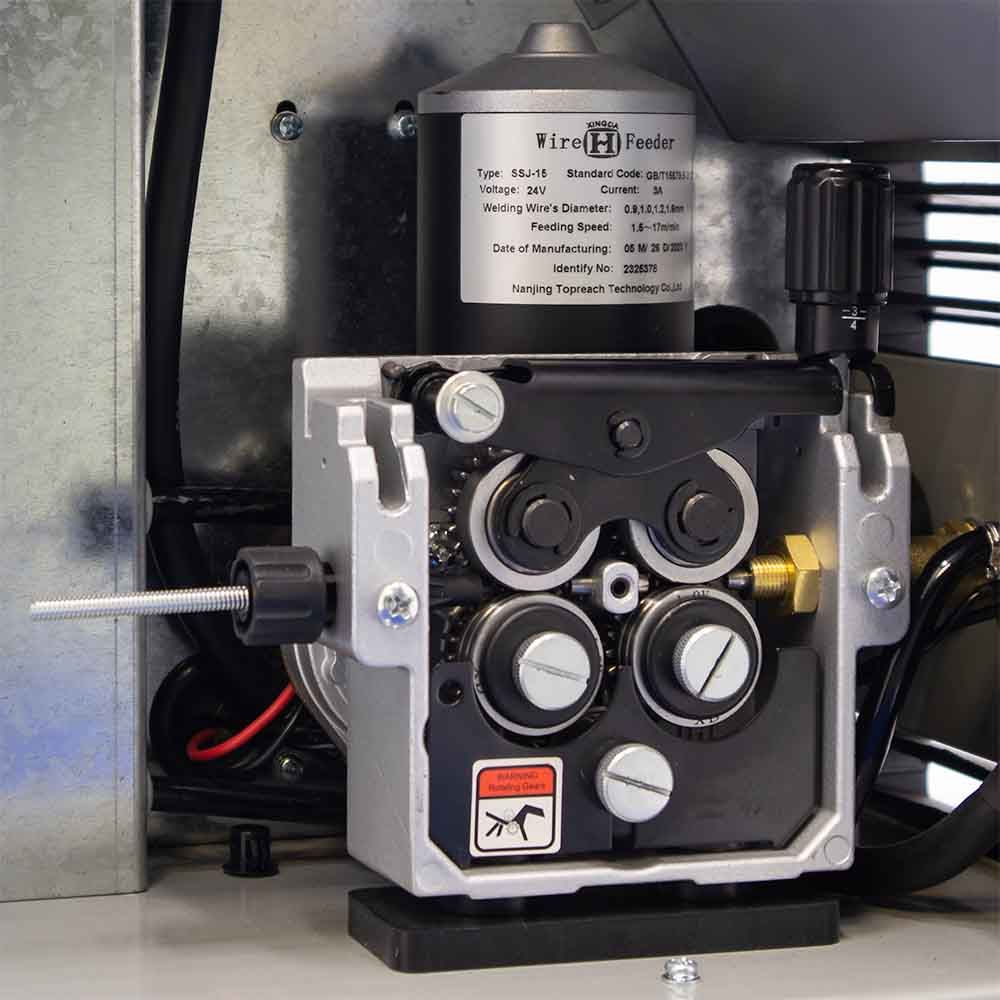

Metal, four roller wire feed assy - Provides consistent weld bead
Binzel 3M MB25AK MIG torch - What is this?Euro torches can be easily removed and replaced - they give a more consistent wire feed than permanently fitted torches as found on many DIY machines
Suitable for gasless, flux cored wire
Provides very smooth low splatter welds on all steels and aluminium due to its inverter technology
Takes 0.6, 0.8 and 1.0mm wire
Weld from as low as 30 Amps in MIG mode
5 & 15kg Reel Capacity (MIG Wire)

Professional Mode TIG

250 Amp DC TIG Welder
High frequency (HF) start for improved arc starting on TIG

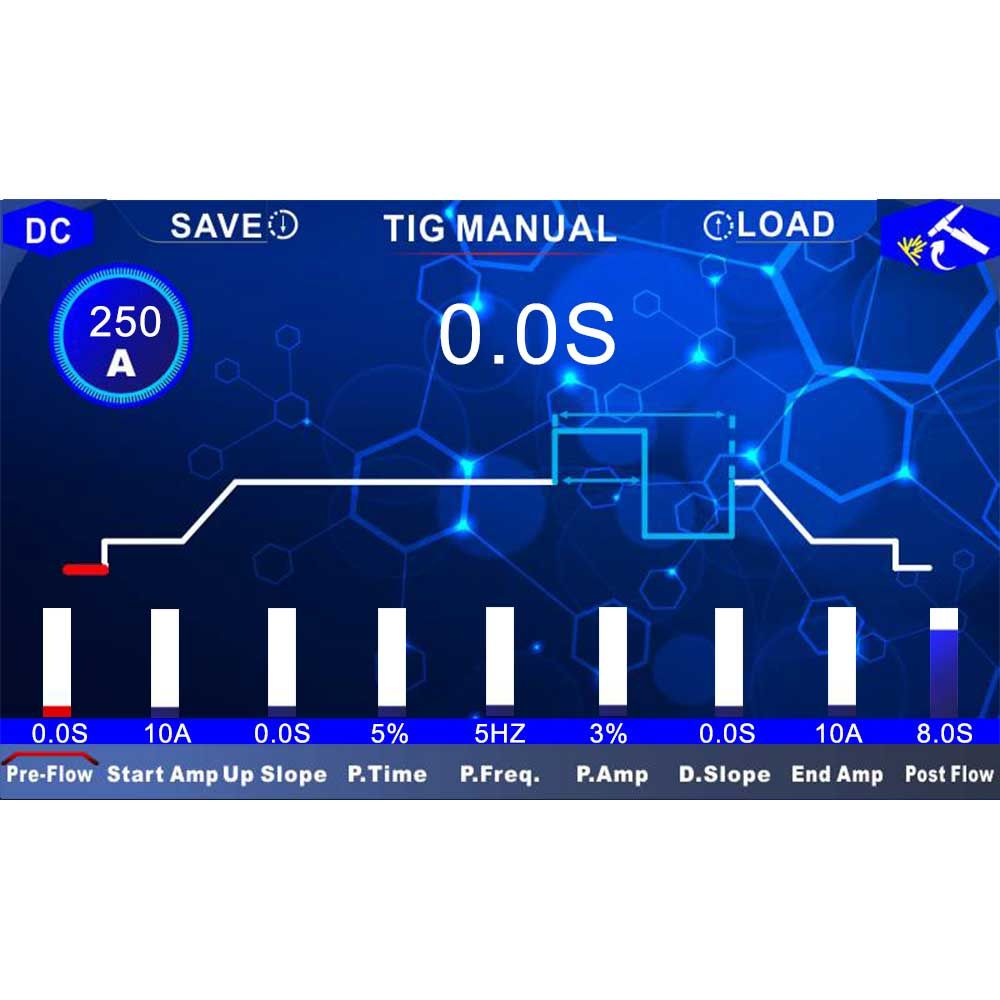

Full control of every weld parameter you could ever need
Pre-flow Gas, Start Amps, Slope up time, Main amps, Slope down time, End amps and post flow gas
2 Start modes - HF Fast start, LIFT

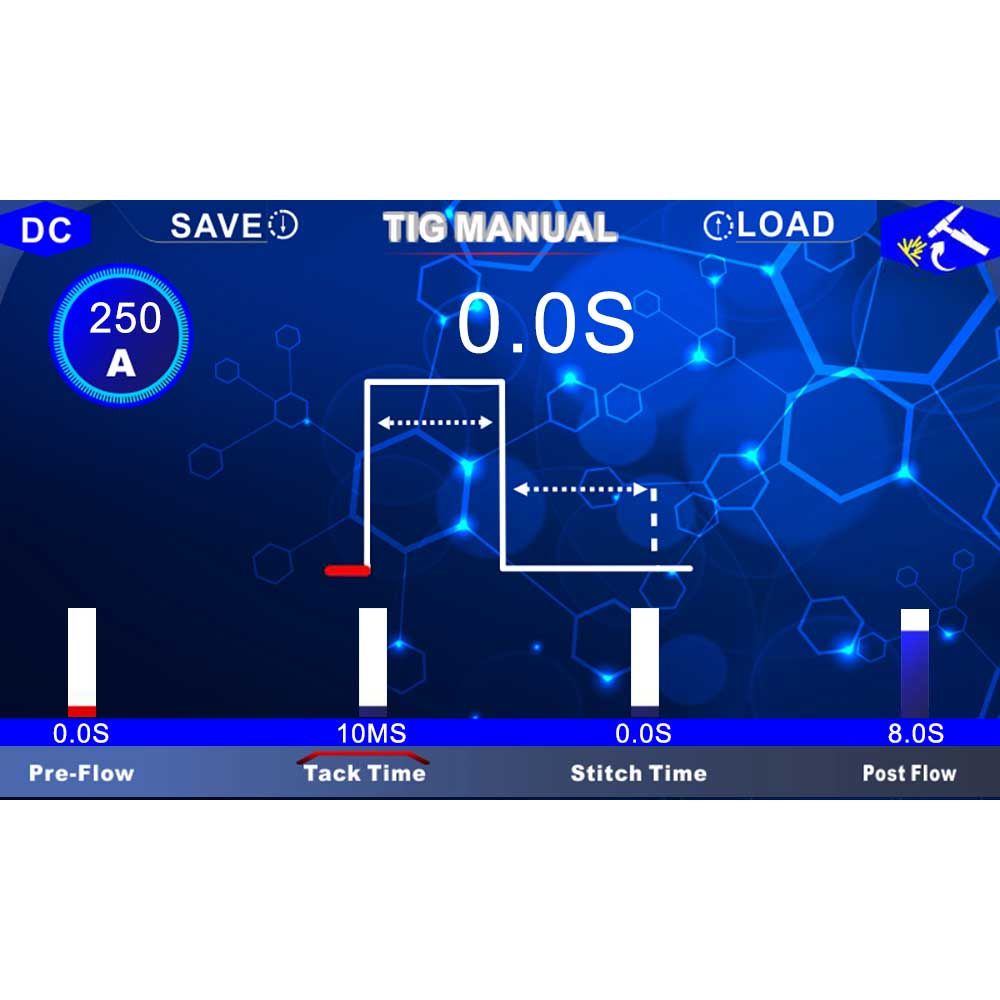

Spot and tack weld features with stitch function
True 4-way trigger latching with control of pre/post flow gas, initial/final amps, slope up/down
4TS Trigger mode - Ideal for pipe welding, switch from start to main amps by tapping the torch switch
Weld from as low as 10A in TIG mode

Professional Mode MMA

200 Amp Arc/MMA Welder
Full control of every weld parameter
Arc force %, Arc force time, Arc Force
Anti stick technology
Cellulsoic 6011 rods supported.

Further inormation

32A plug required
5 year collect and return UK warranty - What is this?in the unlikely event of machine failure, R-Tech will pay to collect, repair and return the Mig welder to you quickly- No quibble warranty

Want to try before you buy? Book a demonstration at our Tewkesbury HQ - Available 5 days per week 9am-12pm and 2pm-4pm.

Tech Specs

MIG Output	30 - 250A @ 35% Duty cycle
MMA Output	10 - 200A @ 35% Duty cycle
TIG DC Output	10 - 250A @ 35% Duty cycle
Memory Stores	20
TIG Start	Yes - HF start
TIG Up/Down Slope	Yes - 0 - 10 seconds
MIG / TIG Post flow	Yes - 0 - 10 seconds
Trigger latch	Yes 2T, 4T, 4TS, 2T+F, 4T+F
MMA arc force	Yes - 0 - 100%
Metal feed assy	Yes - 4 roller wire feed
Foot pedal option TIG	Yes- Remote control of TIG amperage
MIG wire size	0.6mm, 0.8mm, 1.0mm
Rollers suppiled	0.6mm, 0.8mm, 1.0mm
Max wire reel size	15KG
Gasless MIG wire	Yes - easy reversal of polarity for gasless wire
Weight	45KG
Dimensions	470H x 280W x 640L mm
Insulation class	IP21S
Cooling fan	Yes - Cooling fan with thermostatic protection
Input / fuse	240V 32A
Spool Mig Gun option	Yes - weld aluminium (use argon gas)
Max Thickness Steel	9MM Single Pass
Max Thickness Steel	19MM Multiple Passes

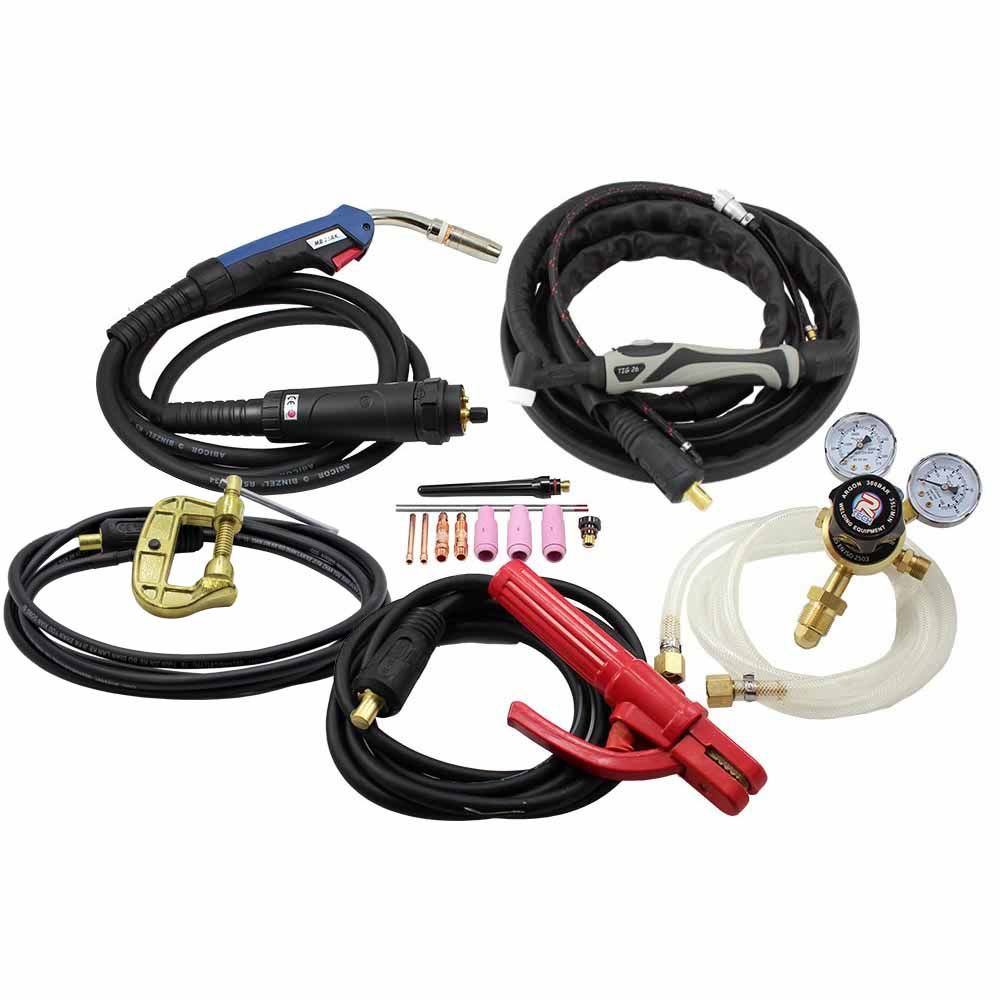

Package Includes, R-Tech MTS251TFT MIG-TIG-ARC Welder, Binzel 3M MB25AK Air Cooled MIG Torch, 4M WP26 Tig Torch, Earth Lead, Gas Hose, Mains Cable, Gas Regulator, Owners Manual and torch consumables kit
5 year collect and return UK warranty - What is this?in the unlikely event of machine failure, R-Tech will pay to collect, repair and return the Mig welder to you quickly- No quibble warranty
Generator Friendly - Generator must be minimum of 10KVA 240V and fitted with AVR (auto voltage regulation)

Warranty

The R-Tech MTS251 carries the following warranty:-

MTS251 - 5 Year Warranty
Regulator - 1 Year Warranty
R-Tech TIG Torches - 3 Month Warranty
Binzel MIG Torches - 3 Month Warranty
Earth and Electrode Leads - 3 Month Warranty

Optional Water Cooler - 3 Year Warranty
Optional Spool Gun - 1 Year Warranty
Optional FP7 Foot Pedal - 1 Year Warranty

R-Tech machines are designed to be robust, easy to use and highly reliable but in the unlikely event that your welder or plasma cutter requires attention, R-Tech promise to:-

Arrange collection via next working day UK courier [48hr offshore]
Quickly repair the machine at our Technical and R&D centre in Gloucester
Deliver back via next working day UK courier [48hr offshore]
All costs covered by R-Tech - Yes, Collection, repair and delivery!

No questions, no hassle, just honest and reliable service - A true no quibble warranty

Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.

Other benefits of owning an R-Tech machine include:-

Free friendly and knowledgeable technical advice via phone and email
Free machine setup help always available - We want you to get the best from your machine
Ten year Duty-of-Care on all our machines, giving you piece of mind that spare parts will be available if needed
Video's to show how to use and setup your R-Tech machine.
2 year extended warranties available at a minimal cost.

Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.
