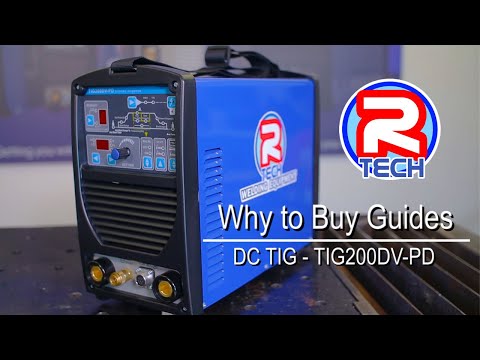

R-Tech TIG Welder DC Digital Pulse 200 Amp 110/240v
- Built with class leading Siemens IGBT's - Not inferior Mosfets
- See our TIG welders in action - View our how to TIG Weld videos
- Have a question about TIG welding? See our TIG Welding FAQs
- Mircostart HF - improved arc starting and less interference - What is this?Ensures an ultra-clean start to your welds
- Digital control panel - designed for easy use
- Full 4-way functioning with control of pre/post flow gas, initial/final amps, slope up/down
- Low starting amperage, Ideal for thin and thick materials
- Highly efficient Inverter technology - lightweight and power efficient
- 9 Memory store function - Easily program your jobs into memory
- Amperage Range TIG: 5 to 200 Amps 240V, 5 to 125 Amps 110V
- Amperage Range MMA: 5 to 160 Amps (MMA) 240V, 5 to 100 Amps 110V
- Suitable plug required - see related products below
- 5 year collect and return UK warranty - What is this?in the unlikely event of machine failure, R-Tech will pay to collect, repair and return the Tig welder to you quickly- No quibble warranty
- Want to try before you buy? Book a demonstration at our Tewkesbury HQ - Available 5 days per week 9am-12pm and 2pm-4pm.
Amperage range 240V | DC TIG 5-200A, MMA 5-160A | ||
---|---|---|---|
Amperage range 110V | DC TIG 5-125A, MMA 5-100A | ||
Duty cycle 110/240V | TIG 125/200A 60% - MMA 100/160A 60% | ||
Input voltage/amps | 240v 16A - 110V 32A No load voltage 70v | ||
LED Display | Shows preset & actual amperage | ||
Pulse amperage | 5 - 95 % | ||
Pulse width | 5 - 95 % | ||
Pulse frequency | 0.5 - 500 Hz | ||
Slope up | 0 - 10 seconds | ||
Slope down | 0 - 10 seconds | ||
Post flow gas | 0 - 25 seconds | ||
Pre flow gas | 0 - 25 seconds - Ideal for stainless purging | ||
HF Start | Yes | ||
2T/4T Trigger | Yes | ||
Memory store | Yes - 9 | ||
Start Amps | 5 - 150% of main amps | ||
End Amps | 5 - 95% of main amps | ||
Lift Start | Yes | ||
Gross weight | 18KG | ||
Dimensions | 425 x 195 x 310 | ||
Foot pedal option | Yes | ||
Insulation class | IP21S | ||
Cooling fan | Yes - Cooling fan with thermostatic protection | ||
Max Thickness | 7MM Single Pass | ||
Max Thickness Steel | 16MM Multiple Passes |
- Digital control panel - designed for easy use
- Control all parameters from a single button
- Easy start and finish set-up - 9 Memory store function - Easily program your jobs into memory
- 5 year collect and return UK warranty - What is this?in the unlikely event of machine failure, R-Tech will pay to collect, repair and return the Tig welder to you quickly- No quibble warranty
- Generator Friendly - Generator must be minimum of 6.0KVA 240V and fitted with AVR (auto voltage regulation)
- Package Includes, R-Tech TiG200DV-DP DC Tig Welder,4M WP26 Air Cooled Tig Torch, Earth Lead, MMA Lead, Gas Hose, Mains Cable, Argon Regulator, Owners Manual, Torch Consumables Kit including Tungstens
The R-Tech TIG200DV-PD carries the following warranty:-
- TIG200DV-PD - 5 Year Warranty
- Regulator - 1 Year Warranty
- R-Tech TIG Torches - 3 Month Warranty
- Earth and Electrode Leads - 3 Month Warranty
- FP7 Foot Pedal - 1 Year Warranty
- Optional Water Cooler - 3 Year Warranty
R-Tech machines are designed to be robust, easy to use and highly reliable but in the unlikely event that your welder or plasma cutter requires attention, R-Tech promise to:-
- Arrange collection via next working day UK courier [48hr offshore]
- Quickly repair the machine at our Technical and R&D centre in Gloucester
- Deliver back via next working day UK courier [48hr offshore]
- All costs covered by R-Tech - Yes, Collection, repair and delivery!
No questions, no hassle, just honest and reliable service - A true no quibble warranty
Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.
Other benefits of owning an R-Tech machine include:-
- Free friendly and knowledgeable technical advice via phone and email
- Free machine setup help always available - We want you to get the best from your machine
- Ten year Duty-of-Care on all our machines, giving you piece of mind that spare parts will be available if needed
- Video's to show how to use and setup your R-Tech machine.
- 2 year extended warranties available at a minimal cost.
Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.
-
How Long Will It Take To Get My Machine?
All orders for R-Tech welding equipment received by 3PM will normally be despatched the same day for next day delivery to the UK mainland, UK Isles may take 48hrs.
Once your order has been placed, will will email you an order confirmation, then a despatch confirmation with tracking number so you can track your order. We mainly use DHL who will often provide a 1 hour delivery time to you.
Simply order on-line or by phone on 01452 733933.
If you require any advice on which welding machine will best suit your requirements, please give us a all and one of our friendly sales/technical team will answer your questions
-
What Is An Inverter Welder And What Are The Benefits?
Inverter welders use new silicon based technology to produce their welding power compared to older style welders that use heavy copper/aluminium transformers and rectifiers.
- Inverters use much smaller transformers, so they are a lot smaller, lighter and more portable.
- Inverters use a lot less input power to get the same output power than the older transformer type machines, so they consume a lot less electricity and therefore are greener to run.
- Because Inverters output power is controlled electronically, you have infinite power adjustment from 0 - 100% so you can really fine tune these to you needs. On MIG welders sometimes setting 2 is not enough power, but setting 3 is too much. You won't get this problem with infinite power control.
Are inverter welders realiable?
Yes. When inverter welders first came out many years ago, like any new technology they did have their problems. Nowadays inverter technology is very reliable, cost effective and has many benefits over traditional welders.
At R-Tech we use ultra-reliable Eupec Infineon IGBT Power Modules and power produced by American/German companies which are ultra reliable and allow us produce high duty cycle welding equipment. -
How Are R-Tech Welding Machines Built?
As with all major manufacturers of welding equipment, the R-Tech range uses components originating from several countries. The main part of our inverter range utilise 'Eupec (Infineon)' IGBT & power modules produced by American and German companies providing very high duty cycles with great reliability. With other components sourced from the Europe (internals) and the Far East (chassis and case components) from tried and tested high quality sources. All final quality testing is carried out at our premises in Tewkesbury, UK.
