Ticon/TIG Aesthetics Trailing Shield

CODE
TICON-TA-TRAILSHIELD
In stock
Order in for UK Mainland delivery on 26/07/2024
£150.00 £125.00

Order by 3pm:

Next-day delivery
Ticon/TIG Aesthetics Trailing Shield
Ticon/TIG Aesthetics Trailing Shield
Ticon/TIG Aesthetics Trailing Shield Ticon/TIG Aesthetics Trailing Shield

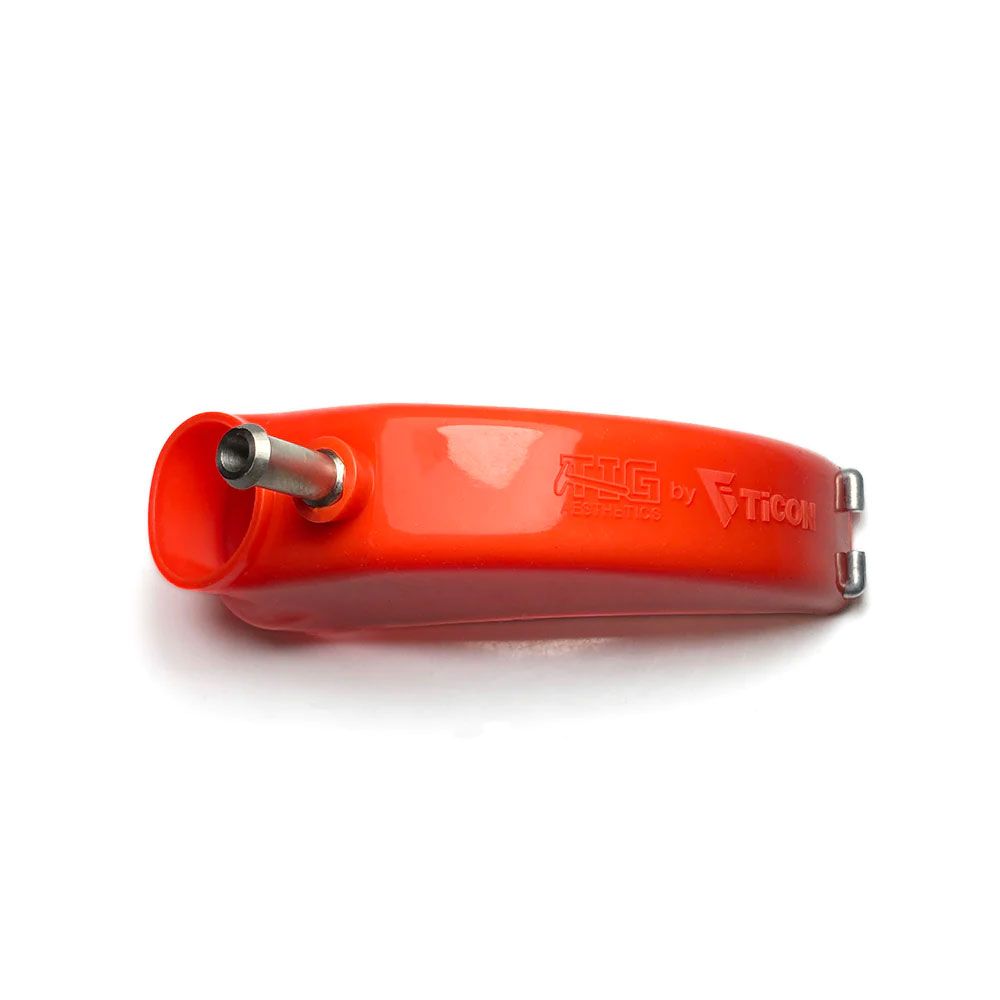

TIG Aesthetics and Ticon Industries are eager to announce the latest Innovation in our TIG welding lineup! The TIG Aesthetics Trailing Shield. It is the Ultimate solution for welding aerospace grade metals where an inert environment is required. Manufactured from high temperature silicone, the Trailing Shield withstands the heat absorbed by any #16 or 1″ welding cup and will hold its structural integrity to 100+ amp welds. The Trailing Shield also includes a built in drag bar on the tail of the shield to assist in the prevention of direct heated material contact. **please note that the silicone body is meant to hover above and not make contact with the actual weld seam**

Our proven, multi-layer screen diffuser combined with the shower head diffuser fitting integrate seamlessly with the silicone while providing additional rigidity to the body of the shield; providing excellent argon diffusion to the weldment. The reinforced screen diffuser allows for the radius to be adjusted by slightly bending the stainless steel diffuser.

User setup tips and tricks:

Included hose retention tab is designed to snap on to the back cap and align the argon inlet hose perfectly straight into the shield body, ensuring consistent results when manipulating torch angle during the weld process. (we recommend using Tig Aesthetics 6mm Argon Purge line)

Recommended gas flow for the Trailing Shield is 15-20 SCFH *dependent on weldment and environment*

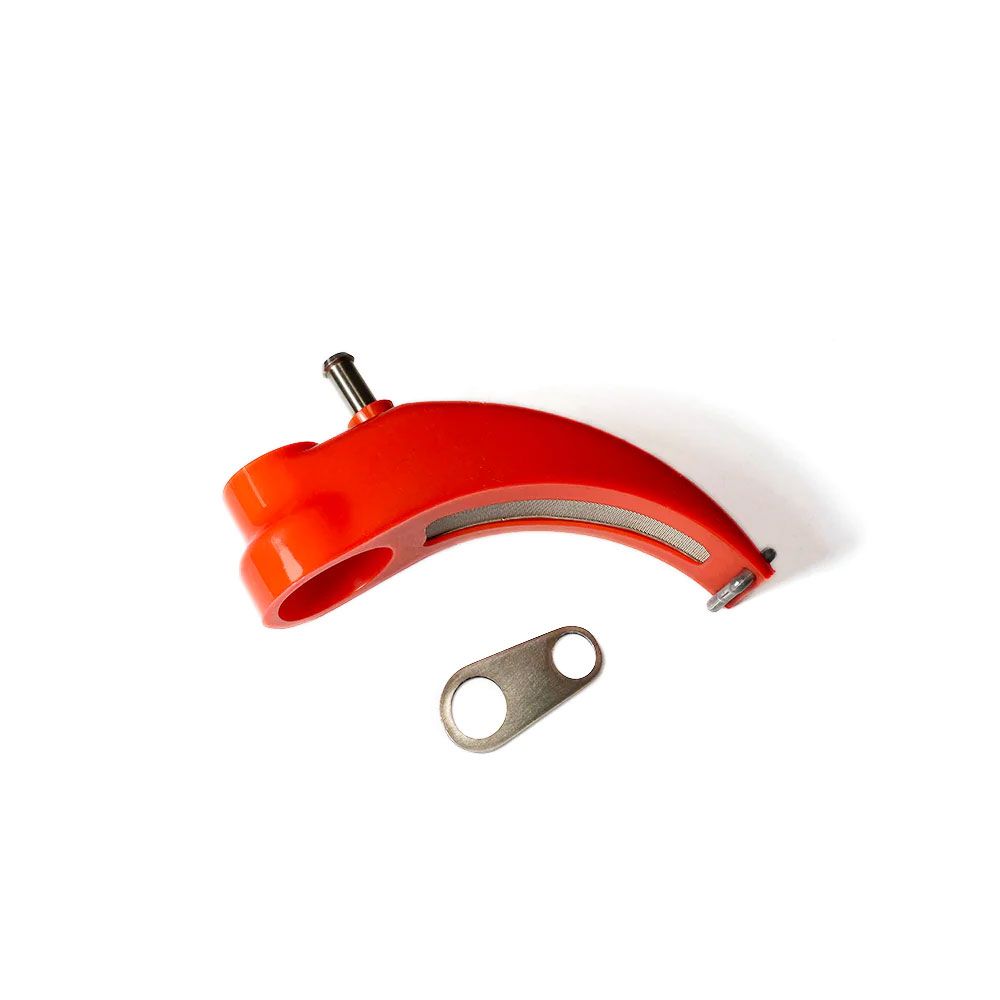

Included in the TIG Aesthetics Silicone Trailing Shield Kit:
  • Silicone trailer chassis – Red x 1
  • Stainless Steel Mesh Diffuser x 1
  • Titanium Shower Head Diffuser fitting x 1
  • Titanium Hose Retention Tab x 1
