R-Tech 180 Amp Portable Inverter Mig Welder (240v)

4.9/5
CODE
MIG180
In stock
0% Finance Available - Select pay by finance in checkout - Instant decision
Order in for UK Mainland delivery on 26/07/2024
Ideal for welding thin plate i.e Car bodywork
£552.00 £460.00

Order by 3pm:

Next-day delivery
R-Tech 180 Amp Portable Inverter Mig Welder (240v)
Warranty
R-Tech 180 Amp Portable Inverter Mig Welder (240v)
R-Tech 180 Amp Portable Inverter Mig Welder (240v) R-Tech 180 Amp Portable Inverter Mig Welder (240v) R-Tech 180 Amp Portable Inverter Mig Welder (240v) R-Tech 180 Amp Portable Inverter Mig Welder (240v)
This is maximum weld with 1 pass, if you do multiple passes you can weld up to 15mm

6mm Max Weld

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 15mm
This will weld ALL steels including stainless steel

Weld Steel

This will weld ALL steels including stainless steel
You can weld aluminium with the optional spool on gun, you will need PURE argon gas.

Aluminium

You can weld aluminium with the optional spool on gun, you will need PURE argon gas.
Optional spool gun makes MIG welding aluminium easy, wire reel is held on torch.

Spool Gun

Optional spool gun makes MIG welding aluminium easy, wire reel is held on torch.

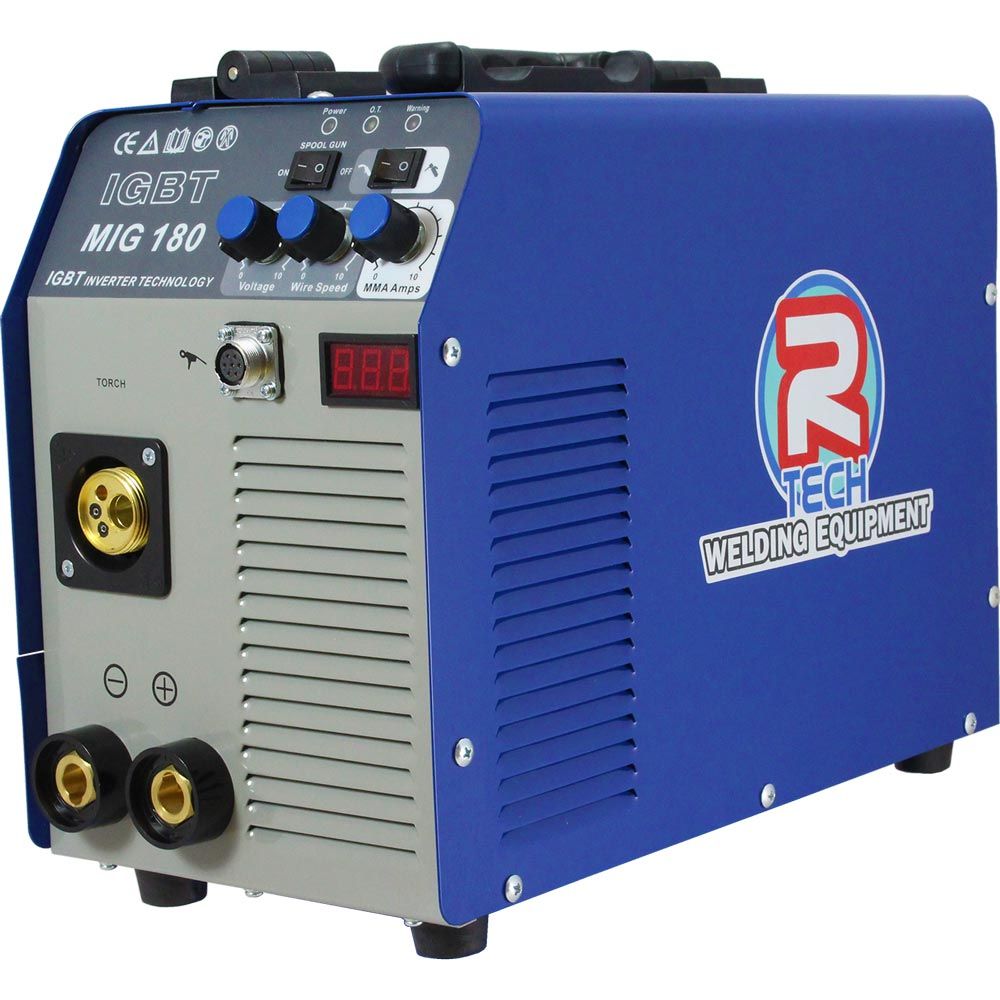

The MIG180 MIG Welder is a 180 Amp Portable Inverter MIG Welder with a 240v single phase input and a durable metal feed assy. With optional MMA (Stick welding) and Spool on Gun for welding aluminium this is a great addition to your workshop.
    Want to try before you buy? Book a demonstration at our Tewkesbury HQ - Available 5 days per week 9am-12pm and 2pm-4pm.
 Amperage Range MIG  30 - 180A
 Input voltage/amps  240v 16A
 Duty cycle  180A @35% - 150A @60%
 Amperange range MMA   20 - 160A
 Wire reel size  5KG
 Wire diameter  0.6mm , 0.8mm
 Roller size fitted  0.6mm , 0.8mm
 Net weight  14KG
 Dimensions  330 x 210 x 410 mm (H x W x D)
 Euro style torch  Yes - Easy fitment of torch
 LED Display  Yes - Shows acutal welding amps

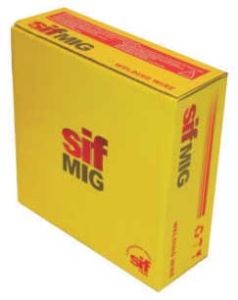

 Gasless wire  Yes - Easy reversal of polarity for gasless wire
 Max Thickness Steel  6MM Single Pass
 Max Thickness Steel  15MM Multiple Passes





The R-Tech MIG180 carries the following warranty:-

  • MIG180 - 5 Year Warranty
  • Regulator - 1 Year Warranty
  • R-Tech MIG Torches - 3 Month Warranty
  • Earth Lead - 3 Month Warranty
  • Optional Spool Gun - 1 Year Warranty

R-Tech machines are designed to be robust, easy to use and highly reliable but in the unlikely event that your welder or plasma cutter requires attention, R-Tech promise to:-

  • Arrange collection via next working day UK courier [48hr offshore]
  • Quickly repair the machine at our Technical and R&D centre in Gloucester
  • Deliver back via next working day UK courier  [48hr offshore]
  • All costs covered by R-Tech - Yes, Collection, repair and delivery!

No questions, no hassle, just honest and reliable service - A true no quibble warranty

Most of our competitors only offer return to base [RTB] warranties - you have to pay and arrange to get it back to them which can be a hassle. Many others offer warranties that have clauses and if you don't have it serviced yearly by them, at your cost, the warranty will be void.

Other benefits of owning an R-Tech machine include:-

  • Free friendly and knowledgeable technical advice via phone and email
  • Free machine setup help always available - We want you to get the best from your machine
  • Ten year Duty-of-Care on all our machines, giving you piece of mind that spare parts will be available if needed
  • Video's to show how to use and setup your R-Tech machine.
  • 2 year extended warranties available at a minimal cost.

Don't just take our word for it - see our customer reviews page to see what real customers say about the R-Tech products and our service & support.

View File
R-Tech MIG180-MIG250 Spec Sheet 2023
Download
View File
R-Tech Welding Brochure Spring 2022
Download
View File
MIG180 Weld Setting Chart
Download
View File
Owners Manual R-Tech MIG Welder I-MIG180
Download

  • Can I run the R-Tech MIG 180 using a standard, domestic, 13amp plug?

    Yes you can. Thanks to its fantastic inverter technology, the MIG 180 will generate up to 140amps smoothly on a standard household plug. This makes the machine perfect for welding up to 4.5mm.

  • Does the MIG 180 take 5KG spools?

    Although compact in size to save space in the workshop, the MIG 180 will easily accept spools up to 5KG in size.

  • Which are the best wire diameters to use in the MIG 180?

    You can use both 0.6mm and 0.8mm diamters in the R-Tech MIG 180. We get excellent results when we use the follwing -

    For anything 2mm and below, such as car body work or steel structures, we would recommend 0.6mm wire thickness. This is because the wire requires a much lower amperage to achieve briliiant penetration and prevents burning holes in the work piece.

    For anything 3mm and above, such as chassis work, we would recommend 0.8mm wire thickness. This wire thickness is a fantastic all rounder as it suites many of the users requirements.

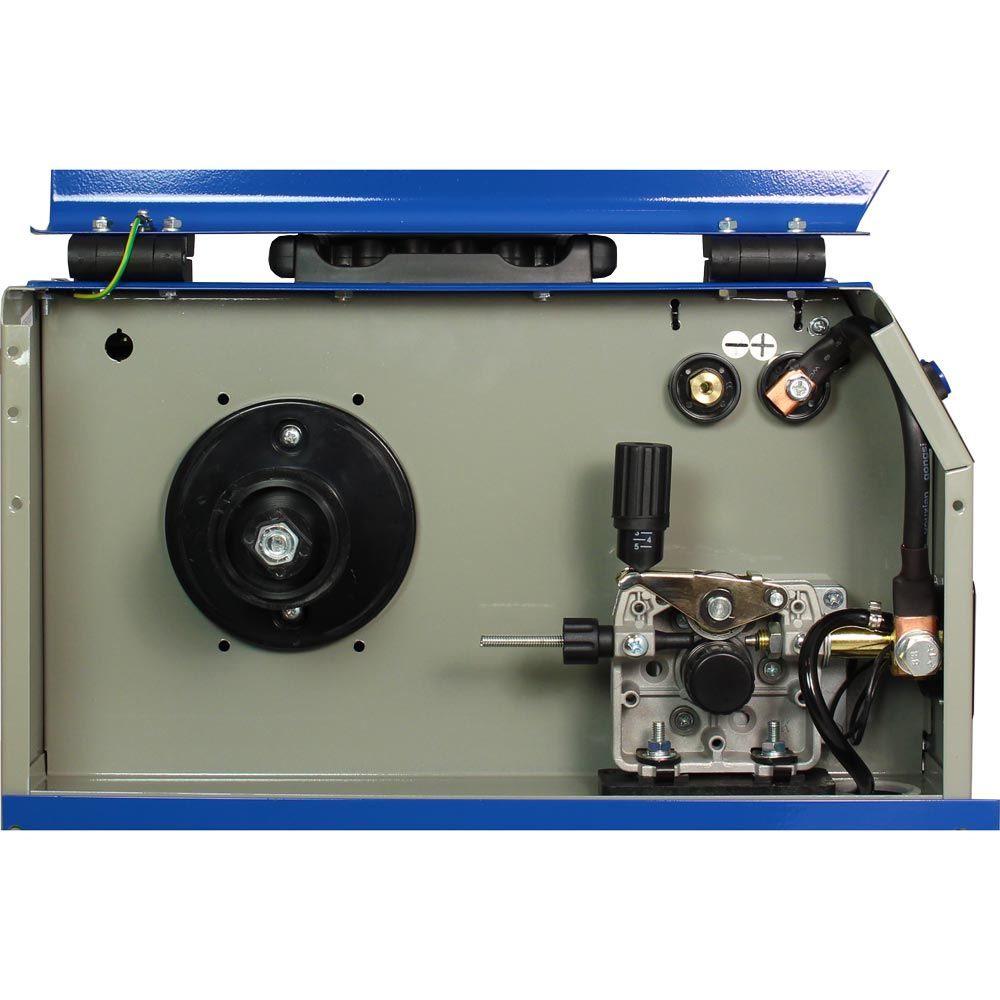

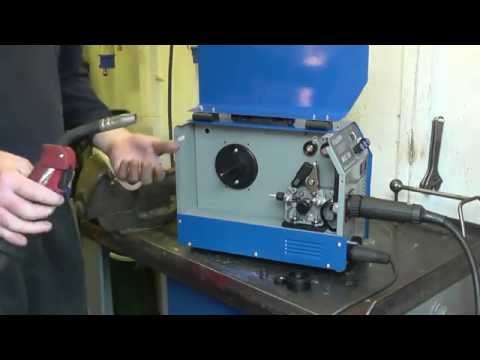

    Our machines are fitted with a double grooved roller to suite both 0.8mm and 0.6mm wire. Simply unscrew the retaining screw from roller, turn the roller around to match the wire diameter and re-install the retaining screw.

  • Which Gas Do I Need To MIG Weld?

    We reccomend using a gas that contains 95% Argon and 5% Carbon Dioxide for any welding less than 6mm. If you are welding anything more than 6mm, we would suggest an 85% Argon and 15% Carbon Dioxide mixed gas.

  • Can I weld aluminium with an R-Tech MIG Welder?

    Yes you can. We highly reccomend using a spool gun when welding aluminium as this prevents any snags and birds nests found when using just a teflon liner in the torch.  Our MIG 180, 250 and MTS 255 come spool gun ready, keeping the process nice and simple. Just plug the spool gun into the R-Tech machine and away you go!.

    Note - Pure argon gas is required when welding aluminium.

    View our videos on how to weld aluminium with a spool on gun

  • Can I Stick/MMA Weld with an R-Tech MIG 180?

    Yes you can, the MIG 180 is fitted with stick welding functionality and will comfortably burn rods up to 4.0mm smoothly. This makes the MIG 180 suitable for agricutural welding jobs such as digger buckets, railings and gates posts.

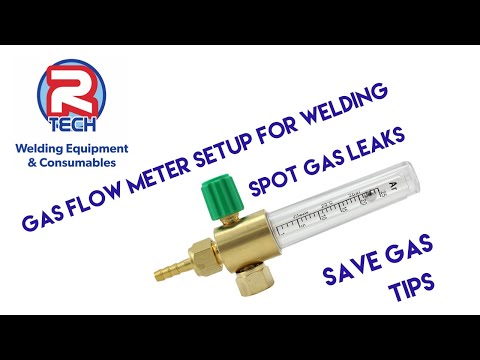

  • What should I Set My Gas Flow Rate When MIG Welding?

    We recommend setting your flow rate between 12 to 15 litres per minute (LPM) when MIG Welding. You can do this on the regulator supplied with the machine however, we suggest getting a flow meter for more precise tuning.

  • How Long Will It Take to Get My MIG180?

    All orders for R-Tech welding equipment received by 3PM will normally be despatched the same day for next day delivery to the UK mainland, UK Isles may take 48hrs.

    Once your order has been placed, will will email you an order confirmation, then a despatch confirmation with tracking number so you can track your order. We mainly use DHL who will often provide a 1 hour delivery time to you.

    Simply order on-line or by phone on 01452 733933.

    If you require any advice on which welding machine will best suit your requirements, please give us a all and one of our friendly sales/technical team will answer your questions.

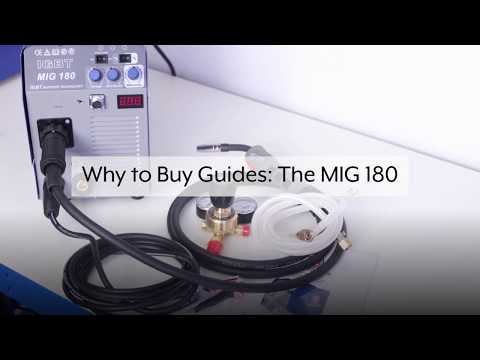

  • Why Should I Buy The MIG 180?

    R-Tech provide you with high quality welding equipment with easy useable features, at exceptional value with un-rivalled direct customer support.

    All our machines are robustly built using the latest ultra reliable IGBT inverter power components sourced from Siemens Infineon in Germany & USA.

    We give a 5 year collect and return warranty on all our R-Tech machines, a true no quibble warranty. We pay for and arrange collection, repair and return to you. General turn-around is 3-4 days, Can you current supplier offer such fast service?

    We also offer a free loan machine service to get you back qelding quickly and if arranged before 3pm, this can be delivered next working day for UK mainland.

    10 year duty of care on spare parts - We keep a large stock of spares in our Gloucester premises.

    We build our machines in a modular basis which ensures any future repair bills are kept to a minimum, unlike some manufacturers who build the internals of thier machines on just one or two P.C.B's. We ensure ours are designed to have internal components easily replaced ensuring cost effective repairs.

  • What Is An Inverter Welder And What Are The Benefits?

    Inverter welders use new silicon based technology to produce their welding power compared to older style welders that use heavy copper/aluminium transformers and rectifiers.

    • Inverters use much smaller transformers, so they are a lot smaller, lighter and more portable.
    • Inverters use a lot less input power to get the same output power than the older transformer type machines, so they consume a lot less electricity and therefore are greener to run.
    • Because Inverters output power is controlled electronically, you have infinite power adjustment from 0 - 100% so you can really fine tune these to you needs. On MIG welders sometimes setting 2 is not enough power, but setting 3 is too much. You won't get this problem with infinite power control.


    Are inverter welders realiable?

    • Yes. When inverter welders first came out many years ago, like any new technology they did have their problems. Nowadays inverter technology is very reliable, cost effective and has many benefits over traditional welders.

    At R-Tech we use ultra-reliable Eupec Infineon IGBT Power Modules and power produced by American/German companies which are ultra reliable and allow us produce high duty cycle welding equipment.

  • How Are R-Tech Welding Machines Built?

    As with all major manufacturers of welding equipment, the R-Tech range uses components originating from several countries.

    The main part of our inverter range utilise 'Eupec (Infineon)' IGBT & power modules produced by American and German companies providing very high duty cycles with great reliability. With other components sourced from the Europe (internals) and the Far East (chassis and case components) from tried and tested high quality sources.

    All final quality testing is carried out at our premises in Tewkesbury, UK.
