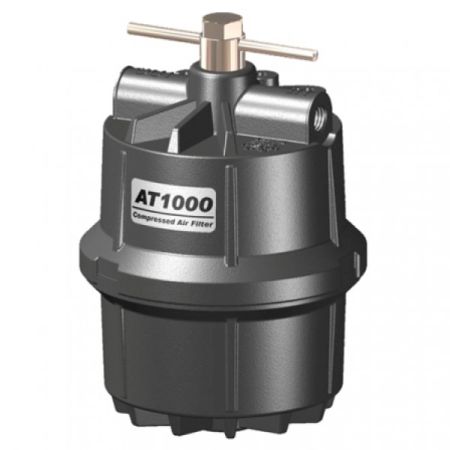

Compressed Air Dryer for Plasma Cutters - AT1000
CODE
WS-50500
In stock
High quality air cleaning / drying filter assy, ideal for Plasma Cutters
- When used with Plasma Cutters ensures long tip life and trouble free operation
- The filter removes all oil sprays, smoke, traces of humidity and polluting particles that might not be filtered by conventional equipment
- It is the perfect solution to problems caused by compressed air contamination.
- Prolongs the life of equipment with a consequent reduction in maintenance costs
- Ideal for industrial paintwork, bodyshop, tyre repairer, pneumatic tools, pneumatic equipment
- For Ultra Clean Dry Compressed Air
- Sub mi-cronic filtration
- Fitted with 1/4 NPT female inlet and outlet
- Comes with 2 x 1/4 NPT male to 1/4 BSP male adaptors
- The AT1000 can filter up to 1250 litres/minute without any pressure reduction
- Degree of filtration .01µinch – 0.25µm
| Technical Data | |
|---|---|
| Degree of filtration | .01µinch – 0.25µm |
| Max operating pressure | 125 PSI – 8.5 bar |
| Max output @80% | 2700 SCFH 1250 l/min |
| Operating temperature | 15-140 F -10 / +60 C° |
| Connection dimensions | ¼ NPT |
| Dimensions | Ø 5.2” x 7.9” Ø 132 x 200 mm |
FILTER
Dimensions: 44x30xh47
Dimensions: 44x30xh47
CARTRIDGE
Dimensions: 66x44xh25
Dimensions: 66x44xh25
Excellent
Compressed Air Dryer for Plasma Cutters - AT1000
product reviews
65
product experience
calculated from 65 customer reviews
positive
97%
Neutral
3%
negative
0%
latest reviews
-
04 February 2025Solidly made and reviews suggest it'll perform as intended, as I've yet to test its capability.
-
30 January 2025Product quality seems robust enough, fitted to air system ahead of a cnc plasma cutter. Has improved cut quality. First impressions are good so would recommend fitting one if you haven’t t already.
-
17 October 2024Well made piece of kit and does the job .
-
13 August 2024does what it is supposed to.
-
27 March 2024Does what it says on tin!
-
06 January 2024Just what I needed staff are excellent wouldn’t go anywhere else 10🌟
-
23 December 2023Well made filter, great for my plasma cutter.
-
26 November 2023Excellent
-
21 October 2023Working
-
13 May 2023Great product , easy to fit and works a dream . Priced very well for the job it does that is important for plasma cutting . Thank you Charles Burch
-
05 April 2023Just ideal
-
05 April 2023Bit ** than I thought. Has a small leak from bottom but very small
-
04 April 2023Just tested the filter with my plasma cutter where it worked well. Time will tell how long the filters last before being replaced. No mention of drying out the filters in the instructions provided, but I’ll give that a try in due course.
-
04 April 2023Very good dryer
-
30 January 2023awsome bit of kit
-
25 January 2023Good piece of kit, if i ever need to go mobile with the cutter it will be a great help.
-
07 November 2022Works as expected.
-
04 August 2022Works, much cheaper than industrial alternatives.
-
11 June 2022Excellent
-
03 May 2022Although our compressor is fitted with water and oil traps for spraying paint this was bought to fit near plasma cutter after air delivery line, just in case air line has gained some ingress of dust or water. Working OK for me.
-
04 April 2022Used for plasma cutter only used once seems to be really well made although a little expensive
-
05 January 2022All good
-
26 December 2021looks the answer to moisture problem
-
25 December 2021Good solid build
-
04 December 2021Works
-
08 November 2021Very good
-
18 September 2021good
-
29 August 2021Excellent product and service.
-
26 July 2021general ***
-
07 July 2021Air comes out really dry, highly recommend for all compressors.
-
02 June 2021Great little dryer, made the world of difference to my little 30amp plasma unit. Simple to fit to my Scheppach compressor. I get far more life out of my consumables using it.
-
20 April 2021Well built, solid unit. Essential for plasma cutter use.
-
04 April 2021Does exactly what it supposed to do. Can't ask for more.
-
01 February 2021good job
-
19 January 2021Excellent quality and price, works very well.
-
05 January 2021as above
-
07 December 2020Received in good condition, not yet fitted to cutter.
-
27 October 2020Top product's Staring a new venture with your products And will recommend
-
05 October 2020Perfect thanks fast delivery
-
13 August 2020To be used with plasma cutter to enhance performance but will also support spray painting with compressor. Appears good quality.
-
22 July 2020Brilliant , the air is sufficiently dry and as such cutting results are good
-
02 June 2020home workshop. other home users. ok but o,ring took a lot of time to get to seal properly
-
25 May 2020This product works very well for Plasma cutting.
-
01 May 2020Does what it is meant to do
-
20 April 2020Product seems good quality, simple to install . Recommend it to any one with any expensive air tools , worth the money
-
02 March 2020Real bonus and makes a great difference.
-
20 January 2020Dose exactly what it should.
-
17 August 2019Very good and definitely a requirement if you’re going to be using a plasma cutter
-
13 June 2019I bought this item mainly to get the most out of the plasma and consumebels and my air tools good quality product , would recommend to work colleagues.
-
01 April 2019It works & very easy to set up
-
14 March 2019Seems to pull all the water out of the air think i will get some more soon
-
07 February 2019Solid and easy to set up.
-
03 January 2019Delivery sooner than expected not set up yet
-
22 December 2018Very good
-
18 November 2018Built like a tank should last a long time so worth paying the extra, bought to use in conjunction with the RTec Plasma cutter.
-
18 September 2018Surprisingly solid lump. Comes with mounting bracket.
-
24 July 2018Well made item, very robust
-
04 June 2018Easy to fit and use; nicely made. Including a short length of 8mm air hose, 1/4 in hose tail connectors and hose clips with the kit would be a great idea so that it can be quickly connected between the regulator and plasma cutter without hunting for these bits and waiting for them to arrive!
-
15 May 2018Good product and service
-
31 March 2018Heavy DIY use, have it rigged up just to run the R-Tech Plasma Cutter and does a first class job of filtering and drying the air. Really impressed with the size of the filter, its huge.
-
12 March 2018Everyone
-
05 February 2018Seems to leak air a little despite tightening up.
-
28 October 2017Great quality product god for all users. Many thanks
-
30 August 2017Goes with the compressor Anyone with a workshop airline system Looked reasonable quality but nit fitted up yet
-
04 August 2017takes the moisture and dirt out of the air. a must to keep your tools protected
