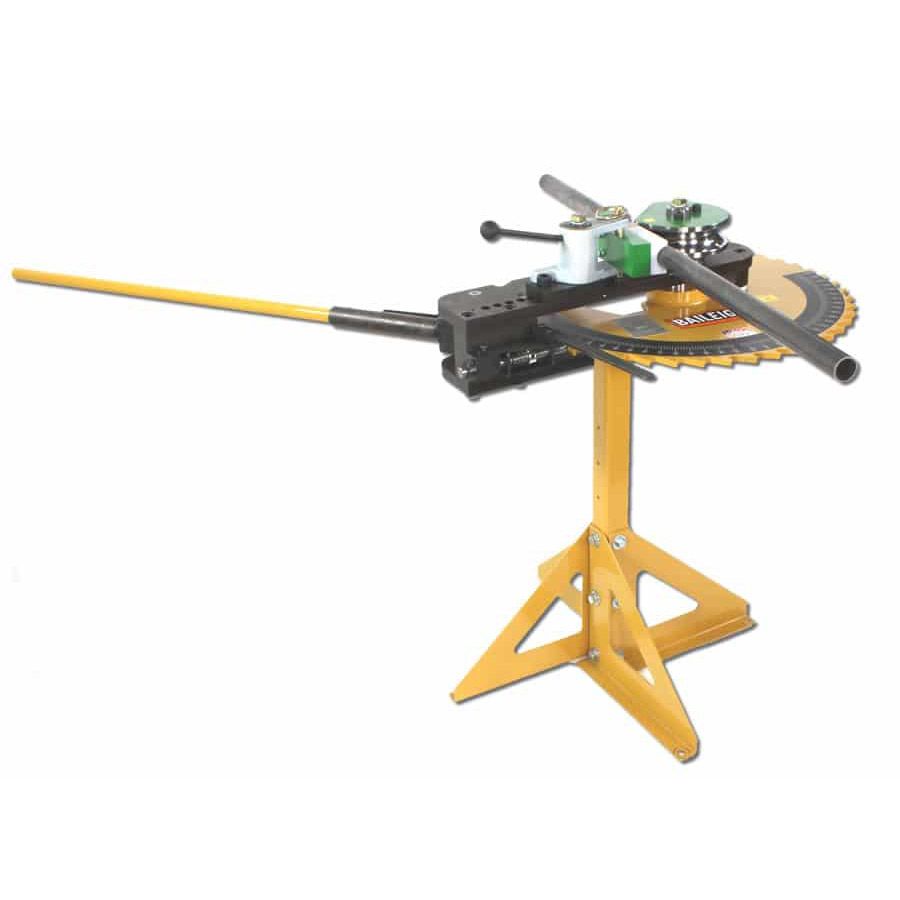

Baileigh RDB-100 Manual Tube Bender
Baileigh RDB-100 Manual Tube Bender
Baileigh RDB-100 Manual Tube Bender

Baileigh RDB-100 Manual Tube Bender

CODE
TF-BA-RDB-100
In stock
Order in for UK Mainland delivery between 26/11/2024 to 29/11/2024
£3,464.21 £2,886.84

Order by 3pm:

Next-day delivery
The RDB-100 from Baileigh Industrial is perfect for the fabricator that needs to bend lower production runs with very professional looking bends. Constructed of thick steel plate, the RDB-100 ships almost fully assembled, with only the stand needing to be attached and the handle to be bolted on. Like all top-loading tube and pipe benders from Baileigh Industrial, the RDB-100 was made to accept hundreds of round and square tubing die sets as well as round pipe dies sets.The RDB-100 is capable of bending up to 45mm (1.75"") OD tubing with a maximum wall thickness of .095"" (2.5 mm) and 1"" schedule 40 pipe (48.3mm x 3.7mm).

The RDB-100 manual bender from Baileigh Industrial uses a large diameter indexing plate allowing the operator to bend up to 206° (180° plus springback) without having to re-index and re-pin, common on most other manual benders on the market. A tension springback mechanism holds the position as the bend mechanism grabs the next tooth on the index wheel. When requirements are for lighter gauge materials, the RDB-100 ratchet system can be shut off and the handle can be put into a manual override housing that allows the operator to simply walk around the bender and bend without the power of the indexing unit.

A large degree scale displays your bend angle, and all the tooling has a start-of-bend indicator line, so complex bends can be made with ease. A quick release counter die system allows for quick loading and unloading of the material.
  • 45mm Ø x 2mm mild tube capacity
  • 38mm Ø x 2mm st/steel tube capacity
  • Manual operation
