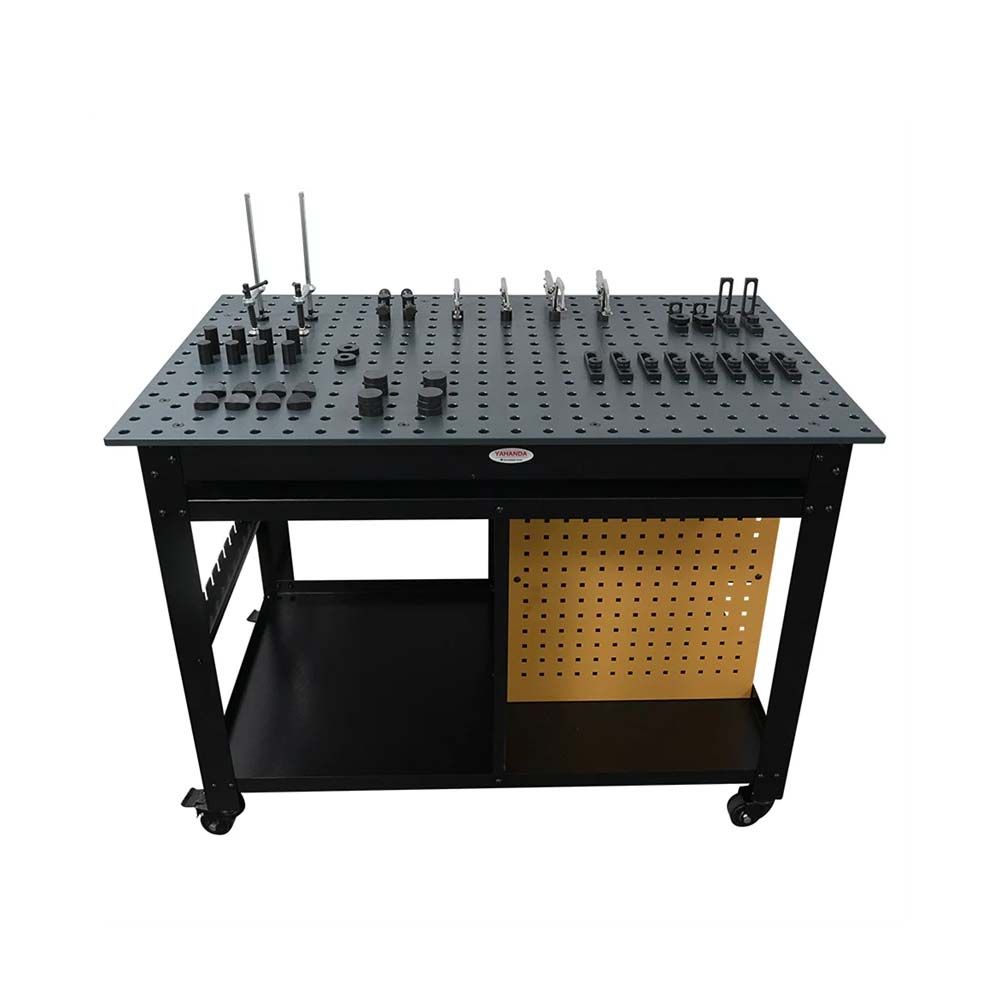

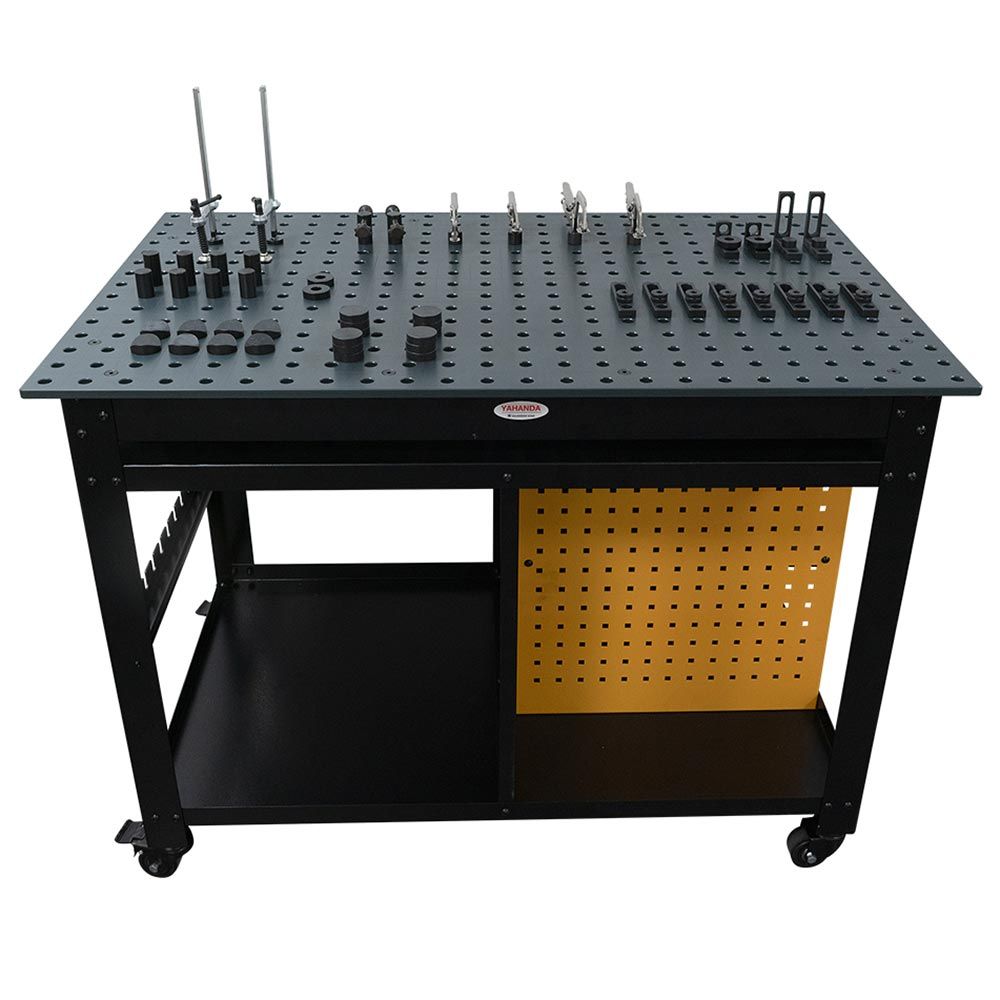

Yahanda D16 ECO-2D Table & Accy Kit 1200mm x 750mm x 850mm
CODE
WS-YHD16ES1275
In stock
A high‑precision mobile welding and fabrication workstation designed for steel fixture assembly.
Built for durability and performance, it features a D16 system compatible with 16 mm clamps and accessories, making it ideal for both workshop and on‑site operations.
- D16 system for 16 mm modular clamps and accessories
- Precision 2D grid for repeatable setups and accuracy
- Braked castor wheels for easy manoeuvrability and stability during work
- Shadow board tool storage included for organised accessory management
- Uniformly distributed load capacity (UDL): 900 kg/m²
- Central concentrated load (CL): 600 kg/m²
- Maximum deflection: ≤ 0.4 mm (free)

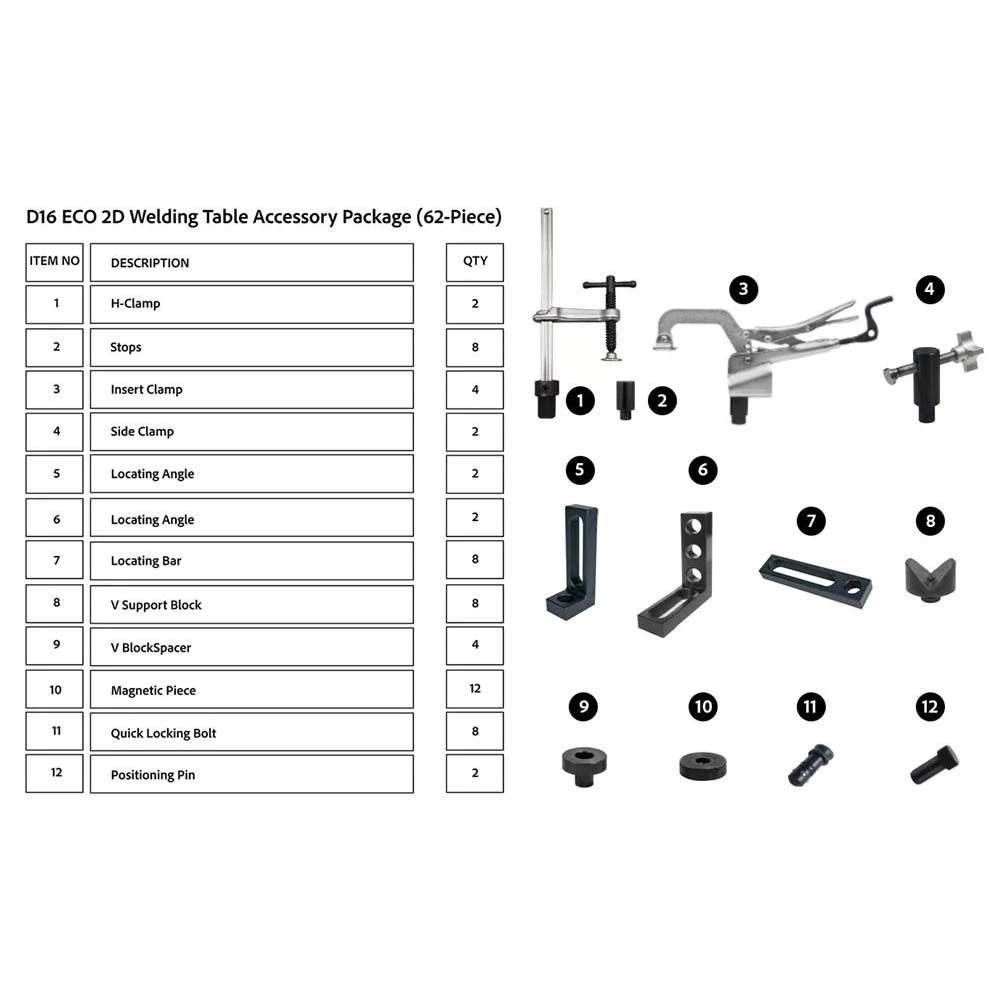

D16 ECO 2D Welding Table Accessory Package (62-Piece)
| Description | Quantity | ||
| H-Clamp | 2 | ||
| Stops | 8 | ||
| Insert Clamp | 4 | ||
| Side Clamp | 2 | ||
| Locating Angle | 2 | ||
| Locating Angle | 2 | ||
| Locating Bar | 8 | ||
| V Support Block | 8 | ||
| V BlockSpacer | 4 | ||
| Magnetic Piece | 12 | ||
| Quick Locking Bolt | 8 | ||
| Positioning Pin | 2 | ||
| Size | 1200mm x 750mm x 900mm | ||
| Weight | 160kg | ||
| Material | 2311 Tool steel (Annealing) | ||
| Table thickness | 13±1mm | ||
| Hole pitch | 50±0.02mm (tolerance between any two holes) | ||
| Grid pattern | 50mm x 50mm | ||
| Hole diameter | 16mm | ||
| Resistant to wear, corrosion, abrasion & scratching | |||
| Hardness rating | HV450 - 550 Vickers | ||
| Chamfered edges, corners and boreholes | |||
| Frame cabinet support | |||
| Uniformly distributed load (UDL) | 900kg/m² | ||
| Max loading | 810kg | ||
| Central concentrated load (CCL) | 600kg/m², Max deflection ≤0.4mm | ||
