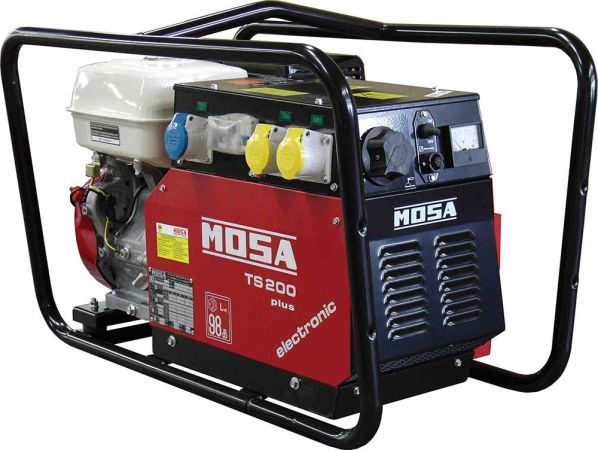

Welder Generator Mosa TS 200 BS/EL PLUS

Welder Generator Mosa TS 200 BS/EL PLUS

Enlarge Image
CODE: 35.23202

Availability: In stock

Welder Generator Mosa TS 200 BS/EL PLUS

5
(2)
£2,695.00 +VAT £3,234.00 Incl. VAT

* Required Fields

Paypal Visa American Express Mastercard

Description

Details

The Mosa TS200 Petrol Welder Generator features a powerful 190Amp welding output for electrodes up to 4mm, 110V/240V 2/4KVA electric outputs for power tools, lighting etc. Optional wheel kit available, 1 year warranty and free UK mainland delivery
  • 190 amp - DC welding output
  • Stepless electronic welding control
  • AC generator output - 4kVA 110/230V
  • 12V battery boost facility
  • Wraparound protective frame
  • Portable - Complete with wheel kit
  • EEC noise compliant
  • Remote control option
  • Options :-
  • TC2 - Remote Control (20 Meters)
  • Free delivery to UK mainland
  • 1 Year RTB warranty - collection/return arranged (UK mainland only)

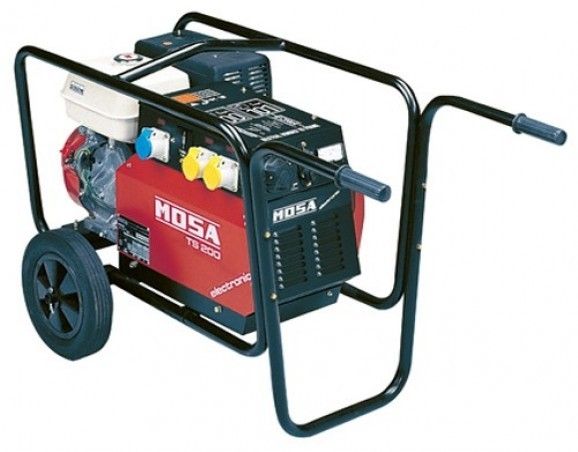

  • Optional CTM200 wheel kit available
  • Please note :- Does not include MMA or Earth leads
Tech Specs

Details

  • 190 amp - DC welding output
  • Stepless electronic welding control
  • AC generator output - 4kVA 110/230V
  • 12V battery boost facility
  • Wraparound protective frame
  • Portable - Complete with wheel kit
  • EEC noise compliant
  • Remote control option
  • Current Range (Continuous) 20 - 190A
  • Open Circuit Voltage 65V
  • Duty Cycle (Intermittent) 190A @ 60% 140A @ 100%
  • Electrode Diameters 2 - 4 mm
  • AC Generation - Single Phase 4 kVA 230V @ 100% Duty Cycle
  • AC Generation - Single Phase C.T.E. 2 x 2 kVA 110V @ 100% Duty Cycle
  • Engine Type Honda GX 390 Petrol, 4 Stroke
  • Engine Output 8.4 kW (11.4 HP)
  • Engine Speed 3000 rpm
  • Displacement Cylinders 389 cm3/1
  • Fuel Consumption 2.1 l/hr
  • Fuel Tank Capacity 6.5 Litres
  • Running Time @ 60% Load 3.5 Hours
  • Protection IP 23
  • Noise Level 98 LWA 73 dB(A)
  • Weight Kg 105
  • Dimensions (mm) 870 x 525 x 592
  • Options :-
  • TC2 - Remote Control (20 Meters)
  • Free delivery to UK mainland
  • 1 Year RTB warranty - collection/return arranged (UK mainland only)
  • Complete with CTM200 wheel kit
