TIGWARE Teflon Gas Lens - Size #10 - #32
CODE
TW-TEF
In stock
Made from TEFLON, TIGWARE TIG welding nozzles are engineered to be abused. Rated for DC use TIGWARE nozzles are virtually unbreakable, incorporating TIGWARE’s Triple Diffuser System is what sets them apart from the competition giving a smooth controled gas flow and weld pool.
- Will not easily fracture when dropped or bumped allowing for peace of mind
- For DC welding
- Suits 2.4mm (3/32") tungsten
- Stick out: 25mm or higher (greater stick out achieved with higher gas flow
- Rated for 150A or greater with increased gas flow
- Features TIGWAREs Triple Diffuser System

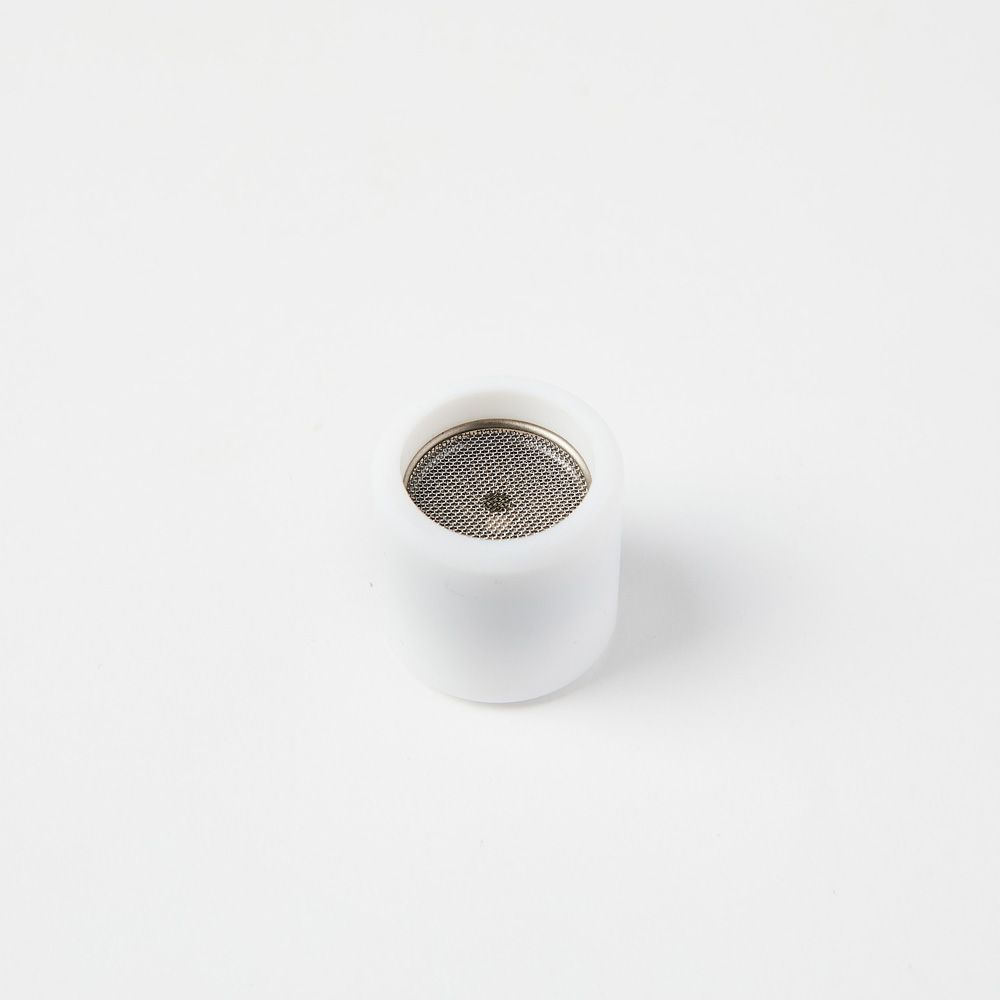

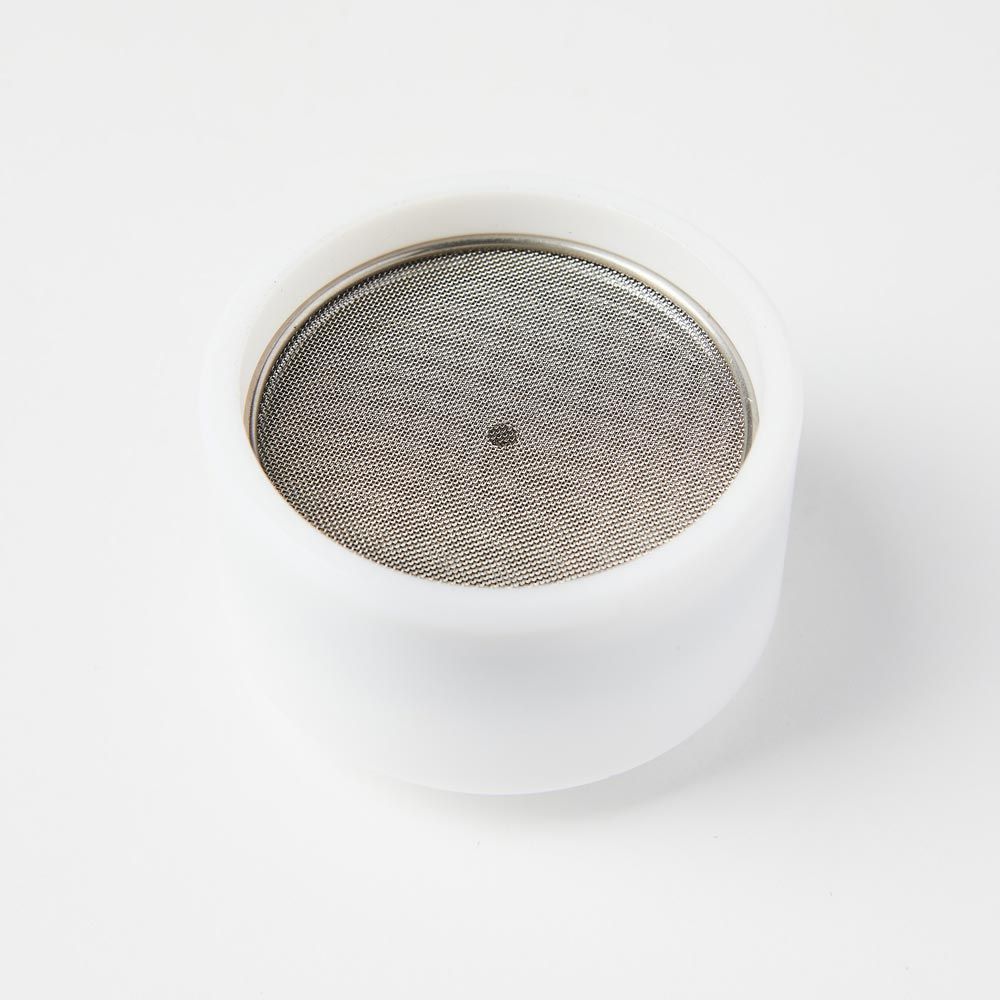

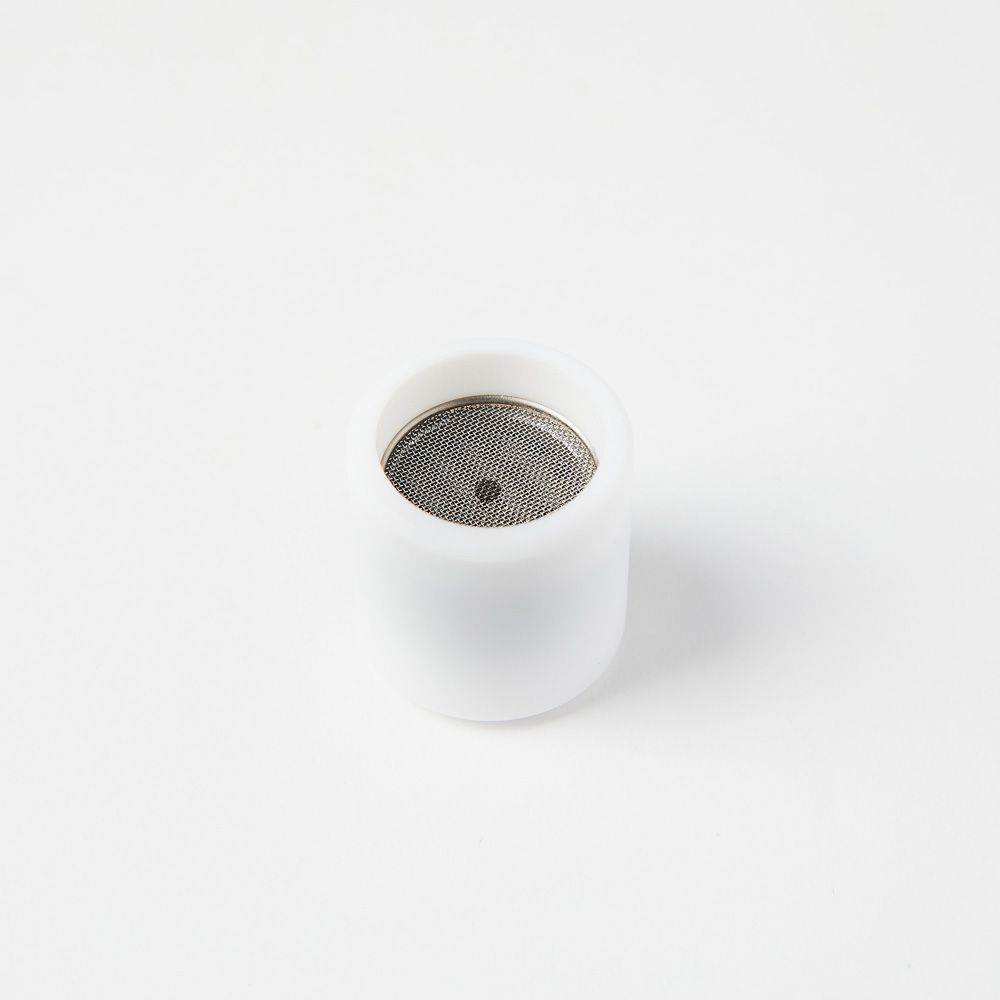

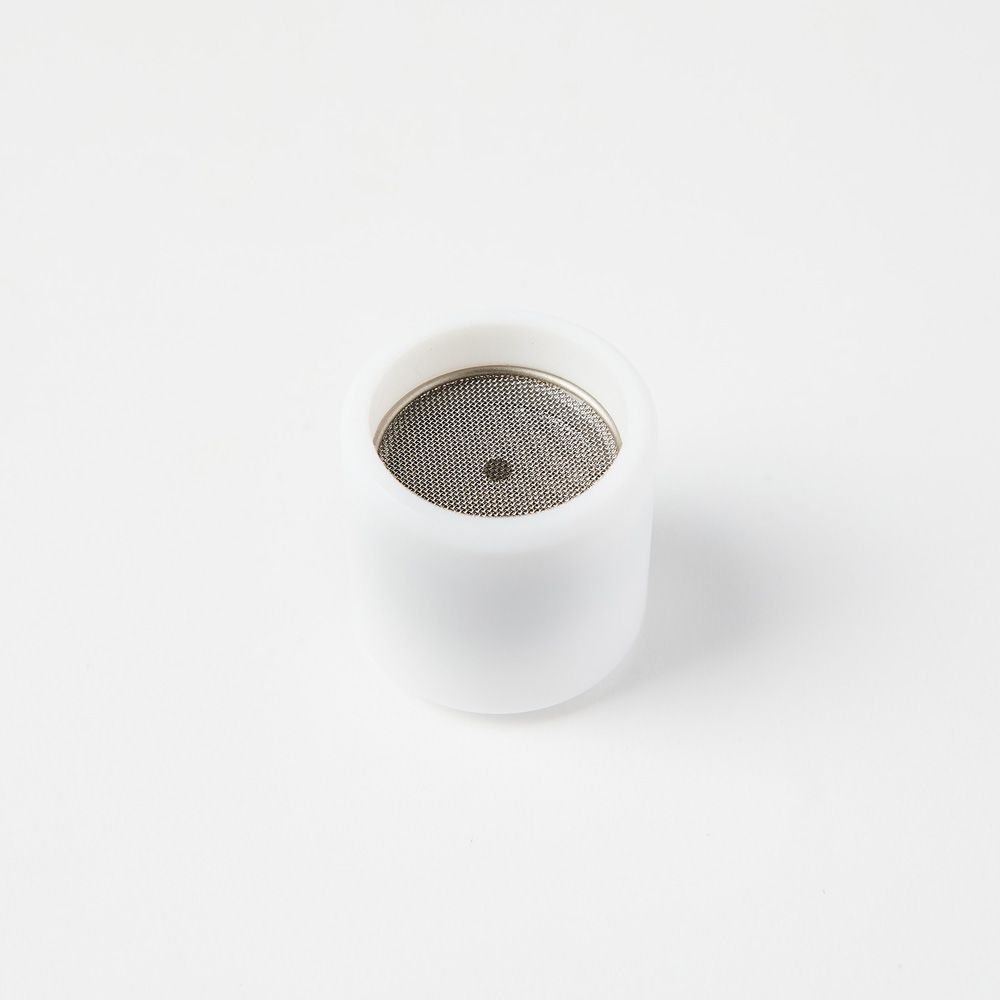

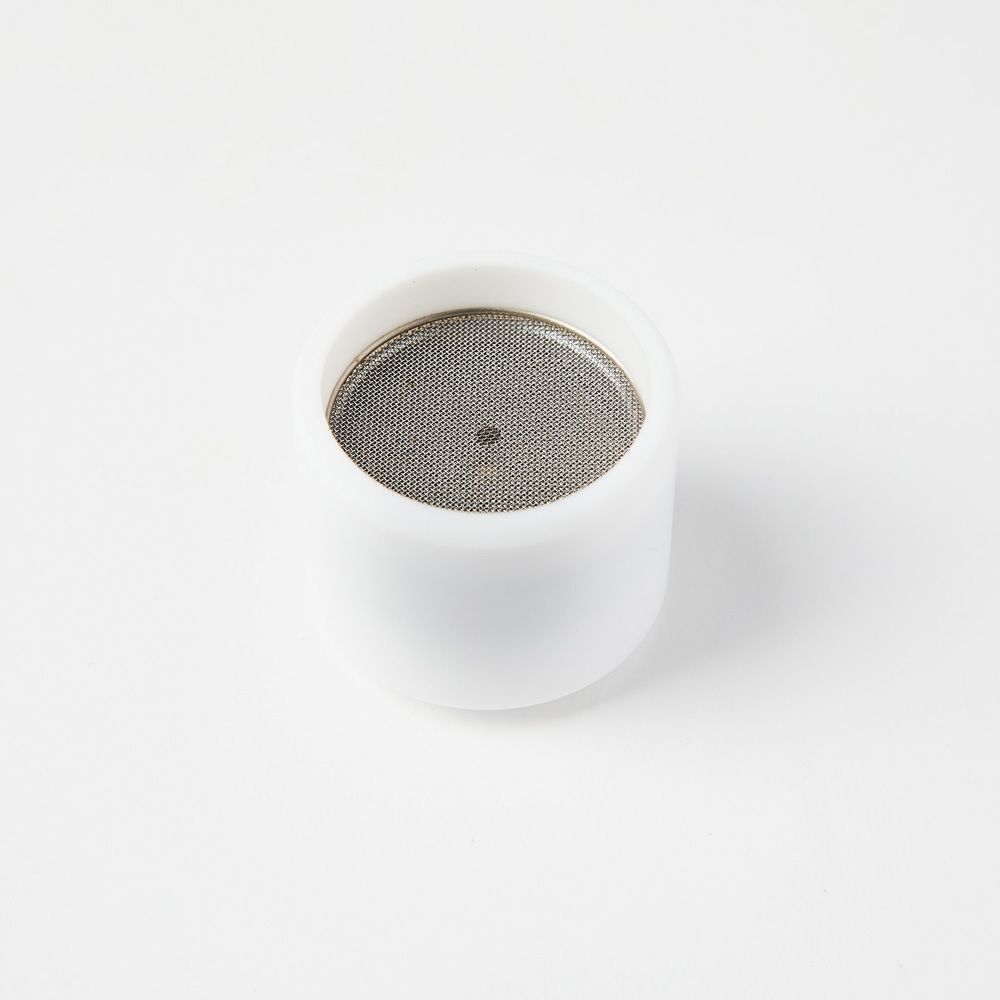

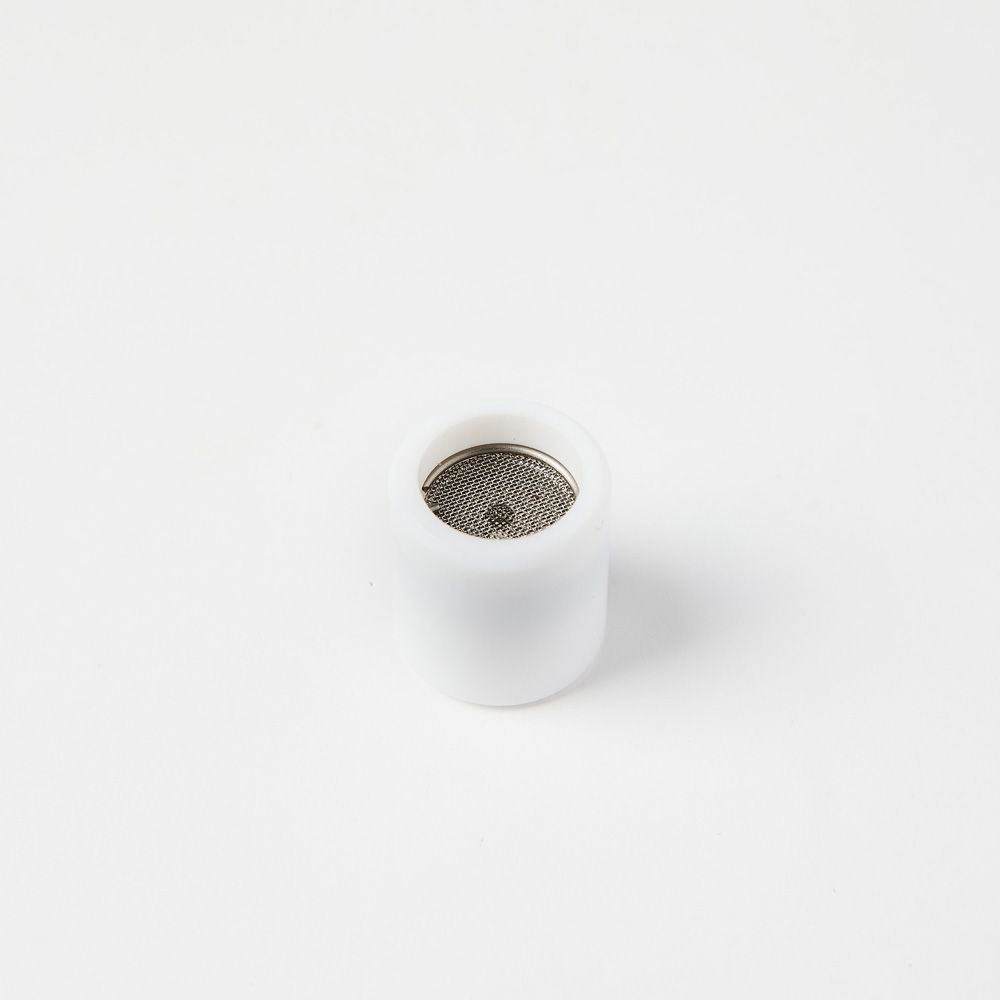

- Available in size: #10, #12, #14, #16, #20, #32
- See tech specs for recommended tungsten stick out and gas flow
For best performance, a greater than normal tungsten stick out with gas flow rates as below is recommended.
Recommended minimum stick out dimensions:
- Size #10 = 10 > L/min
- Size #12 = 11 > L/min
- Size #14 = 14 > L/min
- Size #16 = 15 > L/min
- Size #20 = 19 > L/min
- Size #32 = 30 > L/min
Recommended minimum stick out dimensions
- Size #10 = 25mm to 35mm
- Size #12 = 25mm to 35mm
- Size #16 = 25mm to 35mm
- Size #20 = 25mm to 40mm
- Size #30 = 25mm to 40mm
