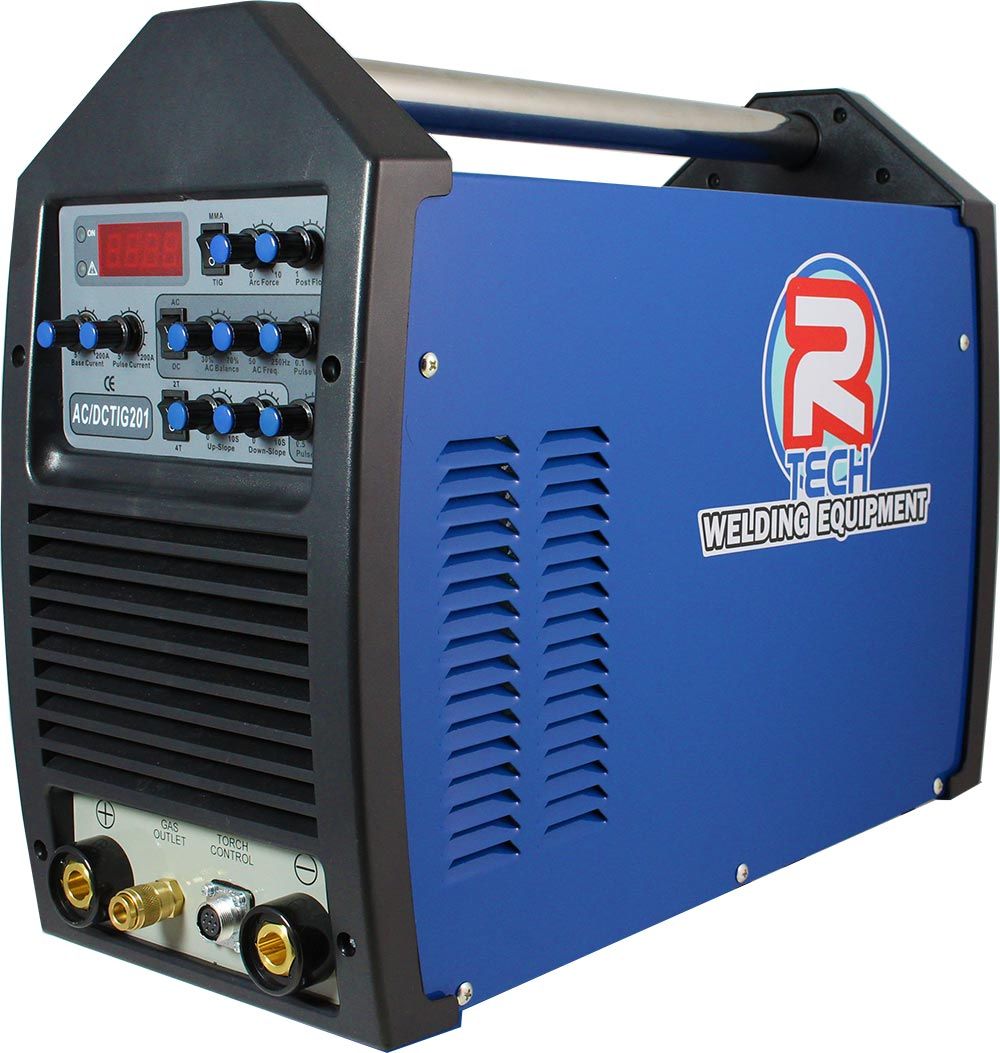

TIG Welder 240V AC/DC 200amp - Shop Soiled

TIG Welder  240V AC/DC 200amp - Shop Soiled

Enlarge Image

TIG Welder 240V AC/DC 200amp - Shop Soiled

CODE: TIG201-SS

Availability: In stock

Includes a R-Tech Pro remote foot pedal worth £142.80
0% Finance Available - Select pay by finance in checkout - Instant decision
£970.00 +VAT £1,164.00 Incl. VAT

* Required Fields

Paypal Visa American Express Mastercard

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 16mm

7mm Max Weld

This is maximum weld with 1 pass, if you do multiple passes you can weld up to 16mm
Welds ALL steels in DC mode, will also weld brass, copper & titanium

Weld Steel

Welds ALL steels in DC mode, will also weld brass, copper & titanium
AC Squarewave for welding aluminium alloys, AC Frequency adjustment up to 250hz gives a tight focused arc

Welds Aluminium

AC Squarewave for welding aluminium alloys, AC Frequency adjustment up to 250hz gives a tight focused arc
Description

Details

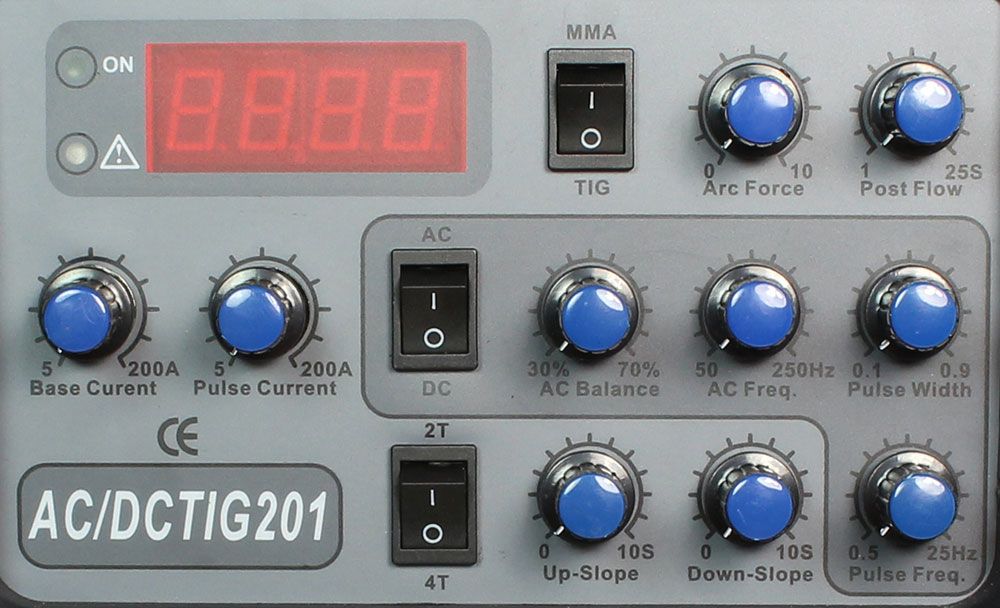

The TIG 201 AC/DC 200Amp Inverter TIG Welder features patented HF microstart, AC squarewave adjustment to 250hz, pulse welding, slope up/down, LED display and high 60% duty cycle at 200 amps
Tech Specs

Details

 Amperage range DC 10-200A,  AC 20-200A,   MMA 20-160A
 Duty cycle  TIG 200A 60% - MMA 160A 60%
 Input voltage/amps  240v 16A  - No load voltage 70v
 LED Display  Shows preset & actual amperage
 AC Frequency  20 - 250 Hz
 AC Balance  30 - 70 %
 Pulse amperage  10 - 200A
 Pulse Width  10 - 90 %
 Pulse Frequency  AC 0.5 - 25 Hz
 Post flow gas  0 - 50 seconds
 Slope up  0 - 5 seconds
 Slope down  0 - 5 seconds
 HF Start  Yes
 2T/4T Trigger  Yes - Trigger latching
 MMA Arc force  0 - 100 %
 Gross weight  22 KG
 Dimensions  515 x 220W x 395 (mm)
 Insulation class  IP21S
 240V Aux output  Yes - 240V output for optional water cooler
 Cooling fan  Yes - Cooling fan with thermostatic protection



Videos

Details

Warranty

Details

Reviews
Product reviews for TIG Welder 240V AC/DC 200amp - Shop Soiled (4)
Powered by
5 Stars
4
4 Stars
0
3 Stars
0
2 Stars
0
1 Star
0
Average rating
5 / 5
Calculated from 4 reviews
4 out of 4 reviews :
TIG Welder 240V AC/DC 200amp - Shop Soiled

i've been welding for 40 years and would pitch myself against anyone with a 3.2 rod, never done any TIG and felt I needed to while I can still see, totally different ball game and it seems preperation is everything with this, you can get away with anything with a rod, not this! Quality is second to none, I'm not good enough to make recocmendations, I just wanted to learn, its not something I need, just something I wanted.

TIG Welder 240V AC/DC 200amp - Shop Soiled

Not used much yet but very happy with performance so far.

TIG Welder 240V AC/DC 200amp - Shop Soiled

GREAT welder. Manly. Lots of adjustment. Welds great. I run this from a 16A 240v socket, no prob's. I have a 16A to 13A converter cable, which handles low current just fine. Really good welder, stable arc. Great duty cycle.

TIG Welder 240V AC/DC 200amp - Shop Soiled

Amazing.
