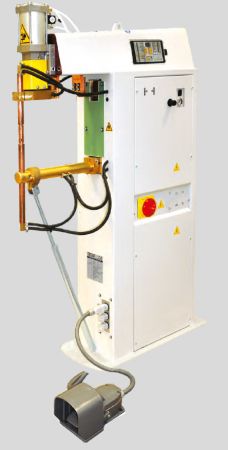

Spot Welder 50KVA Tecna Digital 4666 Linear

Spot Welder 50KVA Tecna Digital 4666 Linear

Enlarge Image
CODE: Tecna-4666

Availability: In stock

Spot Welder 50KVA Tecna Digital 4666 Linear

£6,993.00 +VAT £8,391.60 Incl. VAT
0% Finance Instant Decision Apply Online


The Tecna 4666 is a 50Kva Pneumatic Operated Digital Linear Spot Welder, Ideal for production spot welding, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty
  • Adjustable arms length
  • Electrode stroke, pressure, speed
  • Electric two stage foot pedal
  • Air filter/reducer, lubrication free cylinder
  • Requires 100Amp Delayed Trip/Fuse
  • Epoxy coated transformer
  • Water Cooled transformer, arms, electrodes & holder
  • Digital adjustment of weld cycles and welding power
  • Digital selection of: no weld, standard timer, timer with pulse
  • Carriage free to UK mainland
  • 1 Year warranty
Tech Specs


  • Input Voltage 415V 50 Hz
  • Requires 100Amp Delayed Trip/Fuse
  • Power @ 50% 50 kVA
  • Maximum Short Circuit Power 17KA
  • Arms Gap 280 mm
  • Throat Depth 400 mm
  • Force On Electrodes @ Max Length 470 dAN
  • Electrode Stroke @ Max 5 - 80 mm
  • Digital Welding Timer
  • Water Consumption l/h 150
  • Min Water Pressure Bar 2.5
  • Arms Diameter 50 mm
  • Electrode Holders Diameter 25 mm
  • Weight Kg 225
  • Dimensions (mm) 350W x 650D x 1062H
  • Carriage free to UK mainland
  • 1 Year warranty
