Spot Welder 20KVA Tecna Digital 4646 Pneumatic
Spot Welder 20KVA Tecna Digital 4646 Pneumatic
Spot Welder 20KVA Tecna Digital 4646 Pneumatic Spot Welder 20KVA Tecna Digital 4646 Pneumatic

Spot Welder 20KVA Tecna Digital 4646 Pneumatic

CODE
Tecna-4646
In stock
Order in for UK Mainland delivery between 13/10/2024 to 15/10/2024
£5,703.60 £4,753.00

Order by 3pm:

Next-day delivery

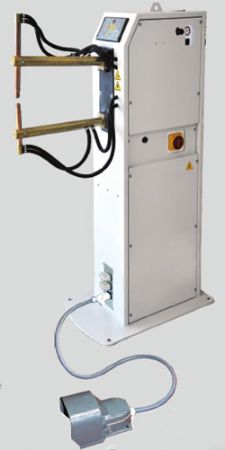

The Tecna 4646 is a 20Kva Pneumatic Operated Digital Spot Welder, Ideal for production spot welding, True 4+4mm capacity, Water Cooled Spot Welding Arms, Free delivery to UK Mainland and 1 year warranty
  • Adjustable arms length
  • Electrode stroke, pressure, speed
  • Electric two stage foot pedal
  • Air filter/reducer, lubrication free cylinder
  • Requires 40Amp Delayed Trip/Fuse
  • Epoxy coated transformer
  • Water Cooled transformer, arms, electrodes & holder
  • Digital adjustment of weld cycles and welding power
  • Digital selection of: no weld, standard timer, timer with pulse
  • Carriage free to UK mainland
  • 1 Year warranty
  • Input Voltage 415V 50 Hz
  • Requires 40Amp Delayed Trip/Fuse
  • Power @ 50% 20 kVA
  • Maximum Short Circuit Power 14.5KA
  • Arms Gap 225 mm
  • Min Throat Depth 230 mm
  • Max Throat Depth 550 mm
  • Force On Electrodes @ Max Length 95 dAN
  • Electrode Stroke @ Max 15 - 90 mm
  • Digital Welding Timer
  • Water Consumption l/h 150
  • Min Water Pressure Bar 2.5
  • Arms Diameter 36 mm
  • Electrode Holders Diameter 19 mm
  • Weight Kg 141
  • Dimensions (mm) 320 x 800 x 1230
  • Carriage free to UK mainland
  • 1 Year warranty
