Welding Fume Extractor LEV Unit 110V ProtectoXtract

Welding Fume Extractor LEV Unit 110V ProtectoXtract

Enlarge Image

Welding Fume Extractor LEV Unit 110V ProtectoXtract


Pre-Order - Call for Availability

£1,595.00 +VAT £1,914.00 Incl. VAT

Paypal Visa American Express Mastercard

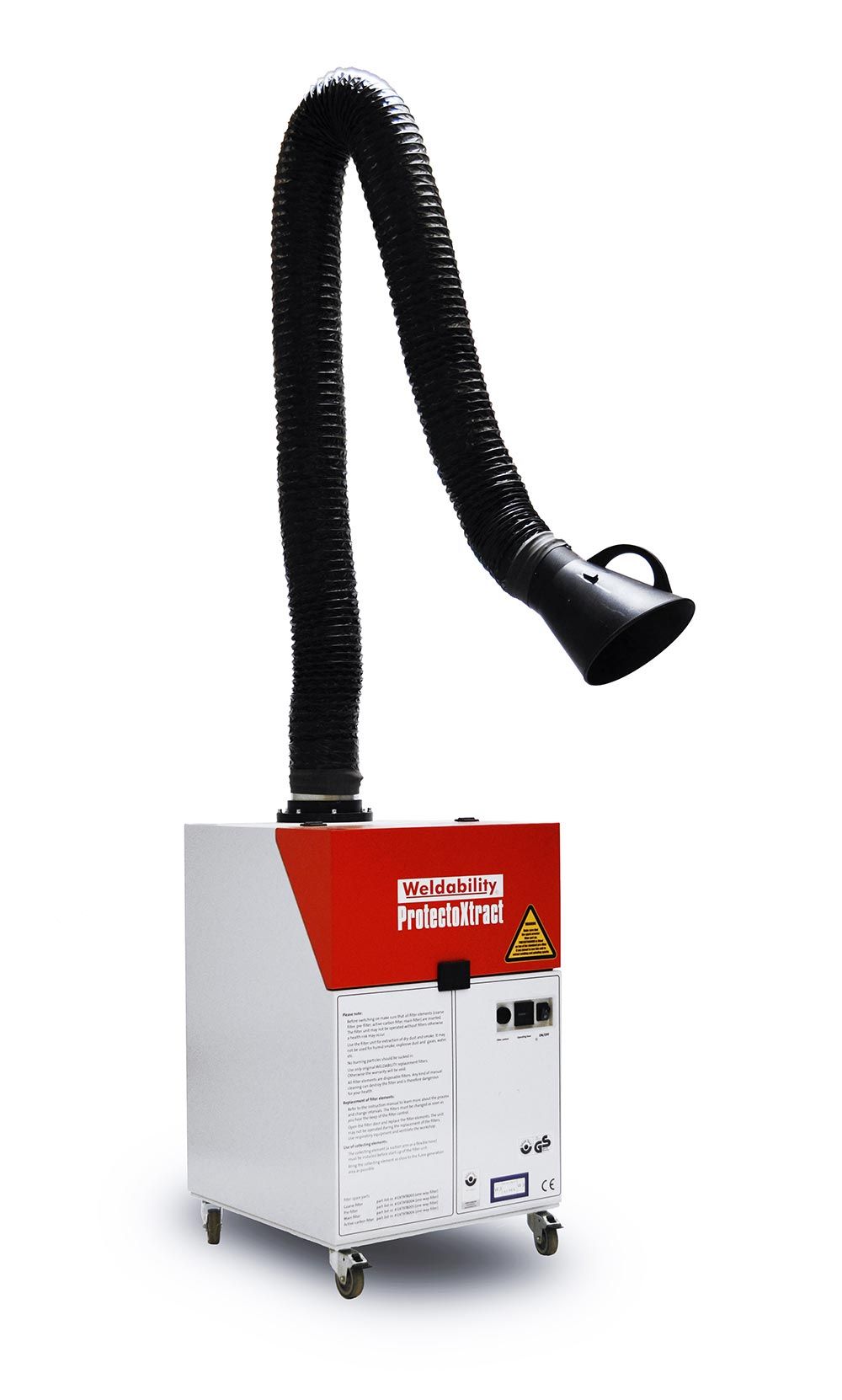

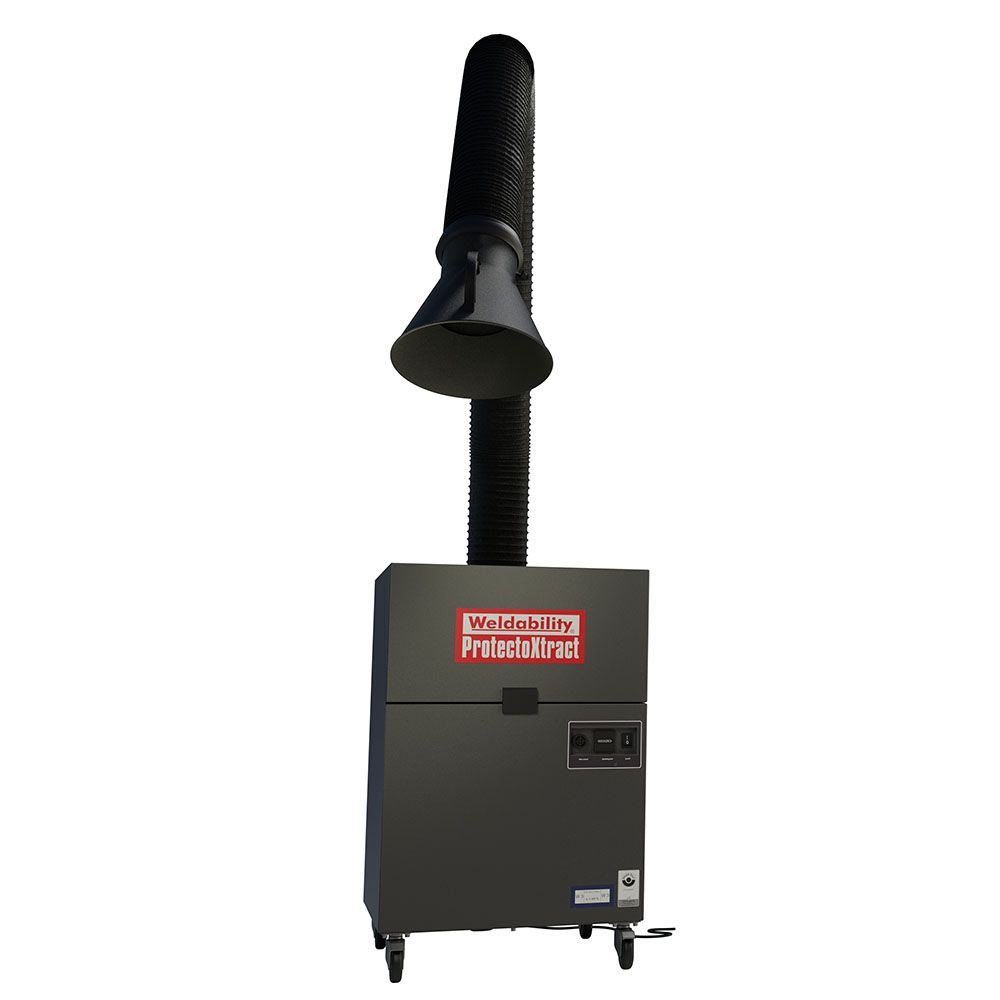

ProtectoXtract is a BGIA approved mobile high-vacuum LEV extraction system for filtration of welding particulate fumes, dusts and some gases. The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation 68dBA.

The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes >30 NiCr. The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability. Operates from a 110v mains input supply.

IMPORTANT -As of 08/04/2019 the ProtectoExtract is now supplied with a ProtectoSpark unit as standard (ProtectoSpark Filter EXT978013); it must be used.

The ProtectoXtract should NOT be used for filtering fumes containing oil, solvents, explosive dusts/gases or hybrid mixtures of wastes, etc.

  • High-quality LEV welding fume extractor meeting new HSE 2019 guidelines
  • Washable aluminium filter - Clean as and when required
  • Gross filter - 50 operating hours
  • Pre-filter - 100 operating hours
  • Main filter - 100 operating hours
  • Activated carbon filter - 200 operating hours
Tech Specs


  • Extraction Capacity
    115v : 1600 m3/h
    230v : 1600 m3/h
  • Filter Efficiency
  • Motor Power
  • Noise Level
    68 dB(A)
  • Weight
    80 kg (without arm)
  • Dimensions
    580mm x 580mm x 900mm (D x W x H)
  • IP Rating / ISO Class
    IP 54 / F




View File
Protecto Extract Data Sheet
View File
ProtectoXtract Operation Manual
View File
Extractability Brochure and Buying Guide
