Welding Fume Extractor LEV Unit 230V ProtectoXtract
Welding Fume Extractor LEV Unit 230V ProtectoXtract
Welding Fume Extractor LEV Unit 230V ProtectoXtract

Welding Fume Extractor LEV Unit 230V ProtectoXtract

4.33/5
CODE
WA-EXT1MOB230
In stock
Now includes ProtectoSpark kit as standard.
Order in for UK Mainland delivery between 18/12/2024 to 20/12/2024
£2,340.00 £1,950.00

Order by 3pm:

Next-day delivery

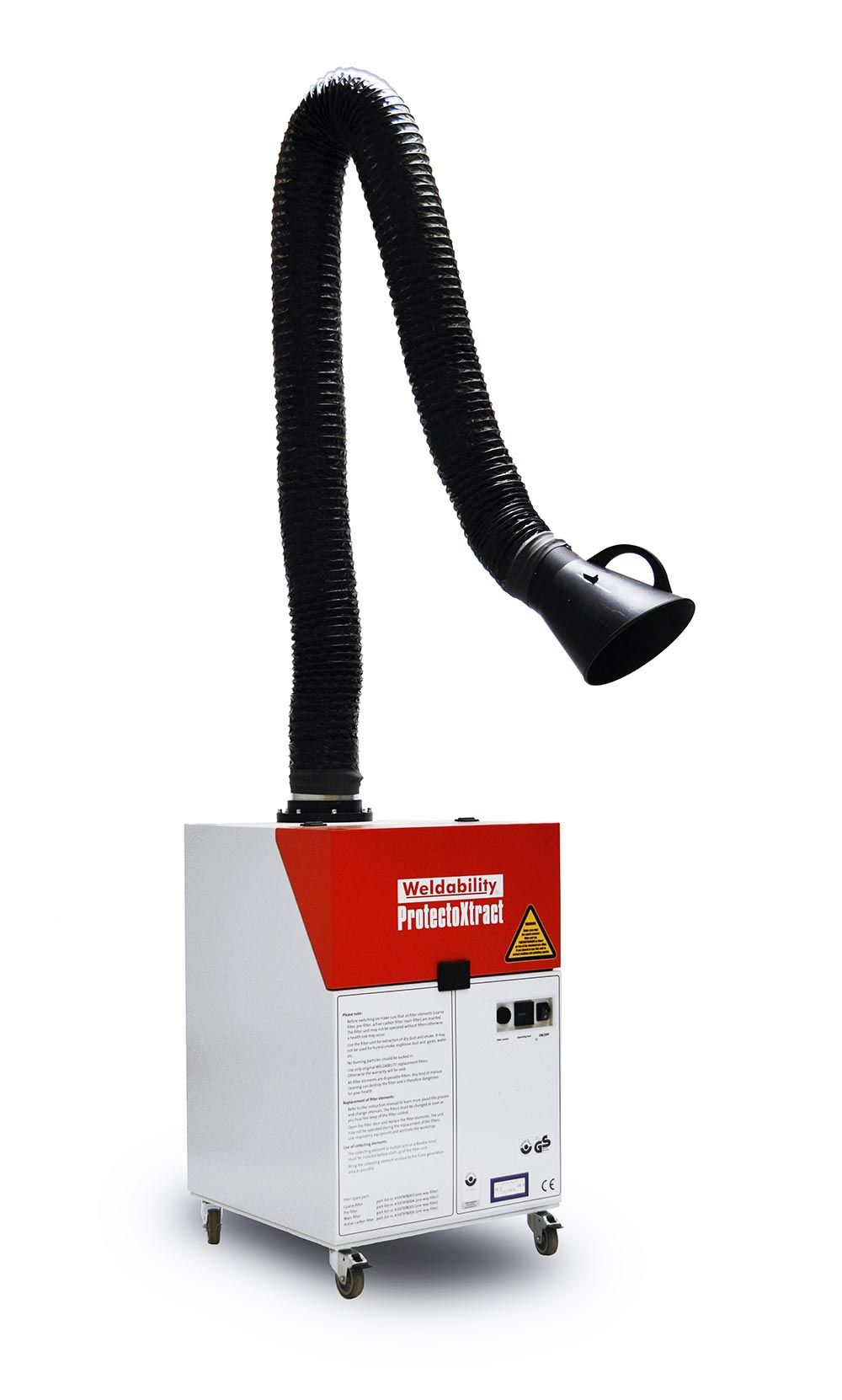

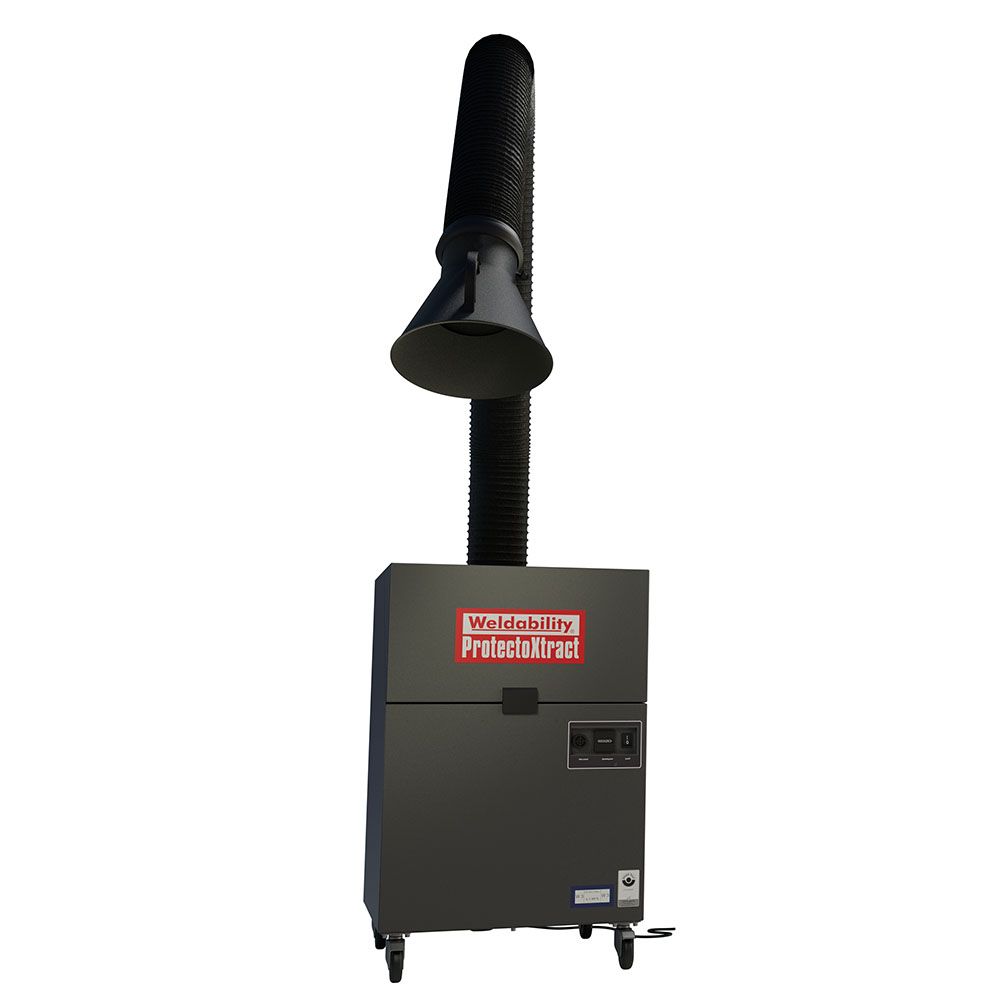

ProtectoXtract is a BGIA approved mobile high-vacuum welding fume extraction system for filtration of particulate fumes, dusts and some gases. The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation 68dBA.

The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes >30 NiCr. The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability. Operates from a 230v mains input supply.

IMPORTANT - As of 08/04/2019 the ProtectoExtract is now supplied with a ProtectoSpark unit as standard (ProtectoSpark Filter EXT978013); it must be used.

The ProtectoXtract should NOT be used for filtering fumes containing oil, solvents, explosive dusts/gases or hybrid mixtures of wastes, etc.

  • High-quality LEV welding fume extractor meeting new HSE 2019 guidelines
  • Washable aluminium filter - Clean as and when required
  • Gross filter - 50 operating hours
  • Pre-filter - 100 operating hours
  • Main filter - 100 operating hours
  • Activated carbon filter - 200 operating hours

Extraction Capacity
115v : 1600 m3/h
230v : 1600 m3/h


Filter Efficiency
>99%


Motor Power
1.1kW


Noise Level
68 dB(A)


Weight
80 kg (without arm)


Dimensions
580mm x 580mm x 900mm (D x W x H)


IP Rating / ISO Class
IP 54 / F

View File
Protecto Extract Data Sheet
Download
View File
ProtectoXtract Operation Manual
Download
View File
Extractability Brochure and Buying Guide
Download
Product image

GOOD

Welding Fume Extractor LEV Unit 230V ProtectoXtract

product reviews 3
product rating 4.33/5
product experience

calculated from 3 customer reviews

positive
100%
Neutral
0%
negative
0%

latest reviews

  • 20 October 2022
    The only problem with this product is a lack of instructions, how to fit the dust and spark parts, we worked it out by trial and error
  • 20 February 2019
    we use it with extracting fumes when welding other engineering companies that weld the product is very high standard quality
  • 06 February 2019
    Seems good value and seems to work well.
