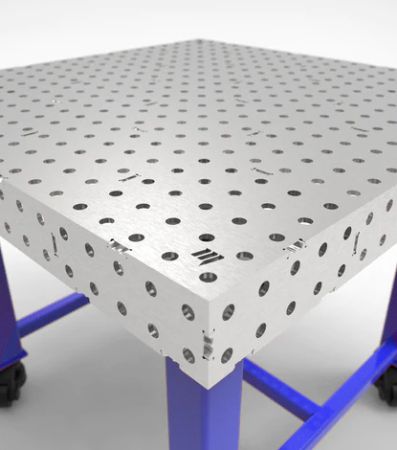

Mac MidiPRO - Modular Fixture Welding Table - 1800 x 900mm

CODE
MAC-MIDIPRO-1800x900
In stock
Order in for UK Mainland delivery between 16/07/2024 to 25/07/2024
£873.84 £728.20

Order by 3pm:

Next-day delivery
Mac MidiPRO - Modular Fixture Welding Table - 1800 x 900mm
Mac MidiPRO - Modular Fixture Welding Table - 1800 x 900mm
Mac MidiPRO - Modular Fixture Welding Table - 1800 x 900mm
This is really a PRO table just with a smaller side skirt, Just as true and strong as the PRO but with 100mm side skirts and rib subframe and had the option of being extend. Various sizes availible and lighter on the wallet.
Unlike other imports and cheap constructions we design superior sub-frame cross bracing as this is the most critical part of the table to ensure a truly flat and accurate fabrication table. We design, test and manufacture everything in house and the UK to maintain a high quality of control.

All of our tables and tool include the industry standard 16mm hole pattern (50mm hole centres) to work with all industry fixture 16D tooling.

We only use Hot Rolled, Pickled and Oiled S275 structural mild steel. What this means is just after the production the sheet steel is run through an acid bath (Pickling) to remove any impurities, rust and mill scale from the surfaces of the steel. This leaves the sheet raw and unprotected so a light coving of oil is used to protect it. Using HRPO is nicer for our fibre laser cutter as the laser doesn’t need to cut through mill scale and impurities which can and eventually affect the accuracy of the laser cutter therefore using HPRO Steel gives you precision cut parts which in our opinion they looks more awesome than the dreaded mill scale.

MidiPRO Build Options:
  • Ready Made: We will assemble, weld and quality check your item.
  • Ready Made (Legs): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on.
  • Ready Made (Legs & Castors): As above but we will cut, assemble and weld your leg kit along with your table top. You will receive your table welded up but legs will require bolting on and castors fitted.

  • Leg Kit Spec : 70x70x3 legs / NO bracing Supplied as standard – Mild steel
  • Castors: 1000kg Foot Master Type Leveling Castors
  • All Mac Industries “MidiPRO” Fixture Welding tables come with a 100mm fixture skirt/sides with 16mm holes at 50mm centres. (2x holes deep)
  • Engineered in house with our Mac waved key and slots interlock
  • 16mm securing hole 50mm apart on centres to work with all 16mm tooling and tables
  • Super strong Interlocking sub-frame every 4/5 holes spacing
  • ALL parts from 6mm thick S275 HRPO structural grade mild steel
  • We are very proud to guarantee a tolerance of +/- 0.2mm of all our laser cutting.
  • 16mm holes on 50mm centres work with industry standard 16mm & 5/8" tools. Optional threaded holes and other sizes available.
  • Using our large range of welding table tooling, squares, stops, blocks and more, you can adapt the size and shape of your welding fixture table to suit your fabrication needs.
  • Foot Master Type Leveling Castor feet.
  • Design, Manufactured in the UK
