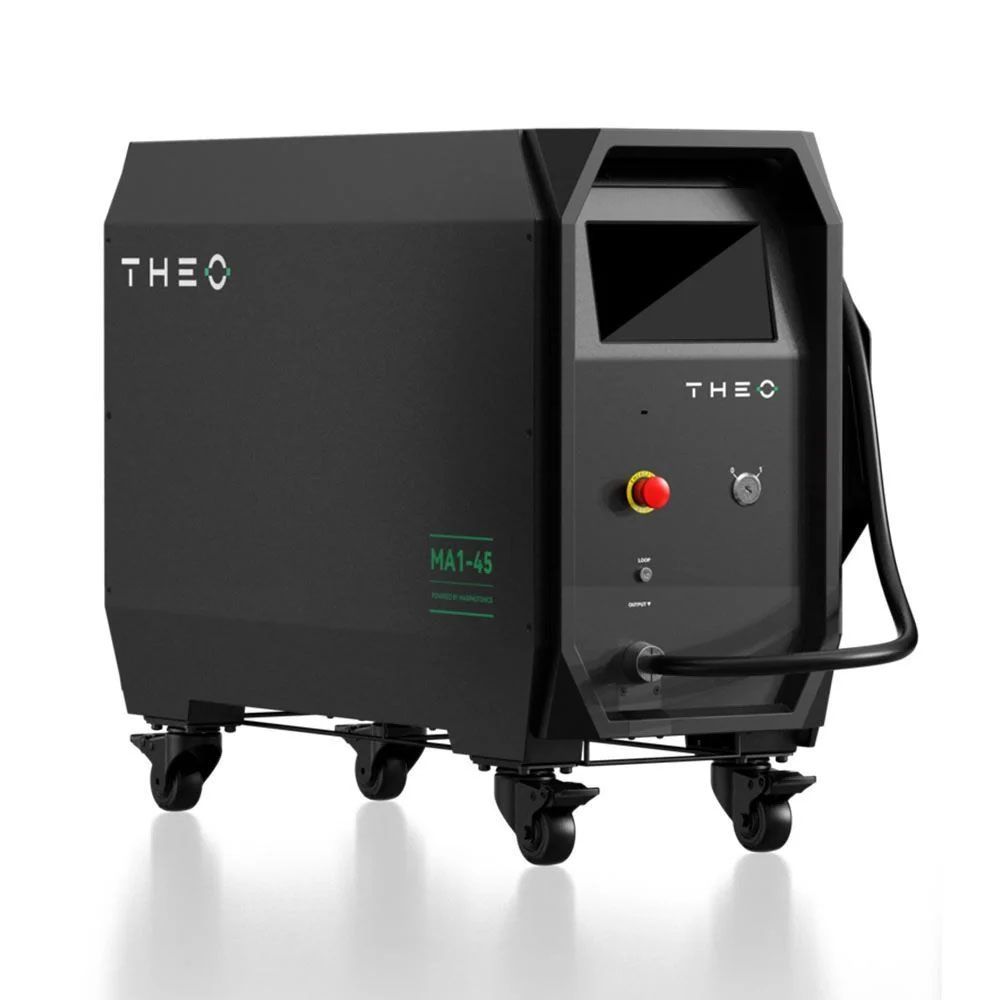

Max Photonics THEO Laser Welder 1200W
Max Photonics THEO Laser Welder 1200W
Max Photonics THEO Laser Welder 1200W Max Photonics THEO Laser Welder 1200W Max Photonics THEO Laser Welder 1200W Max Photonics THEO Laser Welder 1200W

Max Photonics THEO Laser Welder 1200W

CODE
WS-MA1-45
In stock
Order in for UK Mainland delivery on 26/02/2026
£16,798.80 £13,999.00

Order by 3pm:

Next-day delivery
Explore the efficiency and precision of Theo Fibre Laser Technology from Max Photonics; an absolute game-changer in the welding industry. Experience fast welding speeds that are up to 4 times faster than TIG, alongside minimal heat affected zones and material distortion, ensuring high precision and neat welding seams every time. It's not just about speed, it's about efficiency too - with low consumable usage and efficient energy usage, saving you time and money.

Discover the great leap in productivity with high repeatability and reduced post-weld cleaning times. This technology offers easy-to-use features with minimal training required. Benefit from the versatility of being able to weld various materials, including dissimilar ones, enhancing your production efficiency even further.

Theo laser systems are not just about excellent performance, you also benefit from reduced application costs and improved production efficiency, making your operations smoother and more cost-effective.

Whether you are in the nuclear, aerospace, pharmaceutical or catering industry, Theo is your go-to solution for sheet metal fabrication. This technology is not just an addition, but a great supplement to conventional welding methods in most fabrication workshops.

Showcasing commitment to progress, Max Photonics continually invests in R&D to drive technological advancements and product innovation. With six layers of safety protection and a simple operating system, Theo offers easy installation and operation at your fingertips.

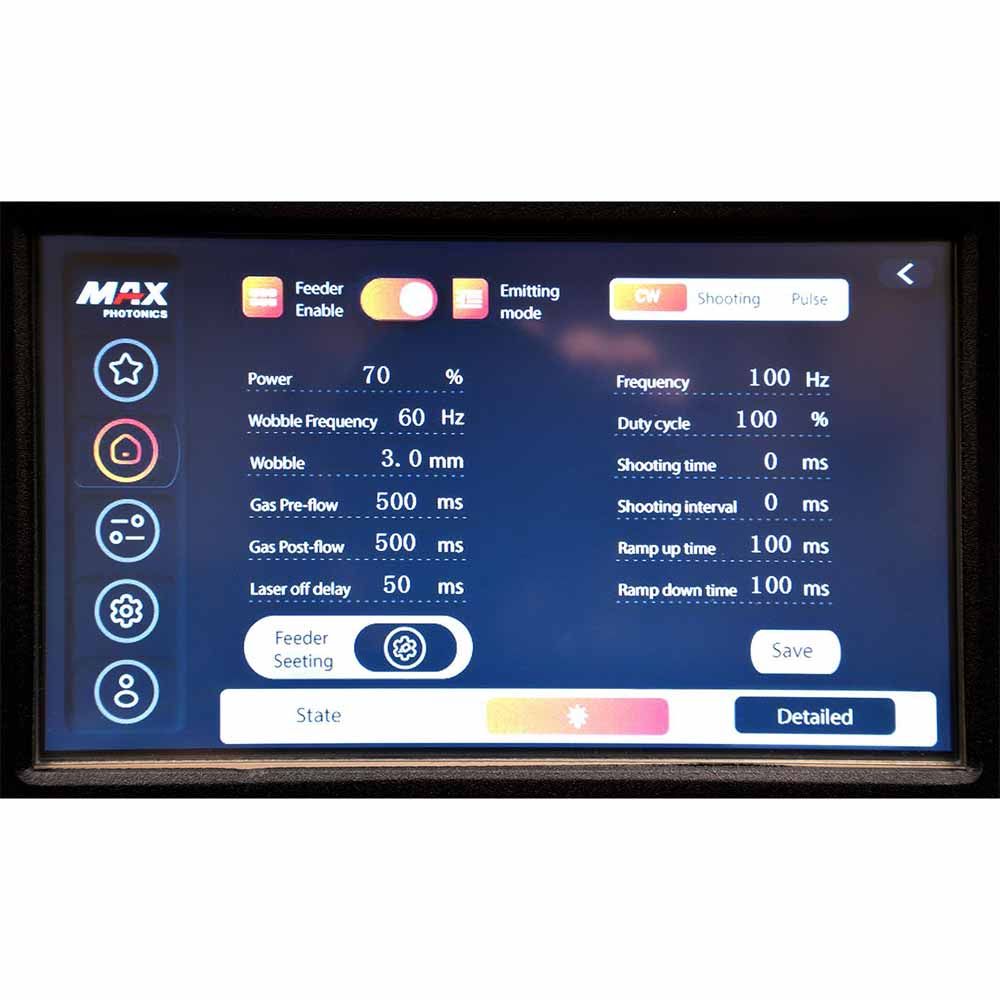

Additionally, the bespoke wire feed unit, external 7" touch screen interface with dual-channel safety interlock, and the inclusion of a 5.6m torch, just amplify your welding experience. We proudly offer product demonstrations so you can witness first-hand the power, precision and the multitude of benefits you get with a Theo laser welding system.

Experience peace of mind with a product that fully complies with CE, UKCA, Intertek, and RoHS regulations. This not only means that our product meets all safety and environmental standards but also ensures its superior quality. To give you that extra assurance, we also offer a 2-year warranty. This top-tier compliance and warranty protection make our product a risk-free investment for you. Experience uncompromised safety, quality and reliability today!
  • Portable design

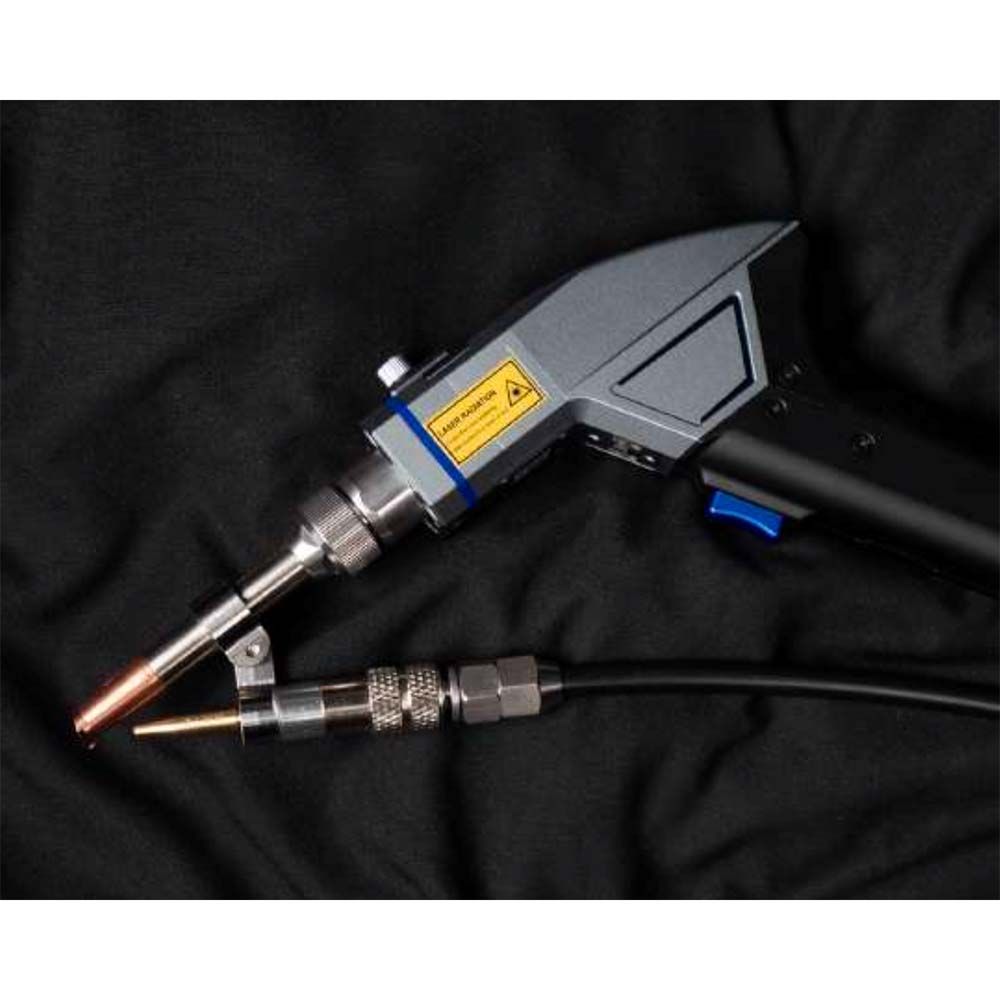

  • Compact handheld welding torch
  • Stable performance and reliable quality
  • Six layers of safety protection
  • Simple operating system
  • Easy installation and operation

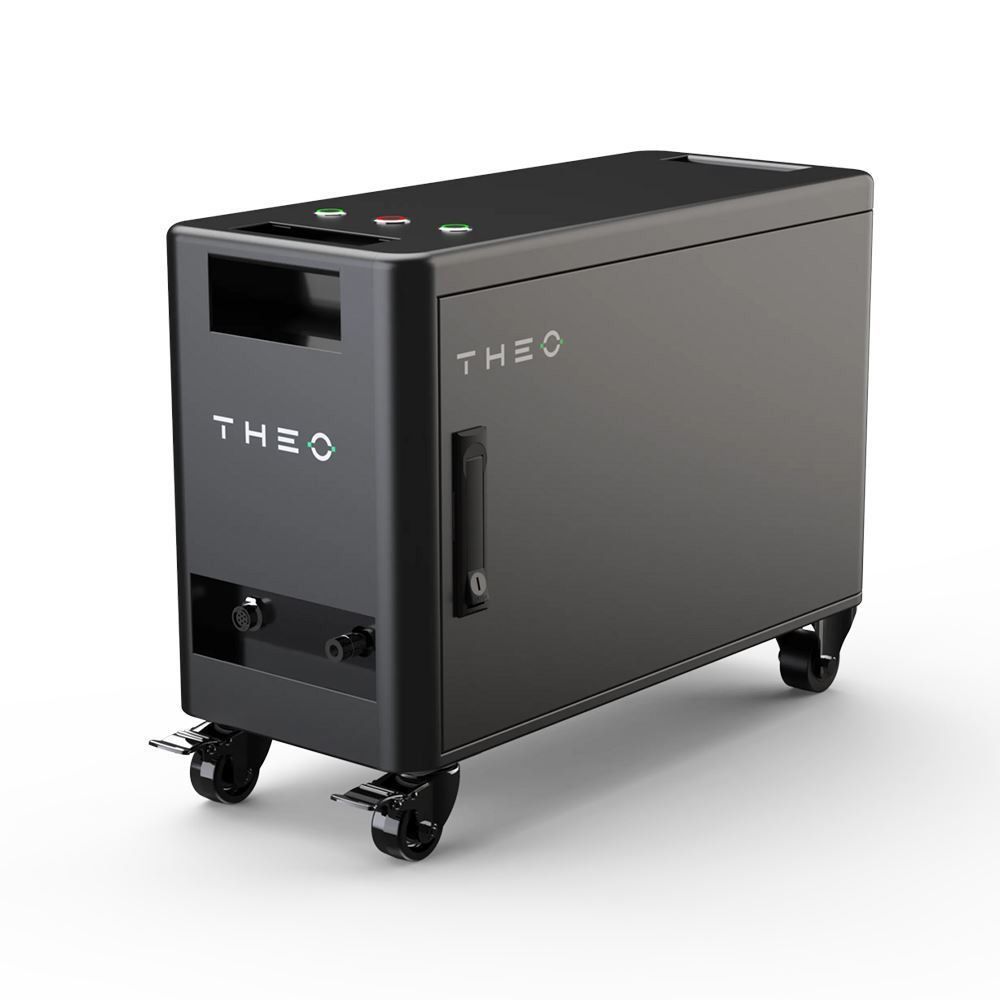

  • Bespoke wire feed unit
  • External interface with dual channel safety interlock • Includes 5.6m torch
  • Product demonstrations available



Weld Thickness (mm)

Stainless Steel 4.5
Carbon Steel / Iron 4.5
Aluminium 4.0
Galvanised Sheet 4.5
Brass 3.5
Copper 1.5
 Input Power 230Vac / 50Hz / 32A (Max 4.8KW)
Operating Ambient Temperature (°C) 0 - 40°C
Operating Ambient Humidity 10 - 85%
Storage Tempature (°C) -10 - 60°C
Output (100% CW) 1200W
Power Regulation Range 10 - 100%
Laser Cooling Method Phase change heat dissipation (air)
Tip Cooling Method Nitrogen / Argon
Operation Mode CW / Modulated
Polarisation Random
Central Wavelength 1080 nm
Fibre Width 20µm
Wobble Width 0 - 4mm
Wobble Frequencey 0 - 280Hz
Continuous Light Output Time (S) Light 120S, Stop 6S
Weight 38 KG
Dimensions 667 x 276 x 542 mm
Length of Optical Fibre Armoured Cable 5.6m
View File
THEO Laser Welder Booklet V2 Jan 25
Download
View File
MA1 Series Handheld Laser Welding Machine User Guide
Download
