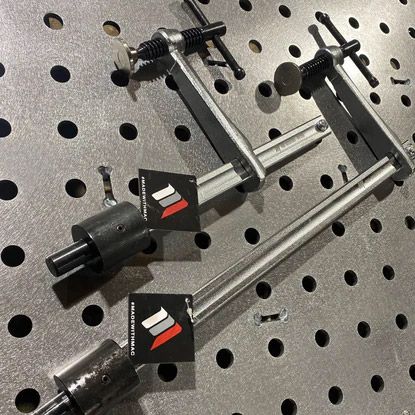

MAC - Strong 150mm / 300mm T-Handle 16D Fixture Table Weld Clamp
CODE
MAC-MIC
Pre Order
MAC 16D Fixture Clamps slot into the Ø16 mm holes on the our MiniPRO, MidiPRO,MaxPRO & Hobby Tables plus all our tooling with a 16mm holes.
- Clamp in the vertical or horizontal position at any height.
- Compatible with all MacIndustries tables and Tooling utilising Ø16 mm holes.

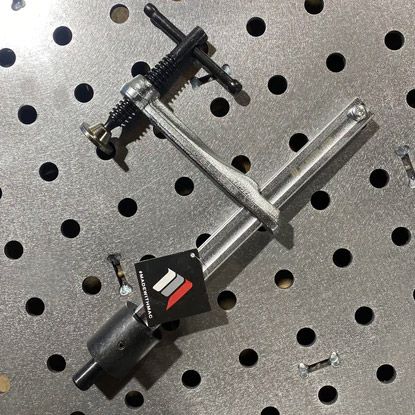

- 150mm Technical Specification:
- Clamping Capacity: 150 mm
- Throat Depth: 120 mm
- Clamping Pressure: 135 kg
- Rail Size: 22 x 8 mm

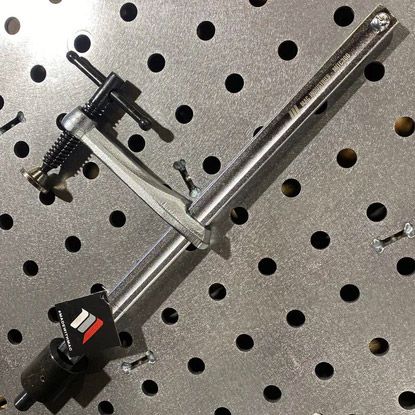

- 300mm Technical Specification:
- Clamping Capacity: 300 mm
- Throat Depth:120 mm
- Clamping Pressure: 135 kg
- Rail Size: 22 x 8 mm
