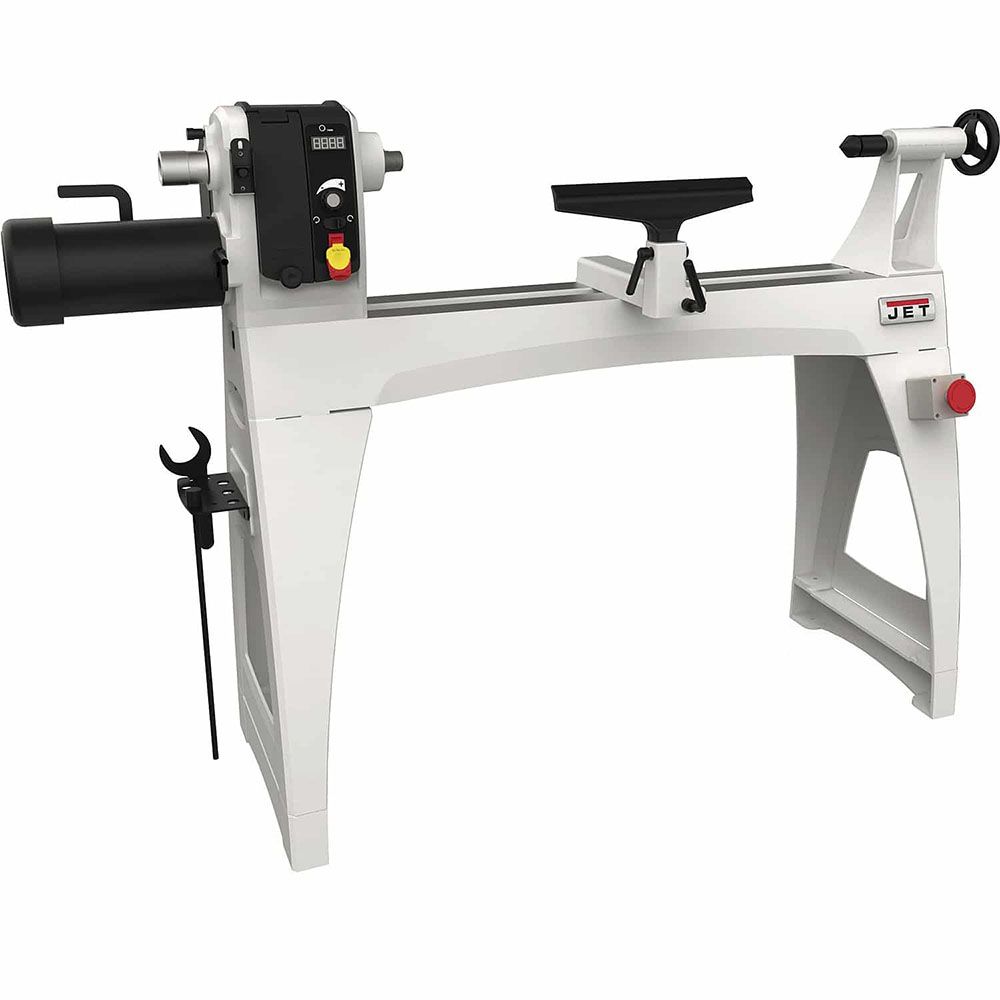

JET Wood Lathe JWL-1840EVS-M
CODE
TF-JWL-1840EVS-M
In stock
JET Wood Lathe JWL-1840EVS-M
- Machine height ergonomically adjustable using the 100mm cast iron risers and levelling feet supplied
- Emergency stop switch can be positioned as needed with the magnet on the machine bed
- The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
- The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
- Infinitely variable, adjustable speeds using a frequency converter, from 40–3’200rpm with 2 belt speeds
- Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
- Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
- Spindle lock for two-handed changing of the faceplate and turning chuck
- The 36-hole spindle indexing device integrated in the pulley enables many types of decorative work
- Motor (V/kW) 230/2.4
- Swing over bed (mm) 470
- Swing over tool rest base (mm) 360
- Centre distance (mm) 970 (1’025 with short trading grains)
- Spindle speeds (rpm) 40 – 3’200, variable
- Spindle nose M33 x 3.5
- Spindle index lock 36 x °10
- Headstock spindle taper MT2
- Tailstock spindle taper MT2
- Tailstock hole diameter (mm) 9
- Tailstock ram travel (mm) 108
- Steel support (mm) 350/25.4
- Centre above floor min/max (mm) 995/1’130
- Dimensions (mm) 1’854 x 508 x 1’334
- Weight (kg) 190
