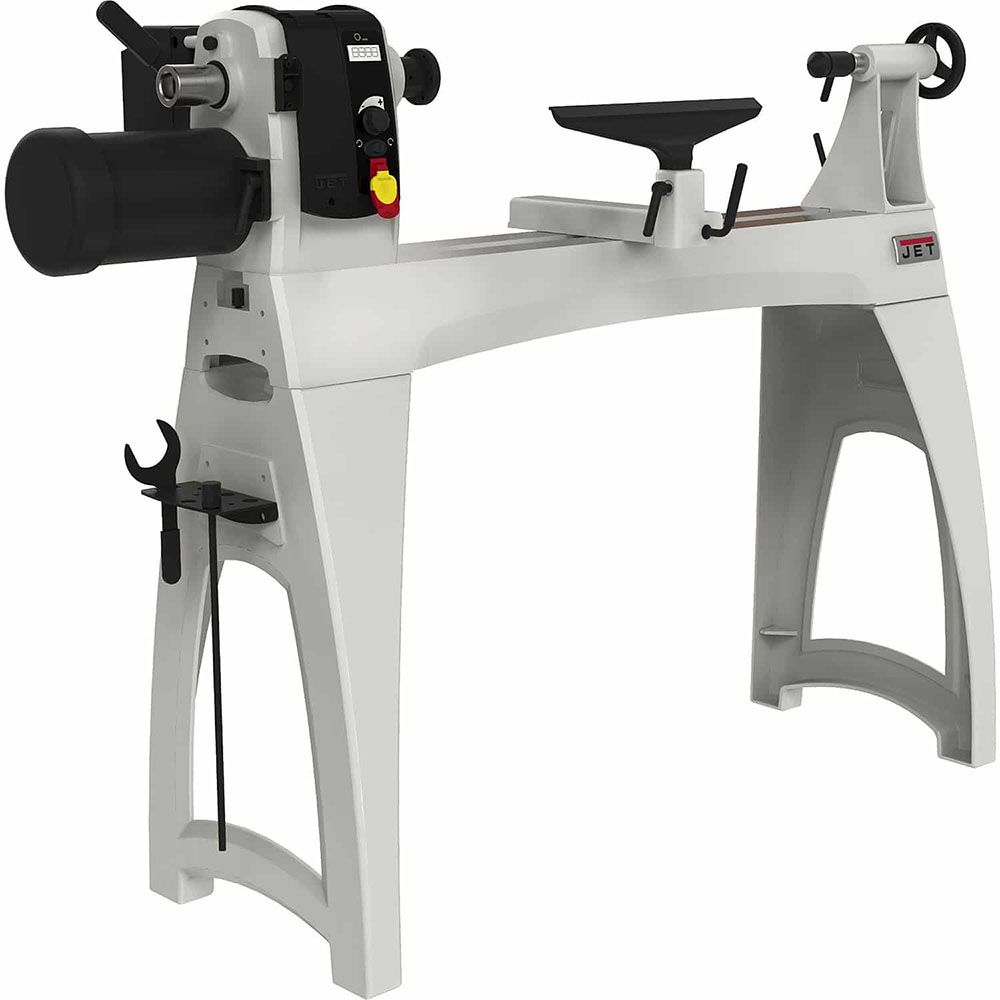

JET Wood Lathe JWL-1640EVS-M
CODE
TF-JWL-1640EVS-M
In stock
JET Wood Lathe JWL-1640EVS-M
- The headstock moves across the whole machine bed and pivots by 360° for maximum versatility
- The main spindle is supported on three bearings for greater rigidity and load-bearing capacity
- Infinitely variable, adjustable speeds using a frequency converter, from 40–3’200 rpm with 2 belt speeds
- Tailstock with heavy-duty Acme thread, quill with anti-rotation key, with mm scale
- Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
- Spindle lock for two-handed changing of the faceplate and turning chuck
- Integrated spindle indexing device 36—10° for hole patterns and decorative work
- Motor (V/kW) 230/1.8
- Swing over bed (mm) 418
- Swing over tool rest base (mm) 325
- Centre distance (mm) 940 (990 with short trading grains)
- Spindle speeds (rpm) 40 – 3’200, variable
- Spindle nose(mm) M33 x 3.5
- Spindle index lock 36 x 10°
- Headstock spindle taper MT2
- Tailstock spindle taper MT2
- Tailstock hole diameter (mm) 9
- Tailstock ram travel (mm) 108
- Steel support (mm) 350/25.4
- Dimensions (mm) 1’854 x 508 x 1’334
- Weight (kg) 170
