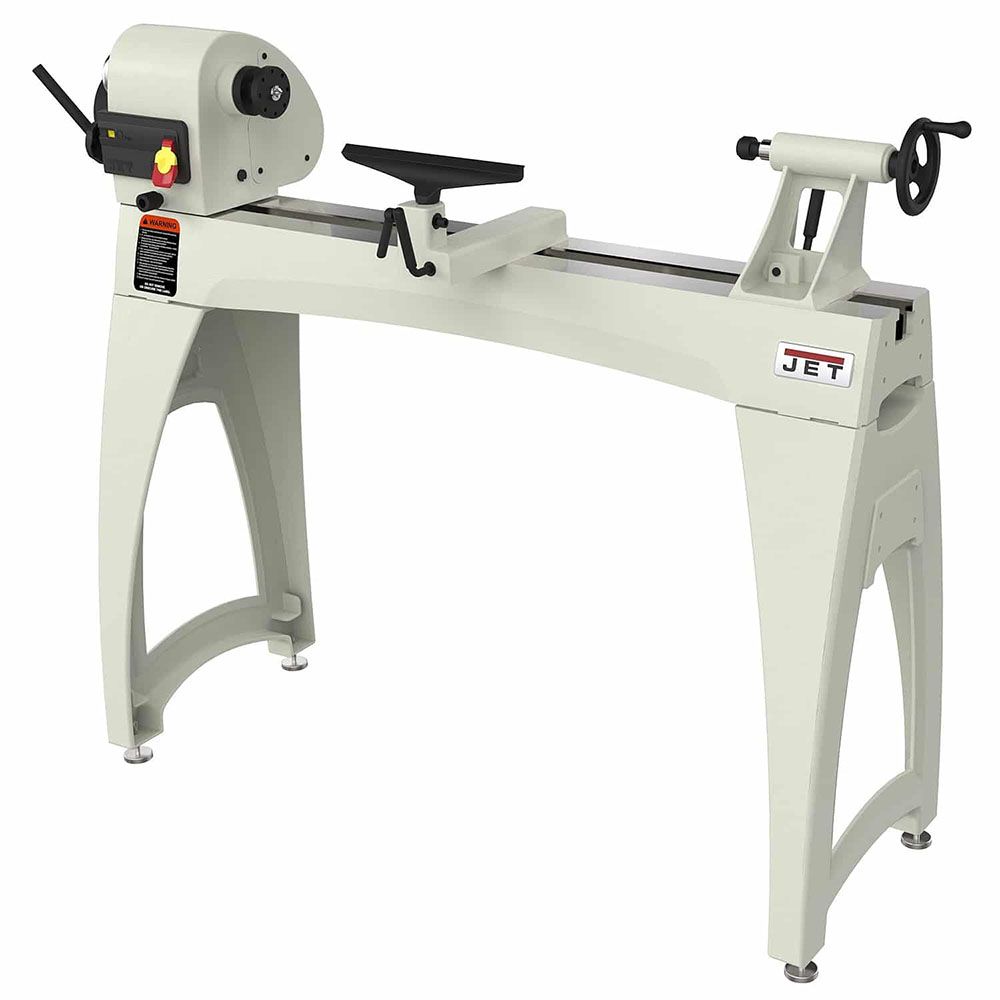

JET Wood Lathe JWL-1440VS-M
CODE
TF-JWL-1440VS-M
In stock
JET Wood Lathe JWL-1440VS-M
- Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
- Headstock moves across the entire machine bed, pivots by 360° with locking positions at 0° / 30° / 60° / 90° / 135° / 180° / 270°
- Infinitely variable speed control with twist handle at the headstock end, infinitely adjustable from 280 to 2’500rpm
- Spindle lock on the front of the headstock to easily change the faceplate and turning chuck
- Double-wedge clamping for tool rest and extension, load-bearing, efficient, holds position securely
- Tailstock with heavy-duty Acme thread, 108mm quill stroke with scale, 9mm through-hole
- Integrated spindle indexing device 36—10°
- Motor (V/kW) 230/1.3
- Swing over bed (mm) 370
- Swing over tool rest base (mm) 280
- Centre distance (mm) 1’016
- Spindle speeds (rpm) 280 – 2’500, variable
- Spindle nose M33 x 3.5
- Spindle index lock 36 x 10°
- Headstock spindle taper MT2
- Tailstock spindle taper MT2
- Tailstock hole diameter (mm) 9
- Tailstock ram travel (mm) 108
- Steel support (mm) 300/25.4
- Dimensions (mm) 1’850 x 535 x 1’250
- Weight (kg) 165
