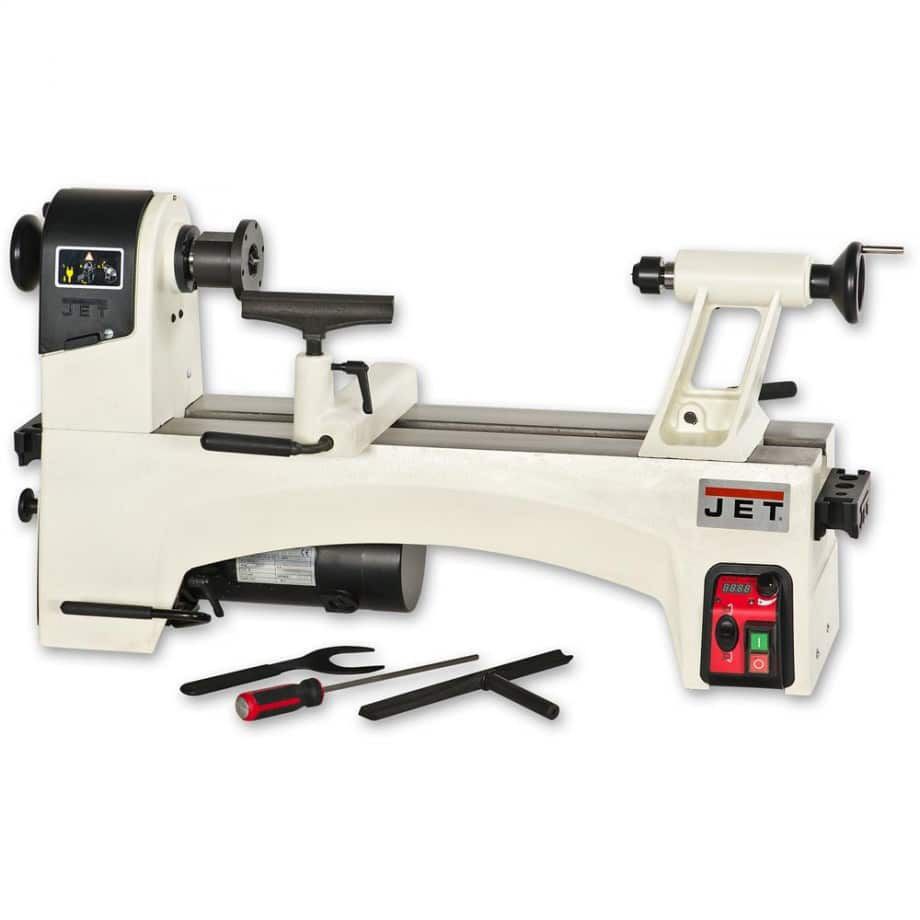

JET Wood Lathe JWL-1221VS
CODE
TF-JWL-1221VS
In stock
JET Wood Lathe JWL-1221VS
- Heavy, extra-wide cast iron machine bed for the ultimate in smooth operation and stability when working on unbalanced pieces
- Infinitely variable speed control with 3 belt speeds, from 60 to 3’600rpm (JWL-1221VS-M)
- Smooth shift from forward to reverse running, digital speed display
- The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces (JWL-1221VS-M)
- Smooth-running poly-v belt drive suitable for continuous operation, patented one-handed quick-tensioning belt system
- Integrated spindle indexing device 24—15° for hole patterns and decorative work
- Spindle lock on the front of the headstock to easily change the face plate and turning chuck
- Tailstock quill with 9mm hole allows material to be drilled through
- Three spindle speeds: 60–900 / 110–1’800 / 220–3’600 (JWL-1221VS-M)
- Motor (V/kW) 230/0.73
- Swing over bed (mm) 318
- Swing over tool rest base (mm) 240
- Centre distance (mm) 500
- Spindle speeds (rpm) 60 – 3’600, variable
- Spindle nose M33 x 3.5
- Spindle index lock 24 x 15°
- Headstock spindle taper MT2
- Tailstock spindle taper MT2
- Tailstock hole diameter (mm) 9
- Tailstock ram travel (mm) 57
- Steel support (mm) 150 + 250 / 15.9
- Dimensions (mm) 900 x 360 x 530
- Weight (kg) 55
