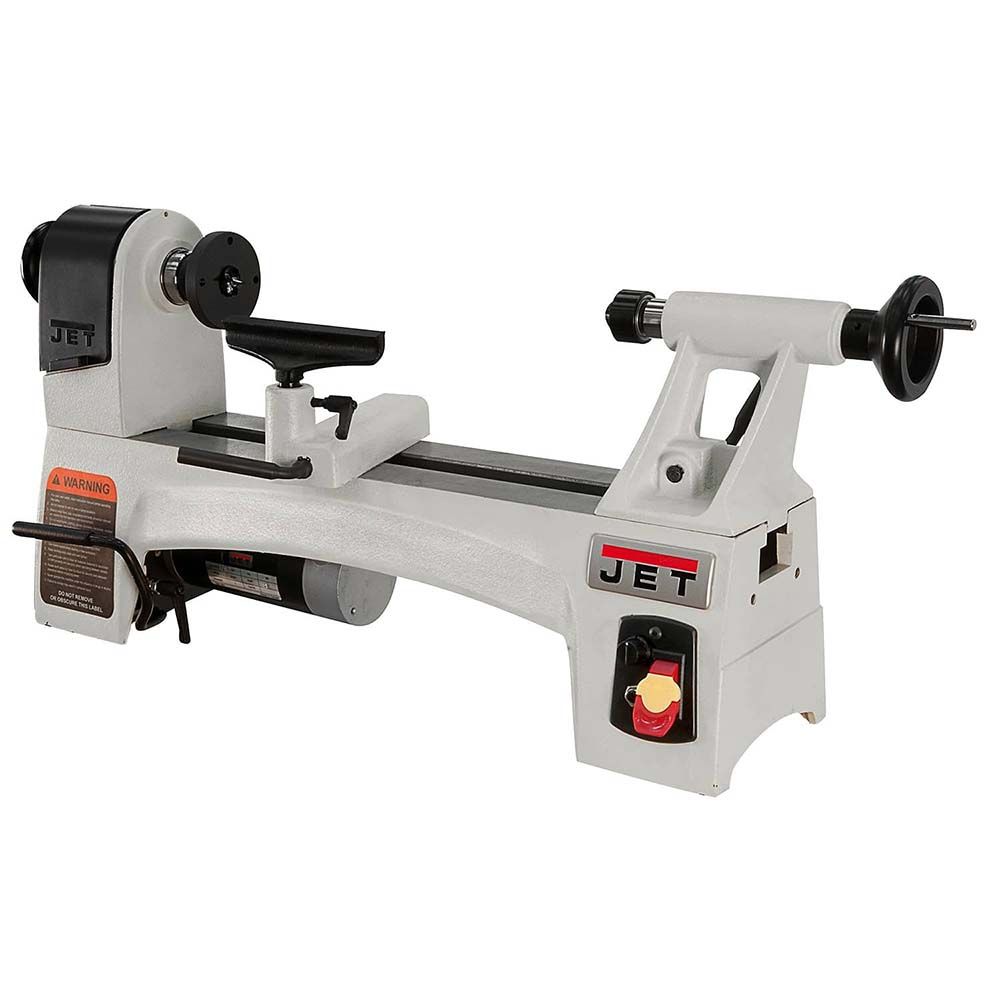

JET Wood Lathe JWL-1015VS
CODE
TF-JWL-1015VS
In stock
JET Wood Lathe JWL-1015VS
- Heavy, extra-wide cast iron machine bed (GG-20) for the ultimate in smooth operation and stability when working on unbalanced pieces
- Six spindle speeds: 400, 700, 1’000, 1’500, 2’200 and 3’300rpm (JWL-1015-M)
- Infinitely variable speed control with 3 belt speeds, from 200 to 3’600 rpm (JWL-1015VS-M)
- The Smart Control electronic control system ensures maximum torque, beneficial for turning large pieces (JWL-1015VS-M)
- Easy belt access from the front, simple belt tensioning system
- Poly-v belt drive, quiet and suitable for continuous operation
- Integrated spindle indexing device 24—15°
- Tailstock quill with 9mm hole allows material to be drilled through
- Quick-release lever for simple and accurate positioning of tool rest and tailstock
- Motor (V/kW) 230/0.5
- Swing over bed (mm) 254
- Swing over tool rest base (mm) 186
- Centre distance (mm) 368
- Spindle speeds (rpm) 400 / 700 / 1’000 / 1’500 / 2’200 / 3’300
- Spindle nose M33 x 3.5
- Spindle index lock 24 x 15°
- Headstock spindle taper MT2
- Tailstock spindle taper MT2
- Tailstock hole diameter (mm) 0
- Tailstock ram travel (mm) 50
- Steel support (mm) 150/15.9
- Dimensions (mm) 775 x 300 x 445
- Weight (kg) 33
