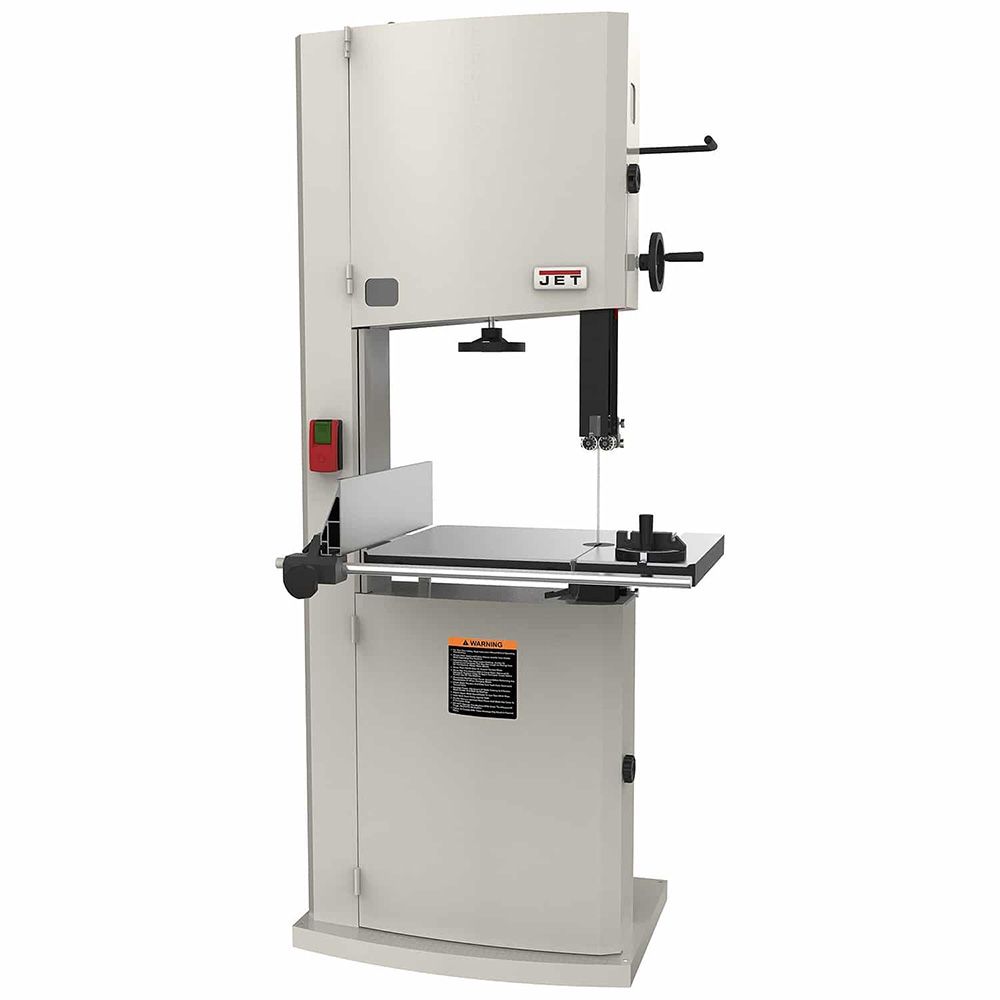

JET Wood Bandsaw JWBS-20-T
CODE
TF-JWBS-20-T
In stock
JET Wood Bandsaw JWBS-20-T
- The powerful 3.7kW (5hp) motor provides reserves for difficult crosscuts and in continuous operation
- Precision-planed cast iron table for added stability and workpiece support
- Saw blade quick release and tensioning system
- Two cutting speeds (640, 1’200m/min) for working efficiently with hard and softwoods
- Electro-mechanical motor brake
- Tool-free, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
- Sturdy parallel fence with integrated fine tuning, operated on a round rod
- Heavy-duty guide post adjusted via a toothed rack and handwheel for optimal saw blade support
- Solid construction, stable and torsionally rigid
- Motor (V /kW) 400 /3.7
- Wheel diameter (mm) 514
- Max. cutting height /-resaw capacity (mm) 406 /508
- Table tilt 5° left, 45° right
- Table size (mm) 690 x 808
- Blade speed (m /min) 640 /1’200
- Saw blade (mm) 4’013
- Saw blade width min /max. (mm) 3 /38
- Blade guide – Ball bearing
- Table height from floor (mm) 940
- Miter t-slot (mm) 19 x 9
- Dimensions (mm) 940 x 845 x 2’235
- Weight (kg) 276
- Dust port (mm) 100
