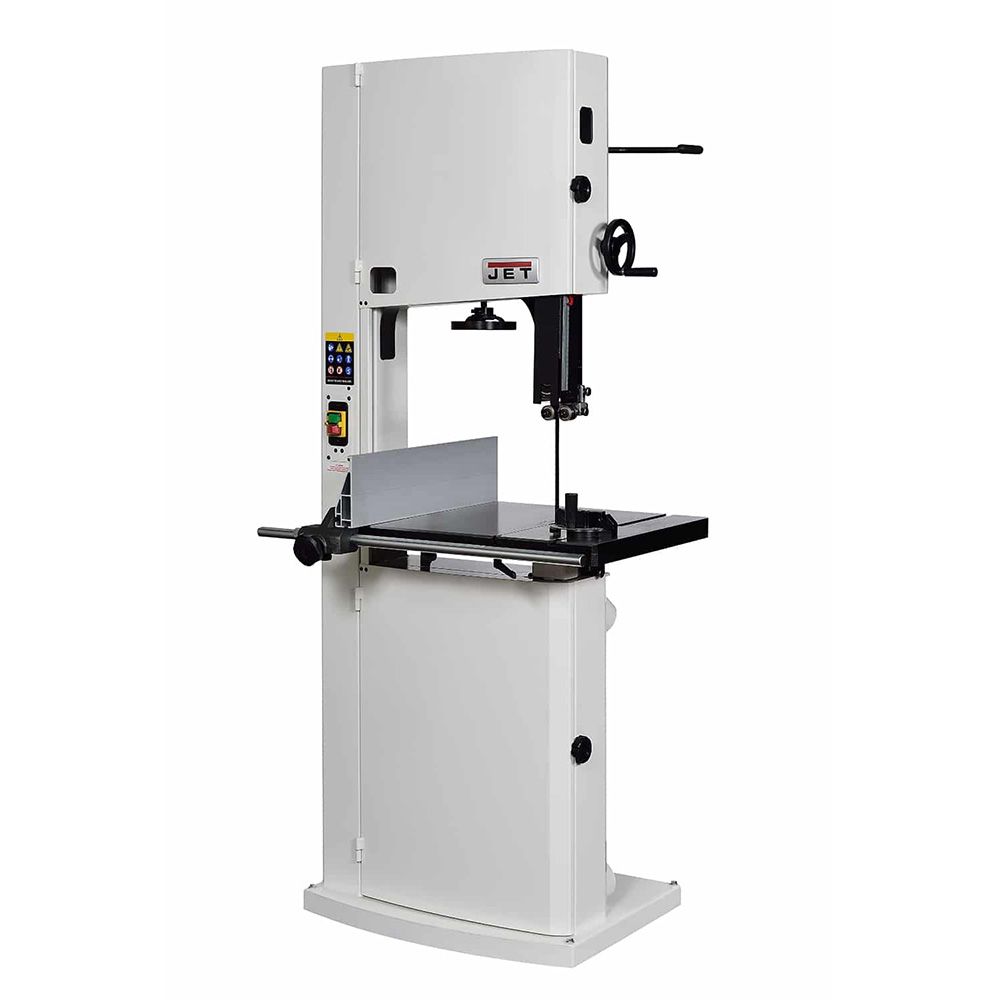

JET Wood Bandsaw JWBS-18-T
CODE
TF-JWBS-18-T
In stock
JET Wood Bandsaw JWBS-18-T
- The powerful 3.7kW (5hp) motor provides reserves for difficult crosscuts and in continuous operation
- Precision-planed cast iron table for added stability and workpiece support
- Saw blade quick release and tensioning system
- Two cutting speeds (640, 1’200m/min) for working efficiently with hard and soft woods
- Electro-mechanical motor brake
- Tool-free, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
- Sturdy parallel fence with integrated fine-tuning, operated on a round rod
- Heavy-duty guide post adjusted via a toothed rack and handwheel for optimal saw blade support
- Solid construction, stable and torsionally rigid
- Motor (V/kW) 400/1.5
- Wheel diameter (mm) 470
- Max. cutting height/-resaw capacity (mm) 406/457
- Table tilt 5° left, 45° right
- Table size (mm) 692 x 508 x 41
- Blade speed (m/min) 570/900
- Saw blade (mm) 3’810
- Saw blade width min/max. (mm) 3/32
- Blade guide – Ball bearing
- Table height from floor (mm) 940
- Miter t-slot (mm) 19.1 x 9.5
- Dimensions (mm) 914 x 864 x 2’032
- Weight (kg) 217
- Dust port (mm) 100
