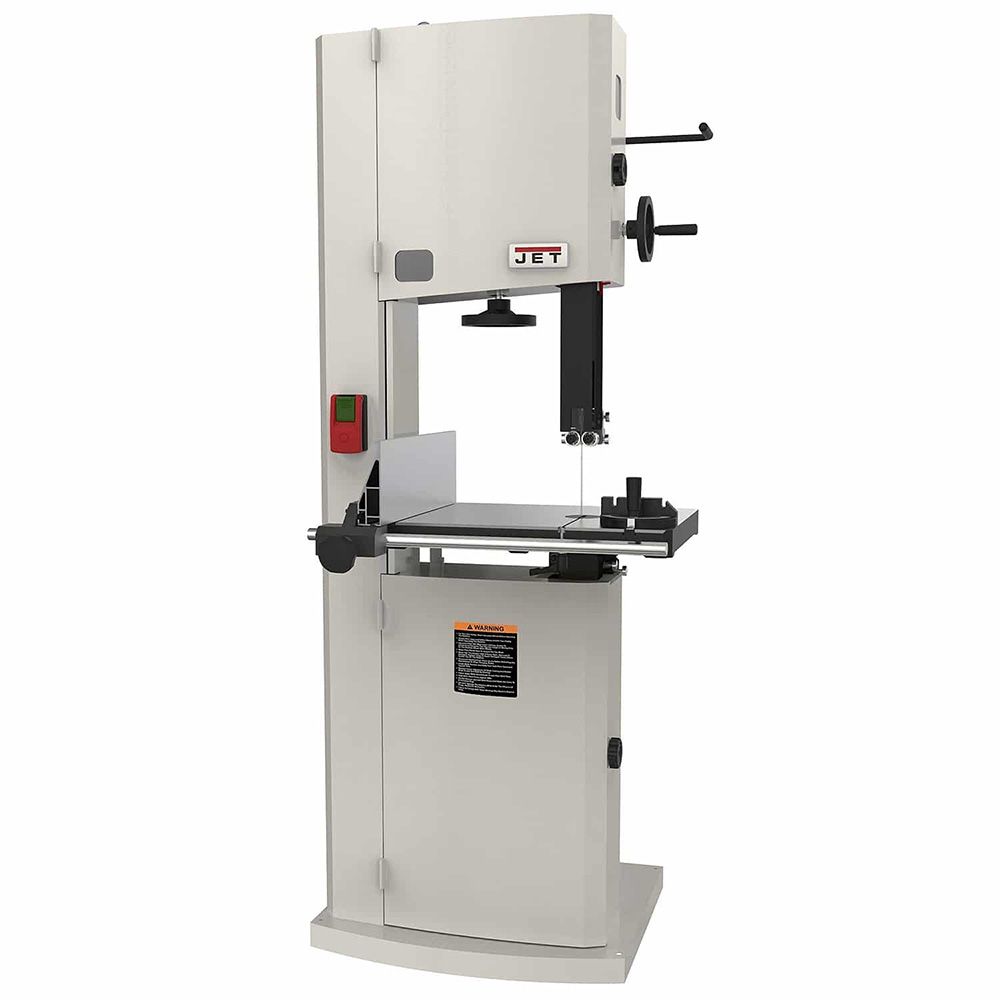

JET Wood Bandsaw JWBS-15-M
CODE
TF-JWBS-15-M
In stock
JET Wood Bandsaw JWBS-15-M
- 546×406mm precision ground cast iron table for added stability and work support
- Quick-release and tensioning blade system
- Electro-mechanical motor brake
- Tool-less, independently adjustable ball bearing guide system for quick and easy adjustments and smooth operation
- Cast trunnion for better support and stability
- Viewing window for easy blade tracking and blade tension control
- 356mm resaw capacity for cutting large pieces of wood, slicing veneers and cutting book matched panels
- Sturdy parallel fence with integrated fine-tuning, operated on a round rod
- Upper saw blade guide is quickly adjusted using a toothed rack and handwheel
- Solid guidepost for optimal saw blade support
- Motor (V/kW) 230/1.1
- Wheel diameter (mm) 375
- Max. cutting height/-resaw capacity (mm) 356 / 359
- Table tilt 5° left, 45° right
- Table size (mm) 546 406 51
- Blade speed (m/min) 750
- Saw blade (mm) 3’380
- Saw blade width min/max. (mm) 3/25
- Blade guide – Ball bearing
- Table height from floor (mm) 890
- Miter t-slot (mm) 19.1 x 9.5
- Dimensions (mm) 750 812 1’880
- Weight (kg) 174
- Dust port (mm) 100
