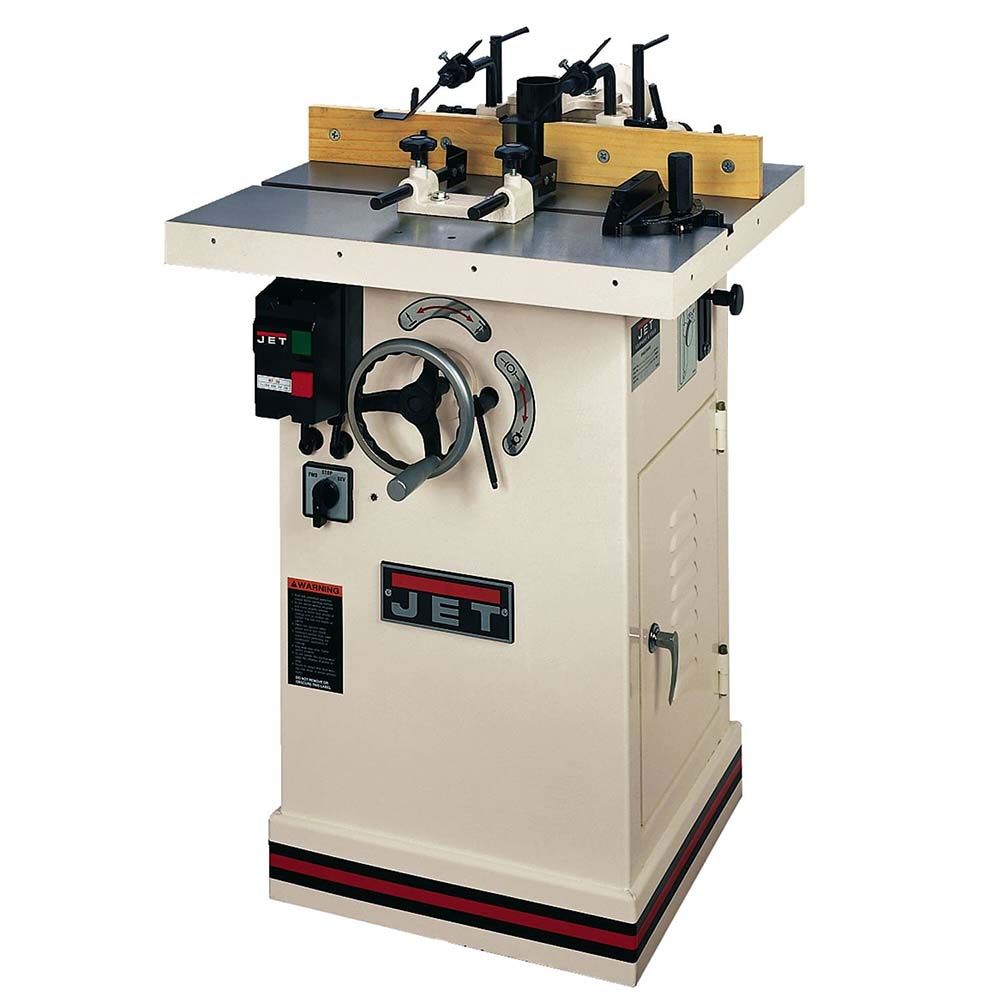

JET Spindle Moulder JWS-34KX-M
CODE
TF-JWS-34KX-M
In stock
JET Spindle Moulder JWS-34KX-M
- Large cast iron router table, precision planed and polished
- Simple speed change with four speeds – 1’700 / 3’500 / 6’000 / 8’000rpm – via poly-v belt
- Spindle indexing for user-friendly tool changes
- Spindle height sc
- Collet chuck adapters 8mm and 12mm for using routing tools
- JET JOSS-S abrasive sleeves can be used to sand cambered pieces
- Motor (V/kW) 230/1.9
- Spindle speeds (rpm) 1’700 / 3’500 / 6’000 /8’000
- Max. tool diameter (mm) 180
- Max. tool height (mm) 70
- Clamp height (mm) 70
- Router bit collet (mm) 8/12
- Max. tool height above table (mm) 120
- Spindle diameter (mm) 30
- Spindle travel (mm) 80
- Table opening diameter (mm) 160
- Table size (mm) 635 x 600
- Dust port (mm) 100
- Dimensions (mm) 760 x 840 x 990
- Weight (kg) 145
