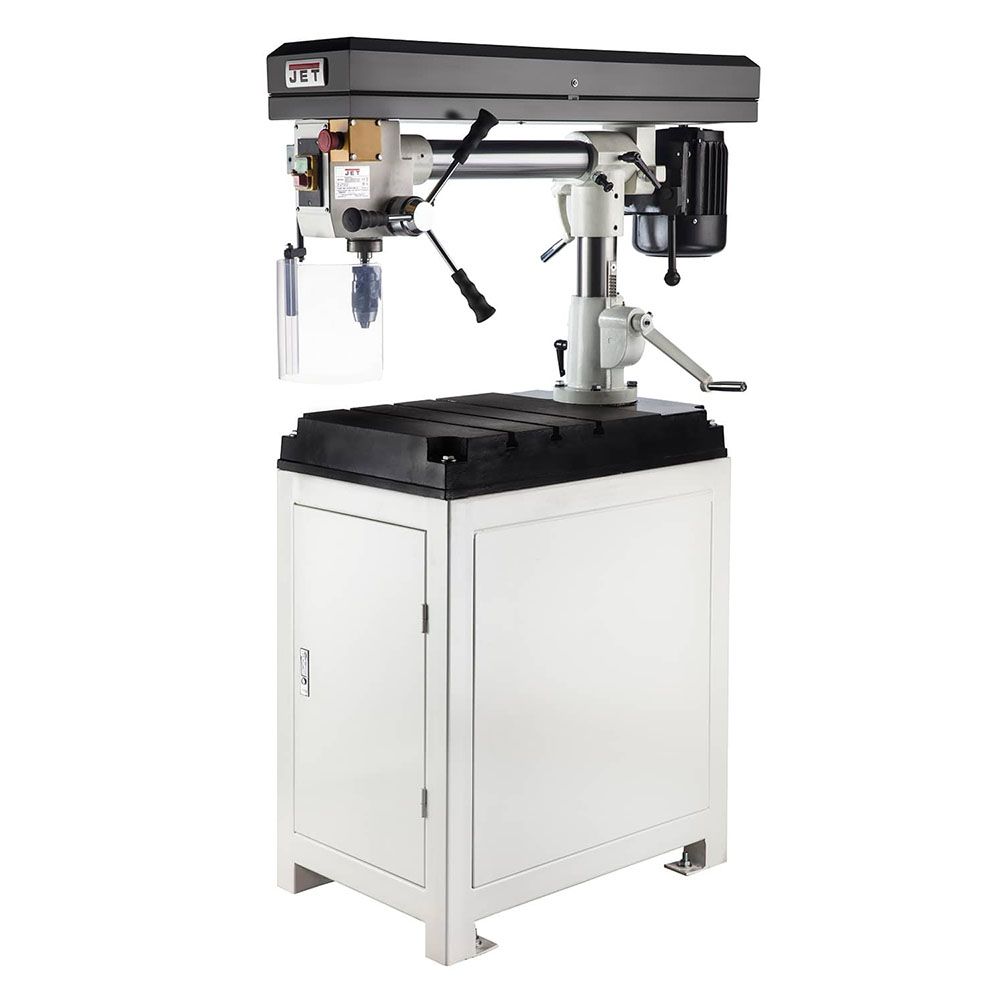

JET Radial Drill JRD-387A
CODE
TF-JRD-387A
In stock
1–16mm quick-clamping drill chuck with chuck protector.
- 80mm spindle stroke with adjustable end stops.
- Induction motor – suitable for continuous operation.
- Head can be rotated 45° to the right and 90° to the left.
- Laser hairline cross for ease of use.
- Motor (V/kW) 400/1.35
- Spindle speed range (rpm) 230 x 3’100
- Number of spindle speeds 9
- Max. drill diameter (mm) 16
- Spindle travel (mm) 85
- Spindle fixture MT2
- Throat depth (mm) 140 – 540
- Spindle distance to table (max.,mm) 610
- Table size (mm) 500 x 740
- Miter t-slot (mm) 14
- Head tilt 30° right / 0° / 30° left
- Dimensions (mm) 1740 x 570 x 1’860
- Weight (kg) 210
