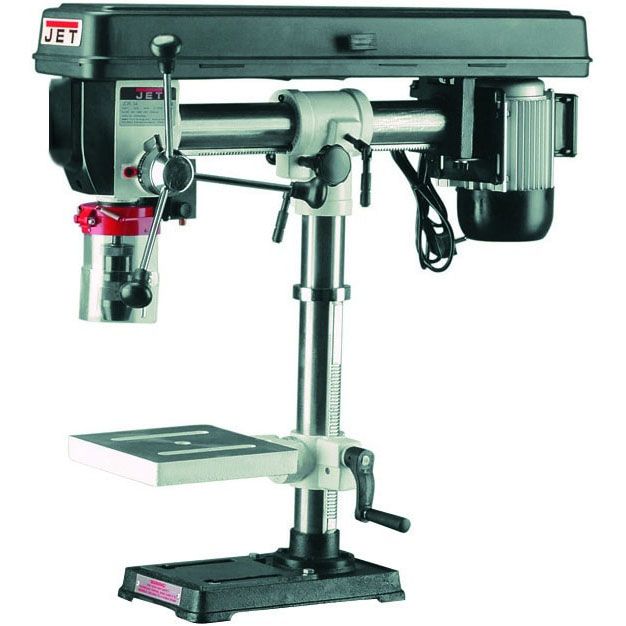

JET Radial Drill JDR-34-M
CODE
TF-JDR-34-M
In stock
1 – 16 mm quick-clamping drill chuck with chuck protector.
- 80 mm spindle stroke with adjustable end stops.
- Induction motor – suitable for continuous operation.
- Head can be rotated 45° to the right and 90° to the left.
- Laser hairline cross for ease of use.
- Motor (V / kW) 230 / 0.6
- Spindle speed range (rpm) 500 – 2’500
- Number of spindle speeds 5
- Max. drill diameter (mm) 16
- Spindle travel (mm) 80
- Spindle fixture MT2
- Throat depth (mm) 155 – 410
- Spindle distance to table (max.,mm) 700
- Spindle distance to base (max., mm) 1’200
- Table size (mm) 300
- Miter t-slot (mm) 14
- Head tilt 0° – 90° left / 0° – 45° right
- Dimensions (mm) 830 x 320 x 1’660
- Weight (kg) 61
