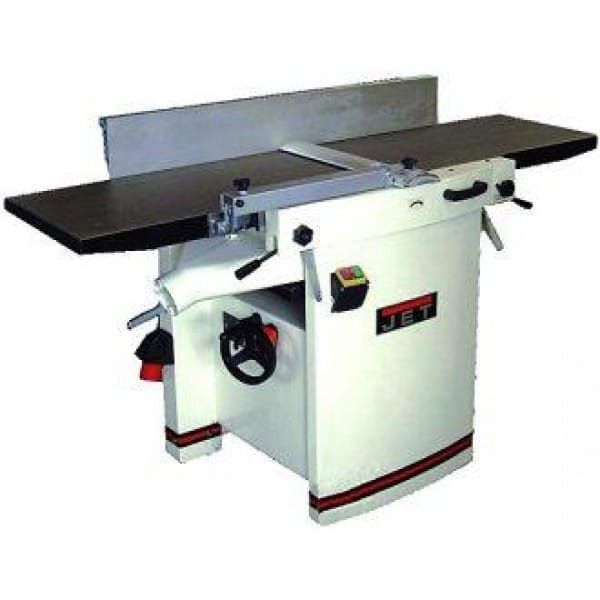

JET Planer Thicknesser JPT-410-T
CODE
TF-JPT-410-T
In stock
JET Planer Thicknesser JPT-410-T
- Dual fold-out table to switch from planing to thicknessing in a matter of seconds, without removing the fence
- Graded planing tables made from high-quality cast iron guarantee outstandingly smooth workpiece movement
- Two-sided eccentric regulation for quick adjustment of the chip remover and hollow joint
- The 3-knife shaft allows fast processing and top planing results
- Large-sized planer fence made from aluminium, inclinable to 45°, precisely machined, stable in operation
- Warp resistant one-piece machine casing for unfailing precision
- Feed can be turned off
- Motor (V/kW) 400/3.7
- Cutterhead rotation (rpm) 5’500
- Feed speed (m/min) 7
- Maximum planing width (mm) 407
- Thicknessing height (mm) 4 – 225
- Maximum depth of cut (mm) 3
- Maximum thicknessing depth of cut (mm) 4.5
- Number of knives 3
- Planer blades (mm) 410 x 25 x 3
- Depth of cut table size (mm) 600 x 407
- Planing table length (mm) 1’660
- Indexable inserts number –
- Minimum thicknessing length (mm) 150
- Fence size (mm) 1’100 x 150
- Fence tilt (deg.) 45°/90°
- Dust port (mm) 100 & 120
- Dimensions (mm) 1’660 x 870 x 1’000
- Weight (kg) 315
