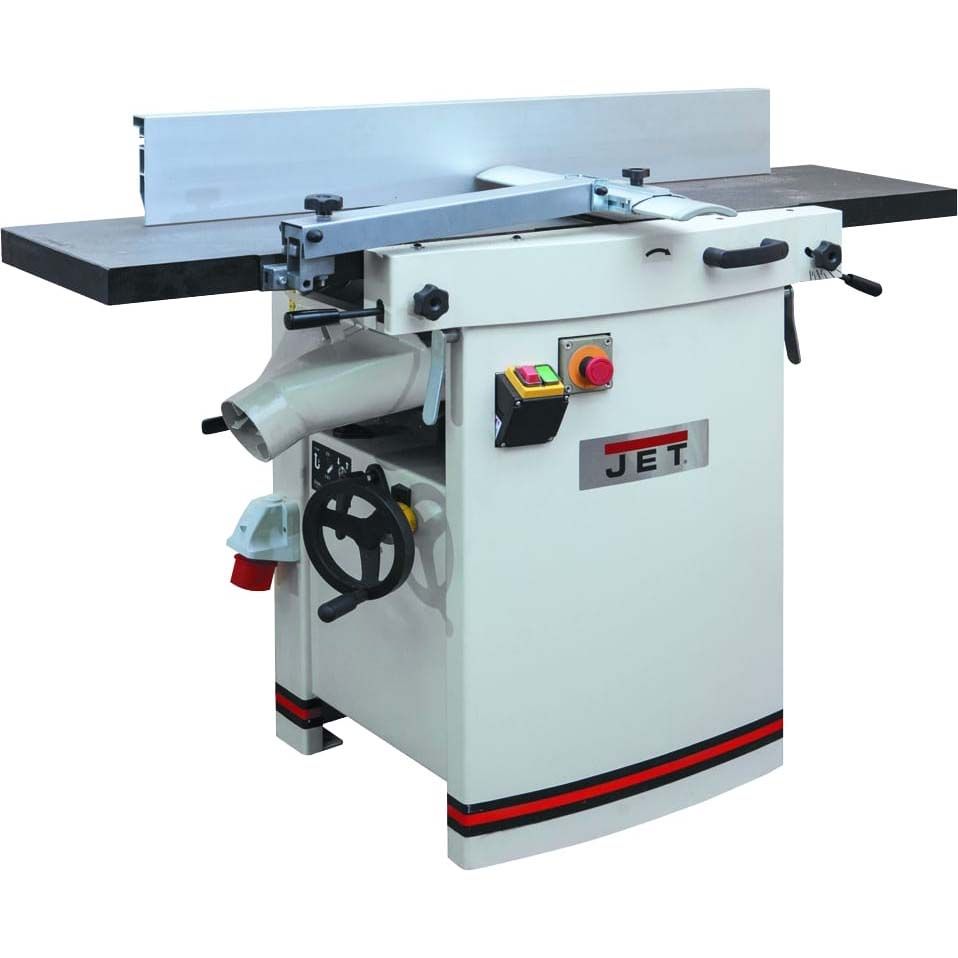

JET Planer Thicknesser JPT-310HH-T
CODE
TF-JPT-310HH-T
In stock
JET Planer Thicknesser JPT-310HH-T
- Integrated spiral planing shaft fitted with 56—4-fold carbide cutting inserts
- Optimal surface finish through drawn cut, tear-free even with an unfavourable grain structure
- The volume of chips is significantly reduced (approx. 50%)
- Extremely quiet
- The fine-grain carbide cutting inserts are robust and wear proof (5—HSS), simply continue turning by 90° to the next cutting edge where required
- A machine investment that will pay off
- Motor (V/kW) 400/2.9
- Cutterhead rotation (rpm) 5’500
- Feed speed (m/min) 5.5
- Maximum planing width (mm) 307
- Thicknessing height (mm) 4 – 225
- Maximum depth of cut (mm) 3
- Maximum thicknessing depth of cut (mm) 4.5
- Number of knives 4
- Depth of cut table size (mm) 540 x 307
- Planing table length (mm) 1’400
- Indexable inserts number 56
- Minimum thicknessing length (mm) 150
- Fence size (mm) 1’100 x 150
- Fence tilt (deg.) 45°/90°
- Dust port (mm) 100
- Dimensions (mm) 1’400 x 750 x 1’000
- Weight (kg) 230
