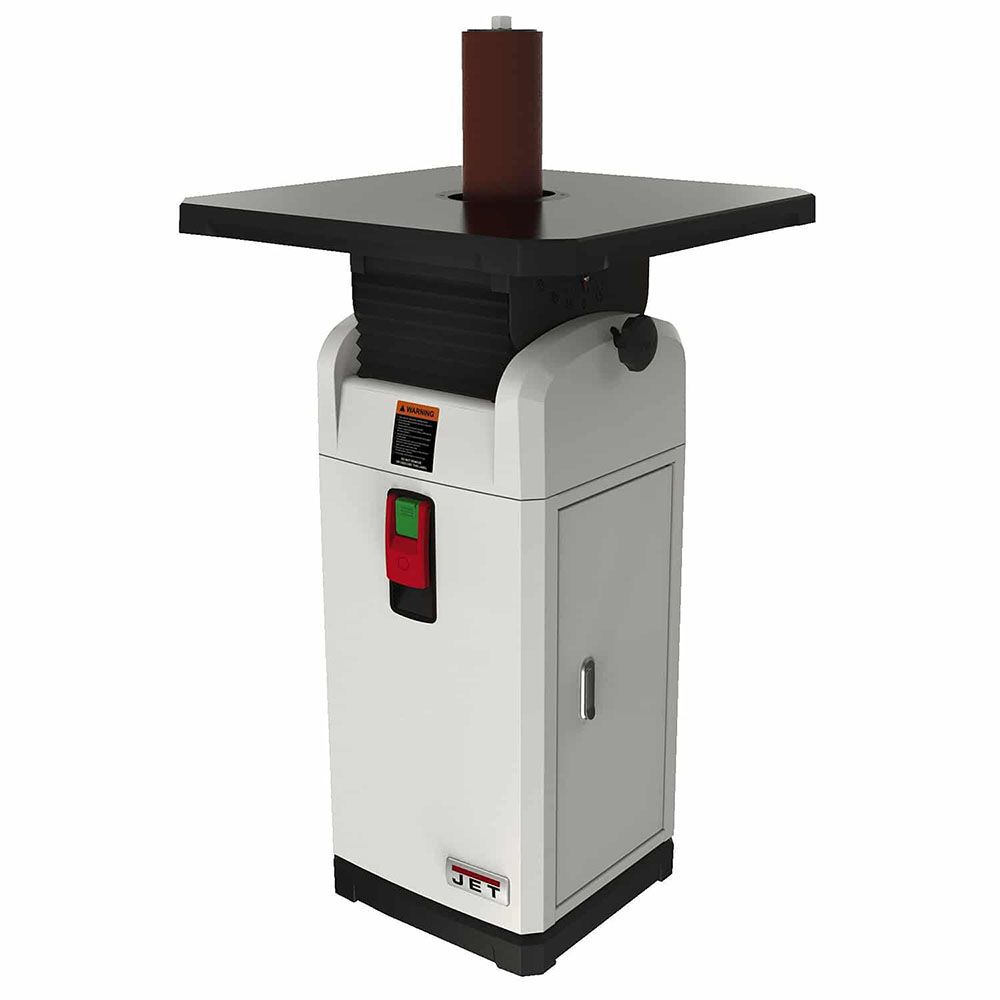

JET Oscillating Spindle Sanders JOSS-S
CODE
TF-JOSS-S
In stock
JET Oscillating Spindle Sanders JOSS-S
- Wash plates make a chamber under the table to create a strong suction effect and dust-free working area
- The large cast iron table can be angled forwards by 45° and backwards by 15° and features a 90° locking position
- Spindle lock for quickly changing the spindle and abrasives
- 38mm oscillation stroke, main spindle guided in precision ball bearings
- Powerful worm gear operates in an oil bath – to ensure a long lifespan
- Powerful 1.2kW induction motor
- Sander spindles, abrasive sleeves and table inserts can be kept clean in the machine base cabinet
- Motor (V/kW) 230/1.2
- Spindle speeds (rpm) 1’450
- Spindle diameter (mm) 6 /9 / 12 / 16 / 19 / 25 / 38 / 50 / 75 / 100
- Max. sanding height (mm) 80 – 160
- Table size (mm) 620 x 620
- Table tilt 45° forward / 15° back
- Sanding spindle height (mm) 150/230
- Oscillations/Minute 60
- Osciallation stroke (mm) 38
- Dust port (mm) 100
- Dimensions (mm) 700 x 760 x 1’130
- Weight (kg) 98
