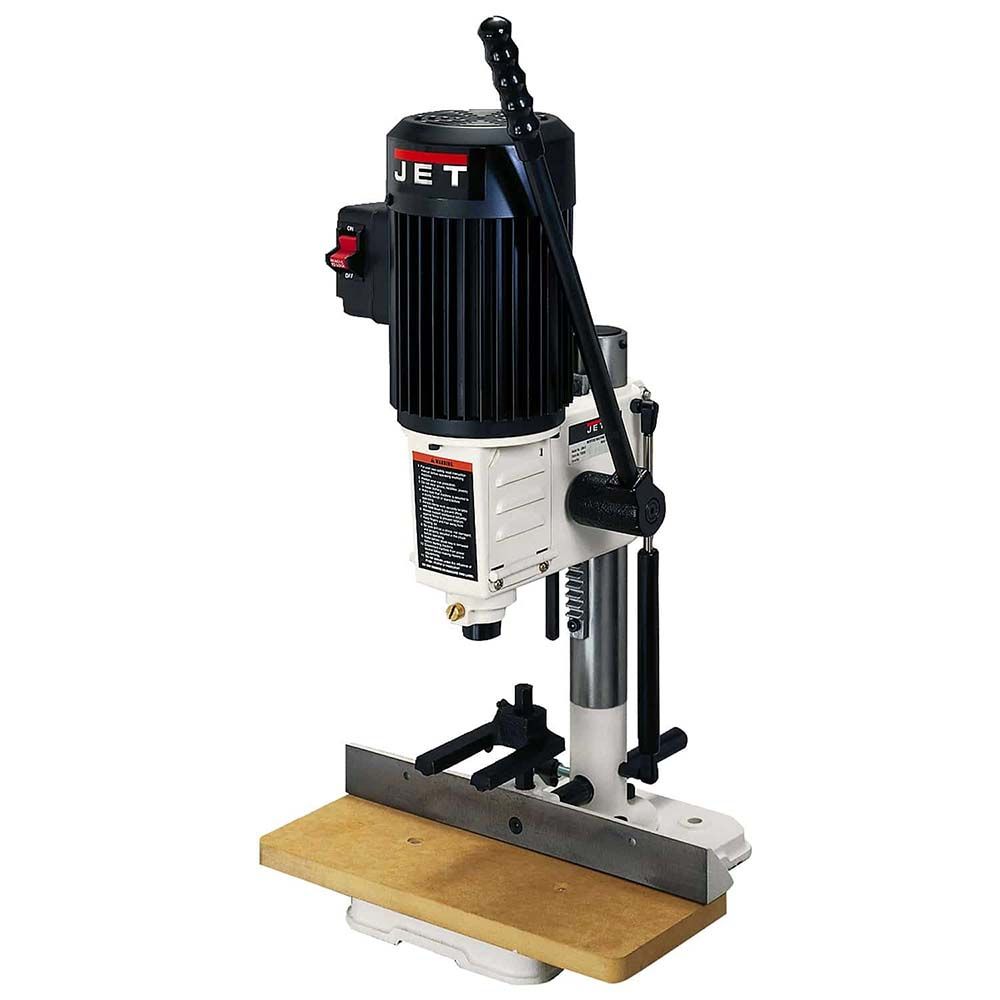

JET Mortiser JBM-5
CODE
TF-JBM-5
In stock
JET Mortiser JBM-5
- Compact, mobile and easy to use in the workshop or on a building site
- Heavy-duty cast iron construction for precision working
- With height adjustment via the toothed rack and gas pressure balancer cylinder
- Convertible drill lever
- Adjustable fence, workpiece hold-down and drill depth stop
- Table covering made from MDF, easy to replace
- Delivered without chisel pictured
- Motor (V/kW) 230/0.7
- Spindle speeds (rpm) 1’450
- Max. chisel size (mm) 12 x 12
- Max. bore size diameter (mm) 10
- Max. workpiece height (mm) 105
- Max. workpiece height with an extension (mm, optional) 155
- Max. chisel stroke (mm) 120
- Table size (mm) 345 x 150
- Centre of chisel to back fence (mm) 90
- Dimensions of the workpiece stop (mm) 345 x 90
- Dimensions (mm) 370 x 350 x 750
- Weight (kg) 23
