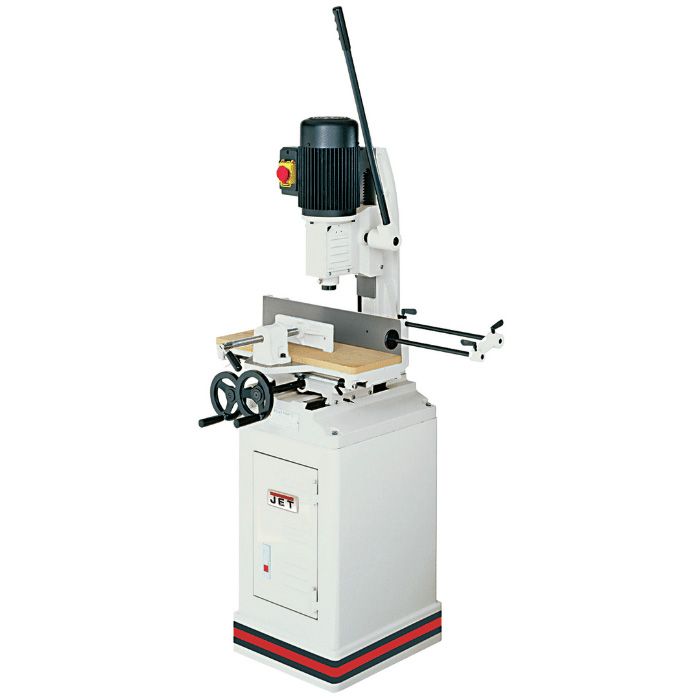

JET Mortiser 719AS-M
CODE
TF-719AS-M
In stock
JET Mortiser 719AS-M
- Toothed rack height adjuster together with accurate dovetail guide and gas pressure balancer cylinder.
- Powerful motor.
- Head can be turned by 180° for drilling a door lock.
- Large-sized handwheels for easy adjustment of the jig table.
- End stops for precision batch productions.
- Workpiece clamp with quick adjustment.
- Enclosed base cabinet with storage compartment.
- Table tilt angle (719-AS-M) up to 35°.
- Motor (V / kW) 230 / 1.3
- Spindle speeds (rpm)1’450
- Maximum cutter size (hard / soft) 19 x 19 / 25 x 25
- Max. bore size diameter (mm)13
- Max. workpiece height (mm) 195
- Max. chisel stroke (mm) 200
- Table travel along axes (longitudinal / transverse, mm) 400 / 100
- Table tilt 0-35°
- Table size (mm) 520 x 180
- Dimensions of the workpiece stop (mm) 520 x 90
- Centre of chisel to back fence (mm) 100
- Dimensions (mm) 650 x 500 x 1’760
- Weight (kg) 110
