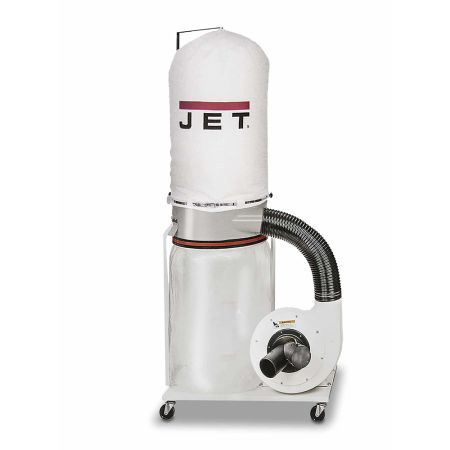

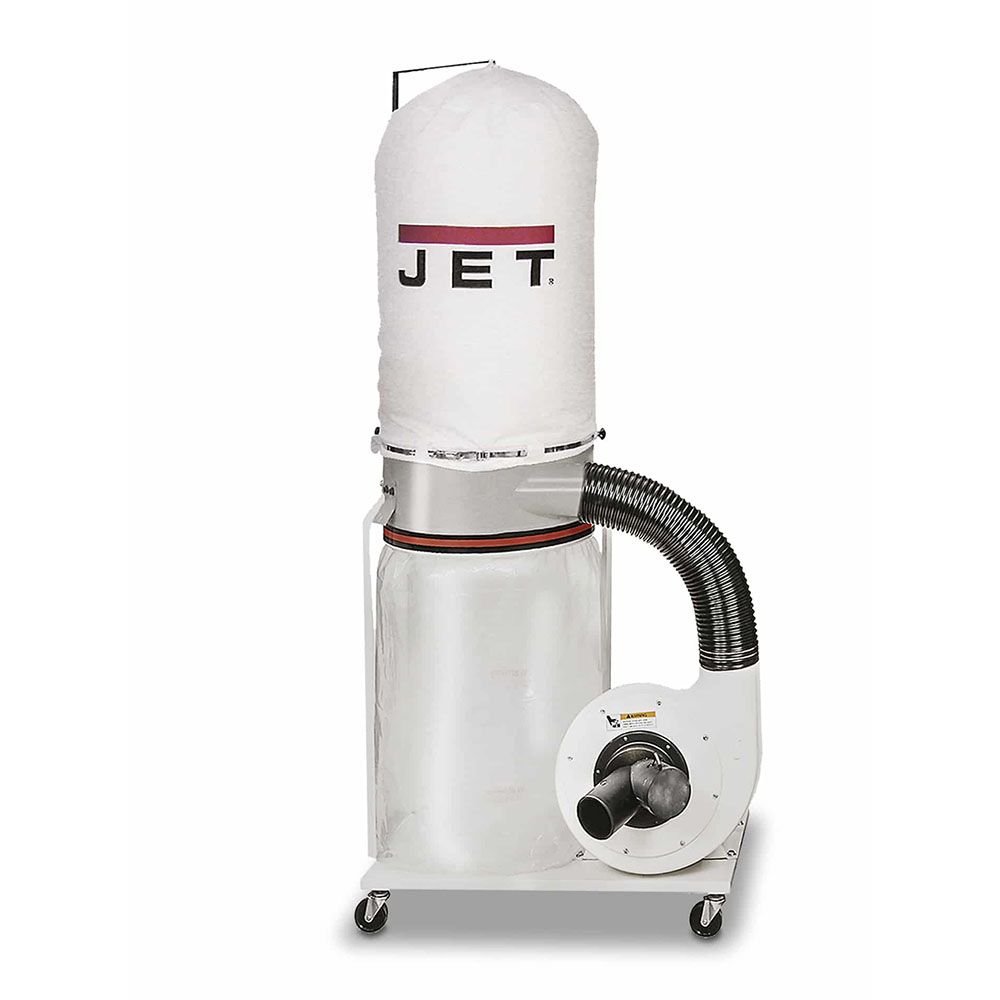

JET Dust Collector DC-1100A-T
CODE
TF-DC-1100A-T
In stock
JET Dust Collector DC-1100A-T
- Heavy-duty universal extraction with high suction capacity and innovative Vortex Cone technology
- The vortex cone effectively deposits the chips in the waste sack
- Only air and the finest particles get into the filter range, no drop in efficiency due to prematurely clogged filter slats
- Reduced chip volume so the sack does not need to be emptied so often
- Efficient induction motor suitable for continuous operation
- Finely balanced steel fanwheel for vibration-free, quiet operation
- Sacks are easy to fit with a ring clamp, no tension belt required
- Heavy-duty metal casing
- Supplied with a 30-micron filter sack, Y pillars 2—100mm, wheeled unit and 5 waste sacks
- Motor (V/kW) 400/1.5
- Air flow rate (m3/h) 1’150/1’620
- Vaccum pressure (pA) 1’700
- Dust inlet diameter (mm) 150
- Hose diameter (mm) 2 x 100
- Filter efficiency with particle size 99% at 30 Micron
- Collector bag capacity volume (lt) 200
- Collector bag size (mm) 785 x 940
- Noise level (LpA, dB) 80
- Dimensions (mm) 940 x 510 x 2’000
- Weight (kg) 48
