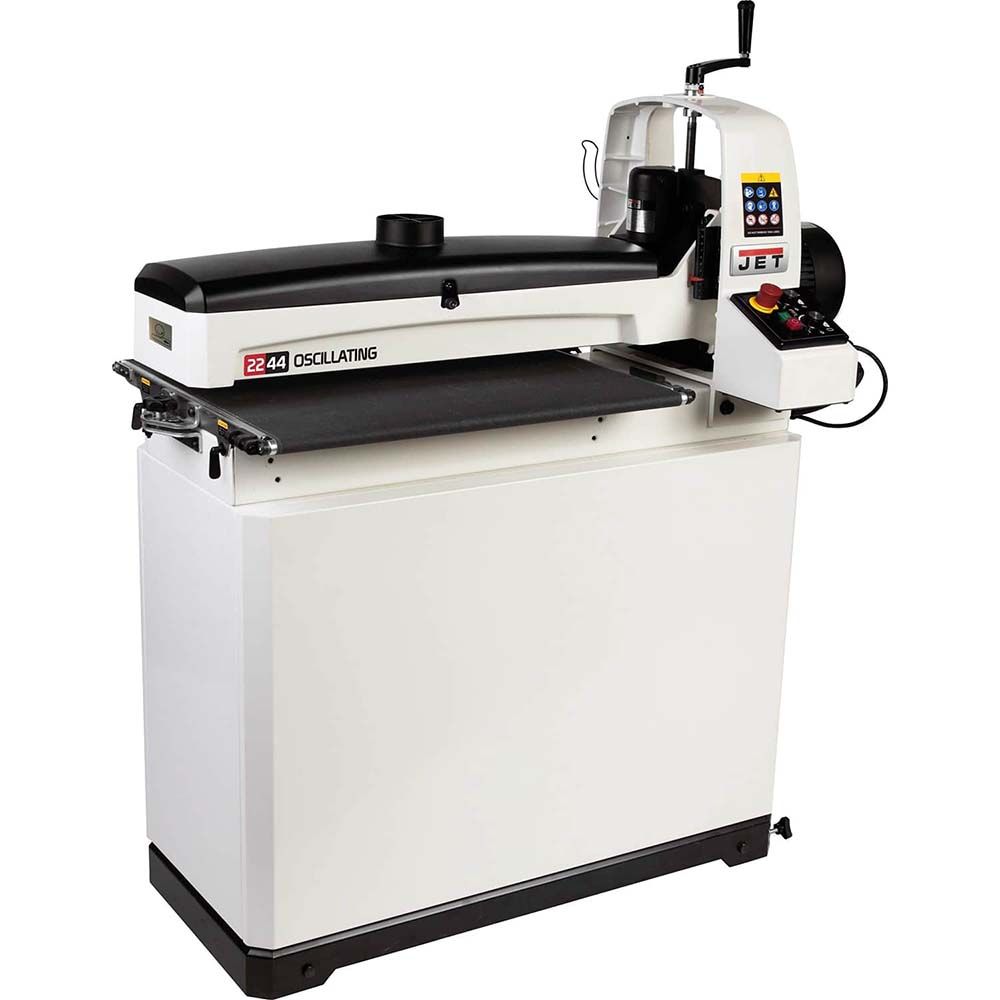

JET Drum Sander JWDS-2244OSC-M
CODE
TF-JWDS-2244OSC-M
In stock
Oscillating drum sander in new JET design and new functionalities.
- Full user control on drum oscillation speed, minimizes visible sanding scratches, reduces burning marks and extends the life of abrasives.
- Dust hood with integrated airflow for best dust collection and a cleaner working environment.
- The Sandsmart™ control ensures constant monitoring of the drum load and ensures automatic control of the feed rate to maintain the highest possible feed without system overload.
- Workpiece-parallel setup is quick and easy, by adjusting the feed table.
- Tools free an with memory function.
- Precise drum height adjustment with mm scale and setable crank scale ring.
- Wheeled cabinet stand with door, for the safe storage of your abrasive and other goods.
- Power 230V / 1,3 kW / 50 Hz
- Maximum board thickness 102 mm
- Minimum board thickness 0,8 mm
- Minimum board length 60 mm
- Maximum board width (two passes) 559 mm (1120 mm)
- Drum dimensions, L x Dia 584 mm x 127 mm
- Conveyor speed variable 0 -3 m/min
- Oscillation speed variable 0 -120
- Drum speed 1450 U/min
- Dust port diameter 100 mm
- Assembled dimensions 1200 x 610 x 1320 mm
- Net weight, base machine only 98 kg
- Shipping weight, base machine only 131,5 kg
