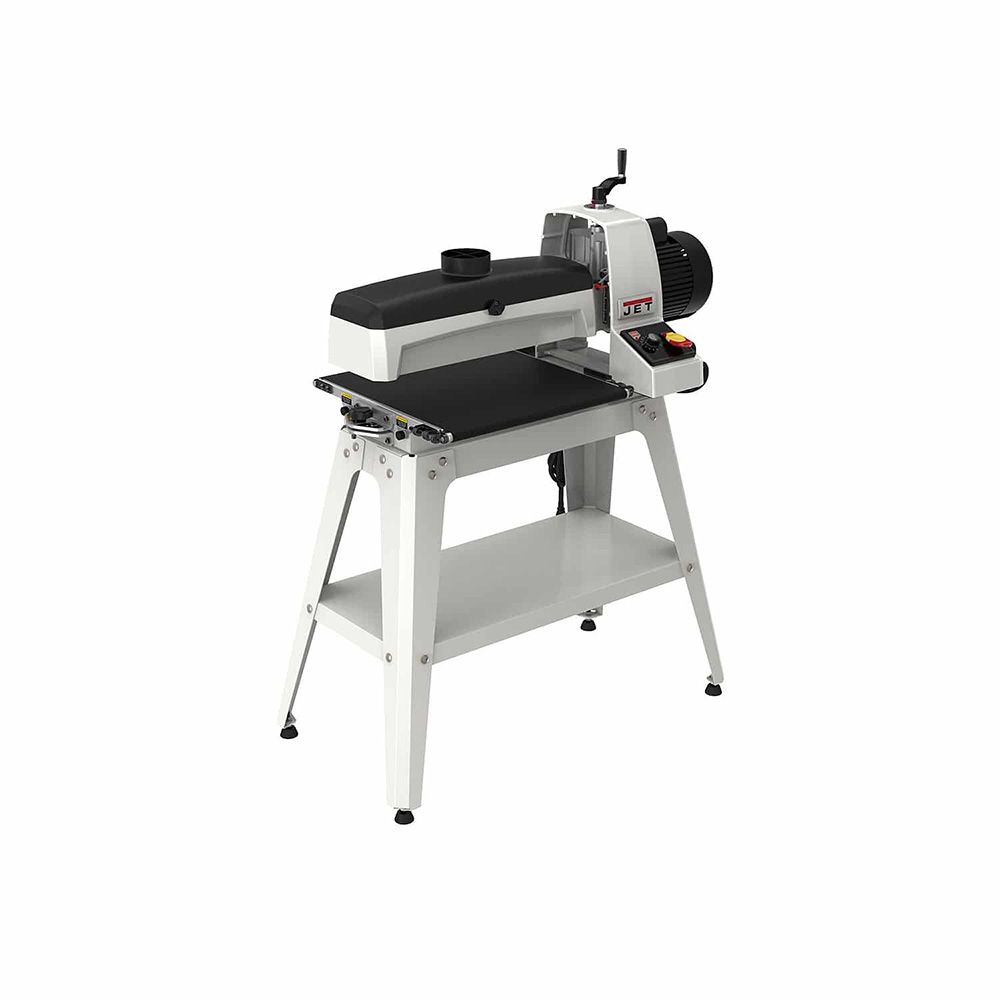

JET Drum Sander JWDS-1632
CODE
TF-JWDS-1632
In stock
JET Drum Sander JWDS-1632
- Constructed with one open side, it allows sanding widths up to 812mm in two throughputs
- Sandsmart control continuously monitors the load on the drum motor and automatically regulates the speed of the conveyor motor to maintain the highest feed rate without overload
- Precision-machined and dynamically balanced extruded aluminum drum is designed to dissipate heat and protect the work surface from heat-damage
- Drum with dustproof and lifetime-lubricated grooved ball bearings
- Drum hood with integrated guide channels for the ultimate in extraction and a dust-free environment
- Adjusting tool alignment is quick and accurate by shifting the feed table, with memory function
- Feed bed made from precision rolled steel plate, deeply ribbed
- Height scale and crank scale ring allow precise positioning
- Motor (V/kW) 230/1.6n
- Drum speed (rpm) 1,450
- Drum dimensions 127x406mm
- Sanding speed (m/s) 9.5
- Feed speed (m/min) 0 u0096 3n
- Maximum sanding width (mm) 406 (812, two passes)
- Minimum sanding length (mm) 60
- Max./min. sanding strength (mm) 75/0.8
- Dust port (u00f8-mm) 100n
- Dimensions (mm) 1’010u00d7510u00d71’270n
- Weight (kg) 7
