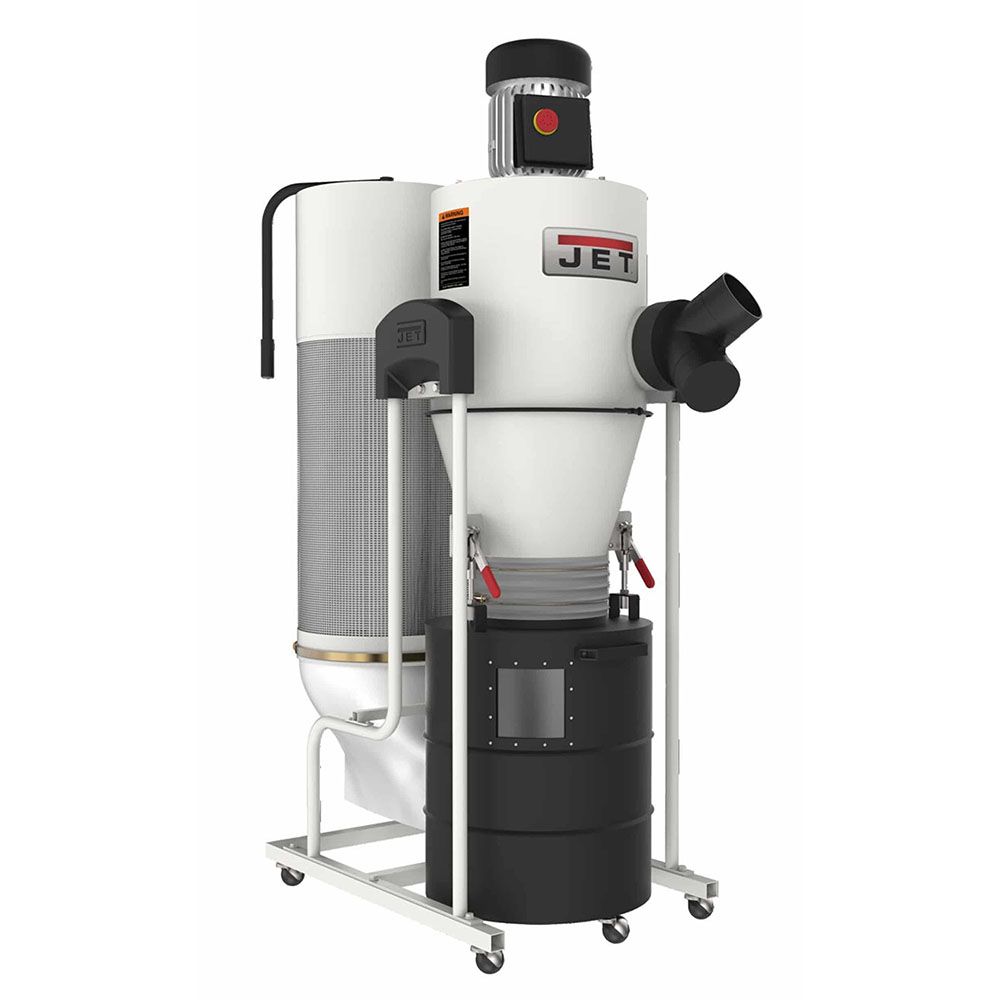

JET Cyclone Dust Collector JCDC-15-M
CODE
TF-JCDC-15-M
In stock
JET Cyclone Dust Collector JCDC-15-M
- More suction power using the same motor output, quiet operation.
- Two-level air filtration makes the device more effective and efficient.
- Powerful cyclone function, separates chips from dust to relieve pressure on the fine mesh filter.
- Filter efficiency level of 99% for particles ≥ 2 microns.
- Filter cartridge with quick-clean feature using the lever.
- Debris and chips are collected in the 75-litre metal drum.
- Quick emptying with the drum’s quick-release fasteners and separate castors.
- Castors on the device allow it to be moved around the workshop.
- Motor (V/kW) 230/1.5
- Air flow rate (m3/h) 1’530
- Vaccum pressure (pA) 1’350
- Dust inlet diameter (mm) 152
- Hose diameter (mm) 2 x 100
- Filter efficiency with particle size 99% at 2 Micron
- Collection drum capacity (lt.) 75
- Noise level (LpA, dB) 76
- Collector bag size (mm) 660 x 700
- Dimensions (mm) 1’195 x 560 x 1’715
- Weight (kg) 65
