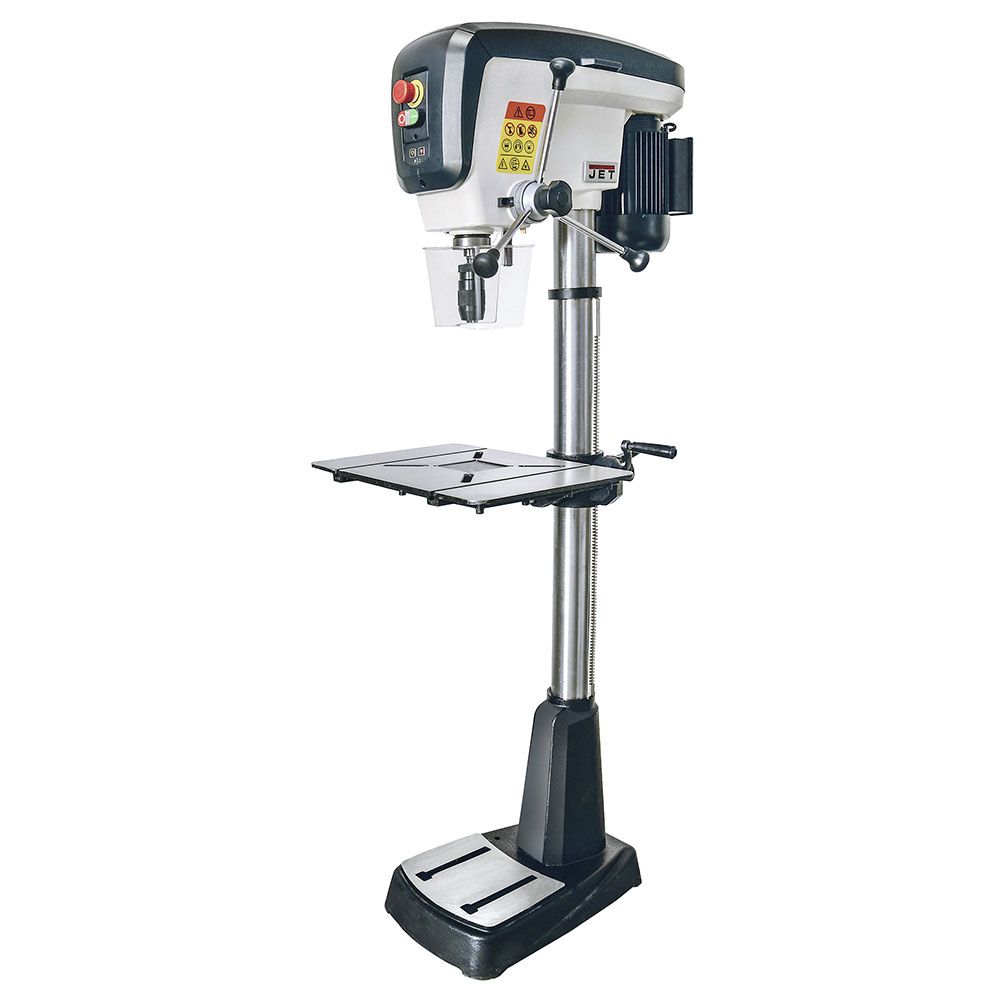

JET Column Drill JDP-17-T
CODE
TF-JDP-17-T
In stock
Heavy-duty drill press developed specifically for wood workshops
- Extra-large, precision-planed work table with 2 T-slots and 4 table slots for even greater flexibility
- Flat table edge designed for using clamps
- Replaceable MDF table insert
- 127mm drill stroke with just one turn of the handwheel, for long drill holes
- Integrated drill depth stop for precision batch tasks
- Efficient 1.0kW induction motor and quiet poly-v belt drive
- One-handed belt tensioning for fast speed changes
- Xacta-X laser system easily identifies the drill center
- Integrated long-life LED working lamp prevents shadows
- Large cast iron base for high stability
- Electric drill chuck protector, belt guard protection and emergency stop as standard
- Motor (V/kW) 400/1.0
- Spindle speed range (rpm) 180 – 2’900
- Number of spindle speeds 16
- Spindle fixture MT2
- Spindle travel (mm) 127
- Distance spindle to column (mm) 215
- Spindle distance to table (max., mm) 763
- Spindle distance to base (max., mm) 1’194
- Table size (mm) 356 x 483
- Table tilt 90° left / 90° right
- Miter t-slot/distance (mm) 13/270
- Column diameter (mm) 80
- Dimensions (mm) 723 x 483 x 1’679
- Weight (kg) 86
