JET Circular Saw JTSS-1600-M
CODE
TF-JTSS-1600-M
In stock

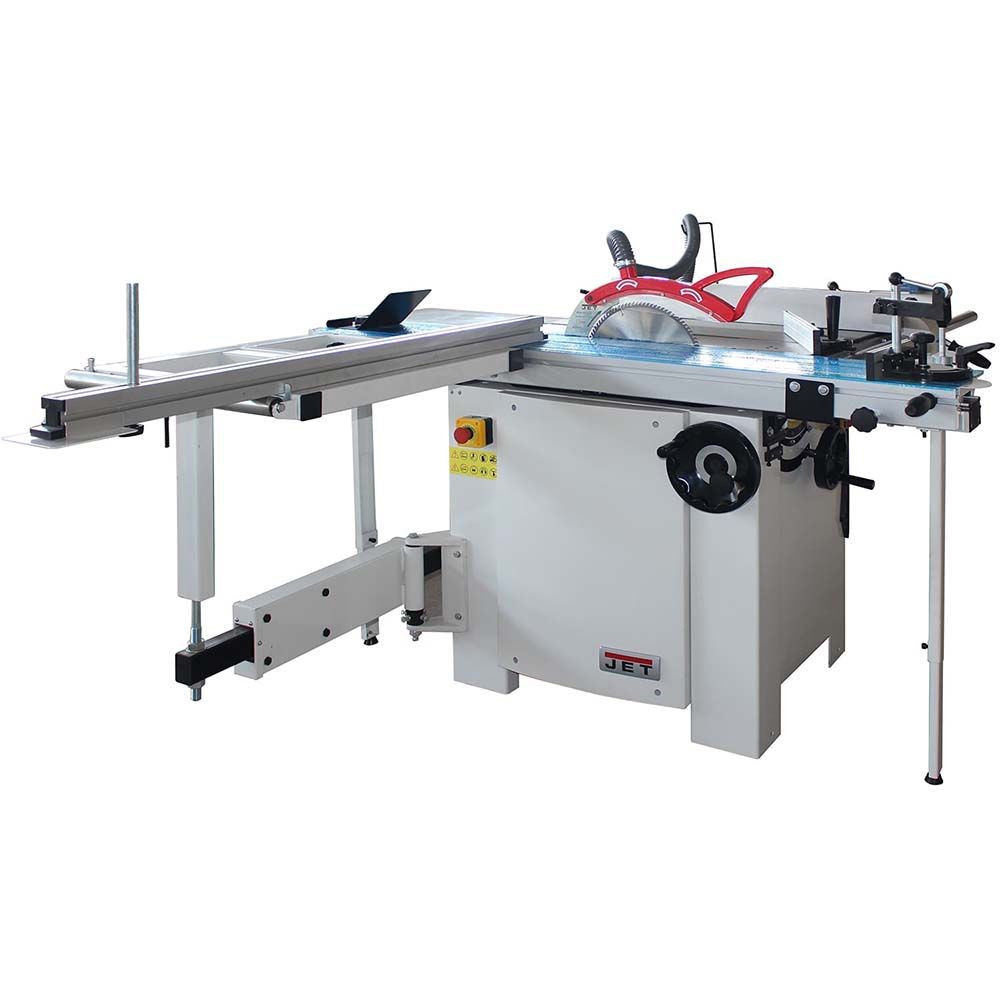

JET Circular Saw JTSS-1600-M
- Professional panel saw for working with wood and wood-based laminated materials
- The machine features a sliding table (carrier) with a 1’600mm travel distance
- Supplied with various accessories, which is a definite advantage as no further parts purchase is needed
- The machine has a scoring blade driven by the main motor as well as a sawing module with tilting and height adjustment
- Plan milled grey cast iron table
- Motor (V/kW) 230/2.4
- Blade speed (U/min) 4’500
- Blade-size/bore (mm) 315/30
- Mitre capacity 0° – 45°
- Max. cutting depth at 0° / 45° (mm) 100/80
- Max. cutting width (mm) 1’220
- Table size (mm) 800 x 385
- Extension size (mm) 500 x 310
- Table extension right (mm) 800 x 440
- Precision sliding table (mm) 1’600 x 270
- Max. length of cut (mm) 1’350
- Scoring blade speed (rpm) 8’500
- Scoring blade size/-bore (mm) 90/20
- Dimensions (mm) 1’750 x 3’000 x 1’200
- Weight (kg) 265
