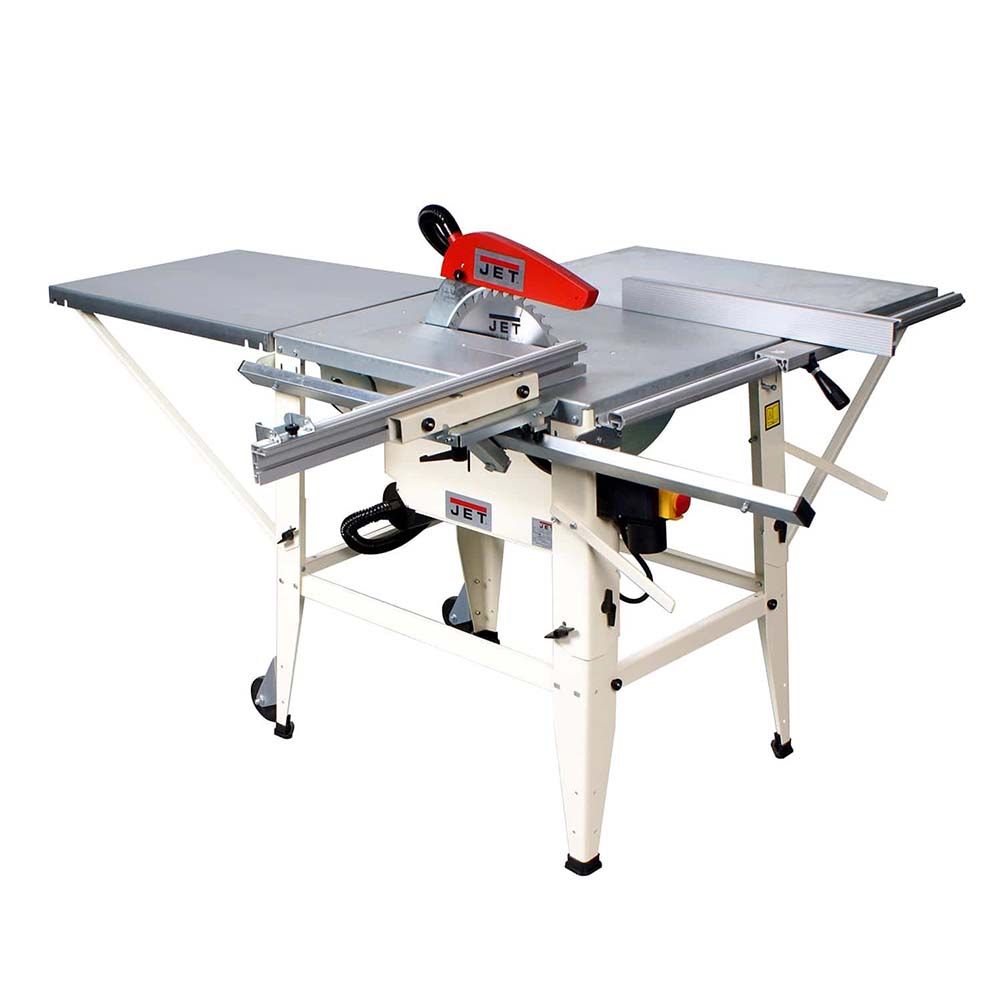

JET Circular Saw JTS-315SP-M
CODE
TF-JTS-315SP-M
In stock
JET Circular Saw JTS-315SP-M
- Foldable legs and bayonet mounted rear table extension facilitate quick machine start-up
- Powerful motor with brake, suitable for continuous operation
- Galvanized steel machine table withstands corrosion and wear
- Anodized aluminium table insert
- Sliding table with ball bearings moves accurately for straight and angled cuts
- Convenient blade tilt up to 47° via hand wheel, adjustable stop at 0°
- Transport device facilitates simple change of positions
- Shown with optional right hand table and fence, part number 10000811.
- Motor (V/kW) 230/2.2
- Blade speed (U/min) 2’950
- Blade-size/bore (mm) 315/30
- Mitre capacity 0° – 47°
- Max. cutting depth at 0°/45° (mm) 90/60
- Max. cutting width (mm) 310
- Table size (mm) 800 x 550
- Extension size (mm) 800 x 550
- Precision sliding table (mm) 250 x 230
- Max. length of cut (mm) 600
- Dimensions (mm) 2’050 x 970 x 1’000
- Weight (kg) 69
