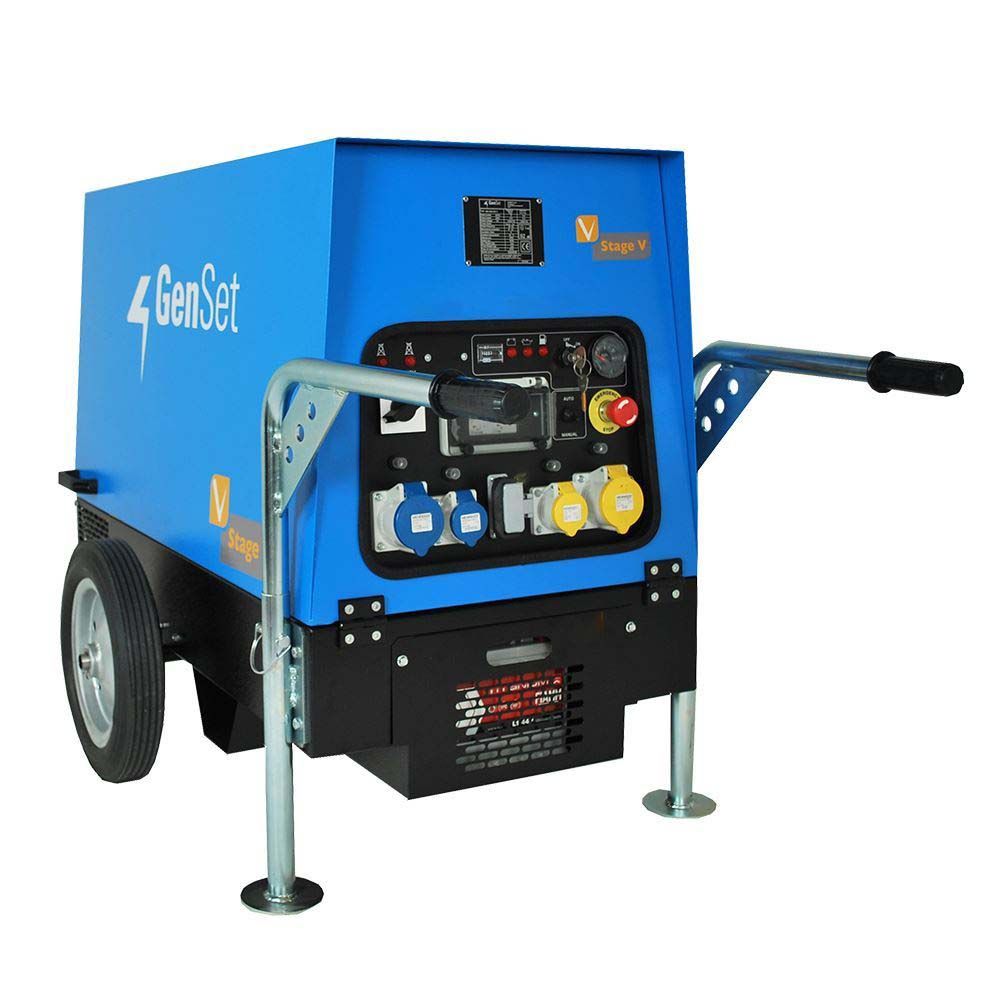

GenSet 6kVA Diesel Generator 230V/110V 3000rpm
CODE
GS-PG6DY3000
In stock
Super silenced generator equipped with Yanmar 3000 RPM engine. Designed for automatic starting via a convenient connector on the instrument panel. Equipped with central liftin hook and forkable base, trolley available for practical handling.
- Auto engine protection shutdown system with warning lights for: battery charger failure, low fuel level, low oil pressure
- 1 x 32A 230V single phase socket
- 1 x 16A 230V single phase socket
- Starting battery Emergency stop button
- Hourmeter Power output protections
- Earth leakage circuit breaker (ELCB)
- Connector for AMF-ATS panel and/or remote control
- Central lifting hook
- Fork-lift pockets
| Noise Level (LWA) | 90 (65dB a 7m) | ||
| AC Generator | 50Hz Synchronous | ||
| Single Phase Max. Power | 6kVA - 230V | ||
| Power Factor | Cos Ф 0.8 | ||
| Yanmar Engine | L100V | ||
| Fuel | Diesel | ||
| No. Cylinders | 1 | ||
| Power | 8.8HP (6.5kWm) | ||
| Displacement | 1123cm3 | ||
| Cooling System | Air | ||
| Starting System | Electric | ||
| Fuel Tank Capacity | 30l | ||
| Fuel Consumption | @ 75% 2.2l/h | ||
| Insulation Class | H | ||
| Ambient Temperature | 40ºC | ||
| Altitude | 1000m | ||
| Degree of Protection | IP23 | ||
| Dimensions | (LxWxH) 1160 x 631 x 872mm | ||
| Dry Weight | 200kg | ||
