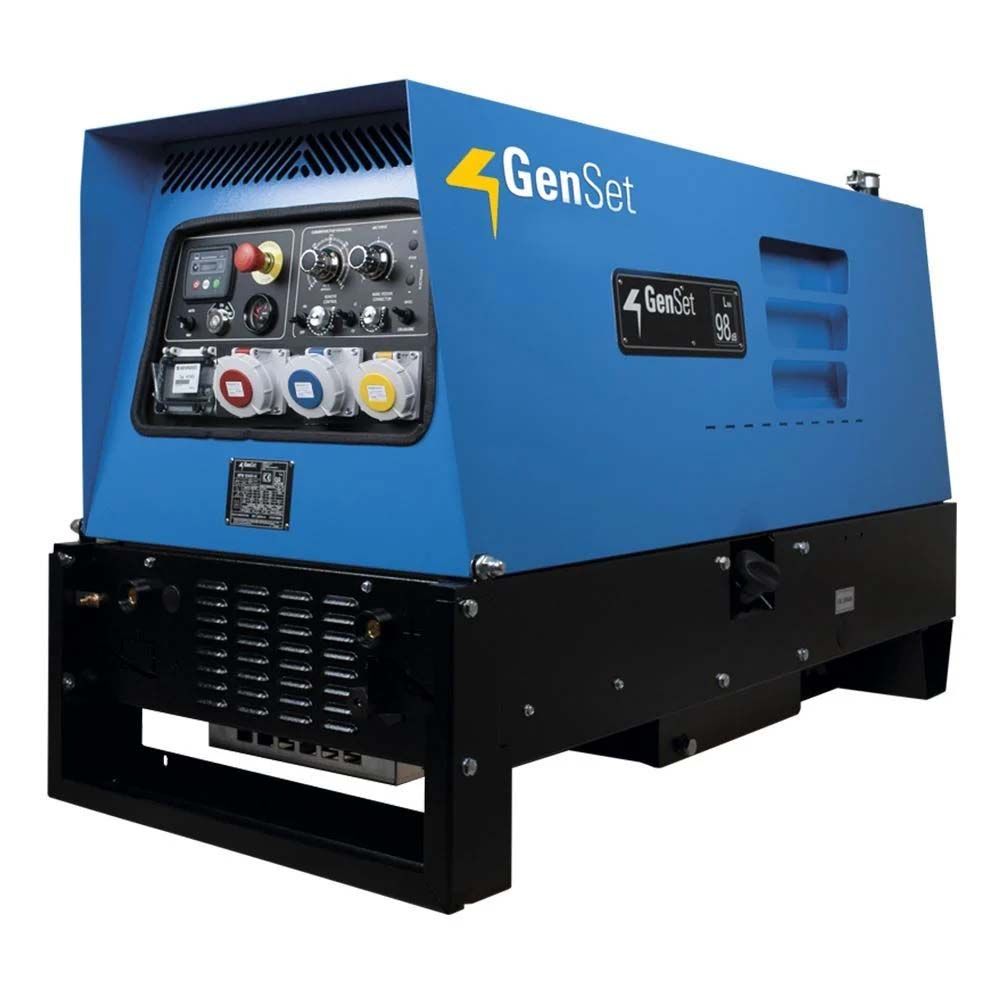

GenSet 500A Diesel Engine Driven Welder Generator

CODE

GS-WG500DY

2 - 3 Day Delivery

Order in for UK Mainland delivery between 21/05/2026 to 22/05/2026

Details

Compact and resistant engine driven welder suitable for frequent handling. Equipped with Yanmar 1500/1800 RPM engine and on board control panel, it’s fitted for remote control operation. Carbon Arc gouging as standard.

Asynchronous alternator for a better welding current quality, clean and distortion free wave form. Perfect to power inverters and battery chargers.

Shielded Metal Arc Welding (SMAW) CV MIG (GMAW) Carbon Arc Gouging (CAG)
Arc force control
Remote control socket
Carbon Arc Gouging (CAG) socket
Low-High amps switch for a more accurate arc control
Auto engine protection shutdown system with warning lights in case of: battery charger failure, low fuel level, low oil pressure, high coolant temperature Starting battery, Emergency stop button
Fuel level gauge, Hourmeter, Voltmeter 50/60Hz selector, Engine oil drain pipe
Central lifting hook, Forklift pockets
1 x 16A 110V single phase socket
1 x 32A 110V single phase socket
1 x 32A 400V three phase socket
Power outage protections
Earth leakage circuit breaker (ELCB)

Tech Specs

Noise Level (LWA)	98 (72dB a 7m)
AC Generator 50Hz	Asynchronous
Three Phase Max. Power	16kVA - 400V
Single Phase Max. Power	5.3kVA - 230V
Single Phase Max. Power	6kVA - 110V
Power Factor	Cos Ф 0.8
DC Welding	Electronic current regulation
Duty Cycle @ 60%	450A - 32V
Output Range	30A - 500A
Open Circuit Voltage	70V
Max Welding Rod	8mm
Yanmar Engine	4 TNV 88
Fuel	Diesel
No. Cylinders	4
Power	24.1HP (18kWm) at 1500rpm, 29.4HP (21.6kWm) at 1800rpm
Displacement	2190cm3
Cooling System	Water
Starting System	Electric
Fuel Tank Capacity	38l
Fuel Consumption @ 75%	3.5l/h at 1500rpm 4.7l/h at 1800rpm
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	1620 x 750 x 1290mm
Dry Weight	755Kg
