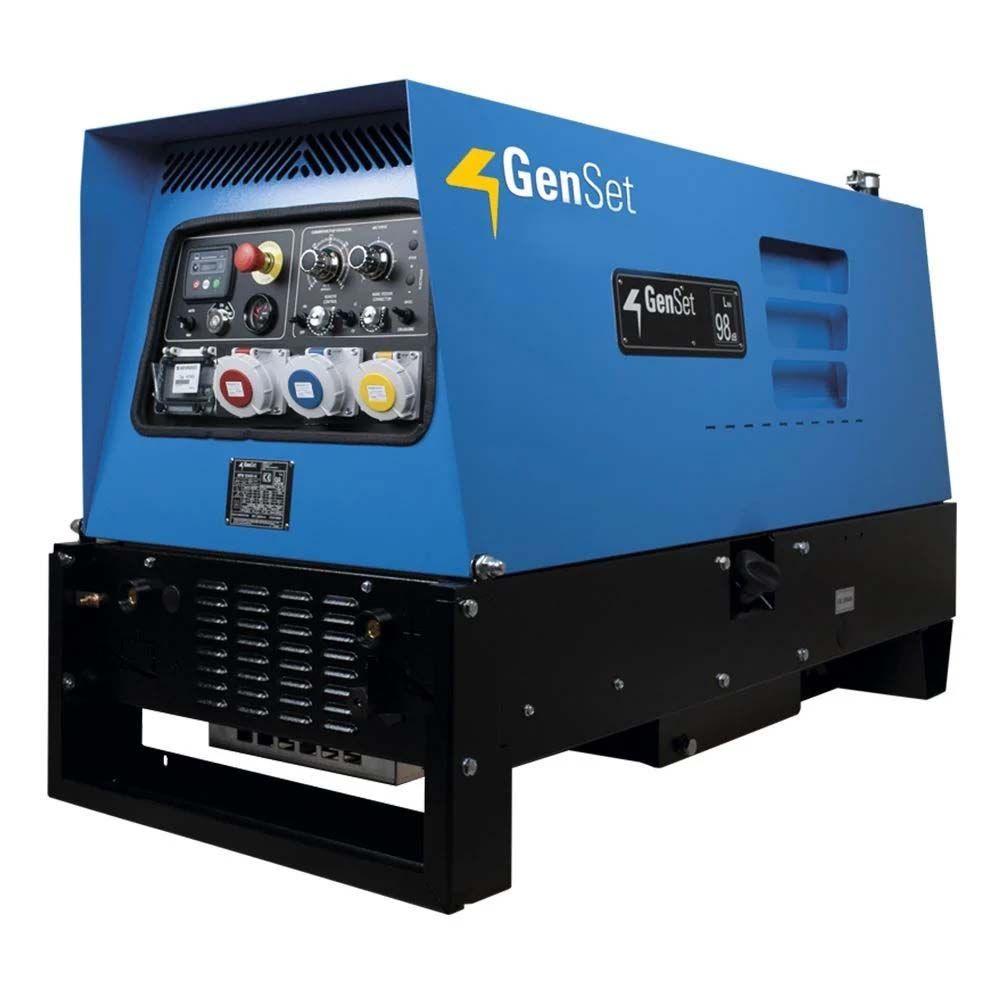

GenSet 400A Yanmar Diesel Engine Driven Welder

CODE

GS-WG400DY

2 - 3 Day Delivery

Order in for UK Mainland delivery between 21/05/2026 to 22/05/2026

Details

Compact and durable, fitted by central top lifting hook and forklift pockets to make handling easy. Equipped with 3000 RPM Yanmar engine 3TNV80. Control panel with digital controller to check mechanical and electrical data.

Asynchronous alternator for a better welding process quality and a clean distortion for wave form. Designed to work simultaneously both as welder and generator.

Shielded Metal Arc Welding (SMAW) CV MIG (GMAW)
Arc force control
Remote control socketController with digital display for full monitoring of generator parameters: generator voltage, battery voltage, frequency, hourmeter
With auto engine protection shutdown system in case of: fail to start, low oil pressure, high coolant temperature, low fuel level, over/under voltage, over/under frequency
Fuel level gauge Starting battery
Emergency stop button
Automatic idle device when no load is connected
1 x 32A 110V single phase socket
1 x 32A 230V single phase socket
1 x 32A 400V three phase socket
Earth leakage circuit breaker (ELCB)
Power output protections
Engine oil drain pipe
Central lifting hook
Forklift ready base

Tech Specs

Noise Level (LWA)	98 (73dB a 7m)
AC Generator 50Hz	Asynchronous
Three Phase Max. Power	16kVA - 400V
Single Phase Max. Power	5.3kVA - 230V
Single Phase Max. Power	2.7kVA - 110V
Power Factor	Cos Ф 0.8
DC Welding	Electronic current regulation
Duty Cycle @ 60%	370A - 35V
Output Range	30A - 400A
Open Circuit Voltage	70V
Max Welding Rod	6mm
Yanmar Engine	3TNV80-FYE
Fuel	Diesel
No. Cylinders	3
Power	23.11HP (17kWm)
Displacement	1267cm3
Cooling System	Water
Starting System	Electric
Fuel Tank Capacity	38l
Fuel Consumption @ 75%	4.25l/h
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	1625 x 772 x 1065mm
Dry Weight	502Kg
