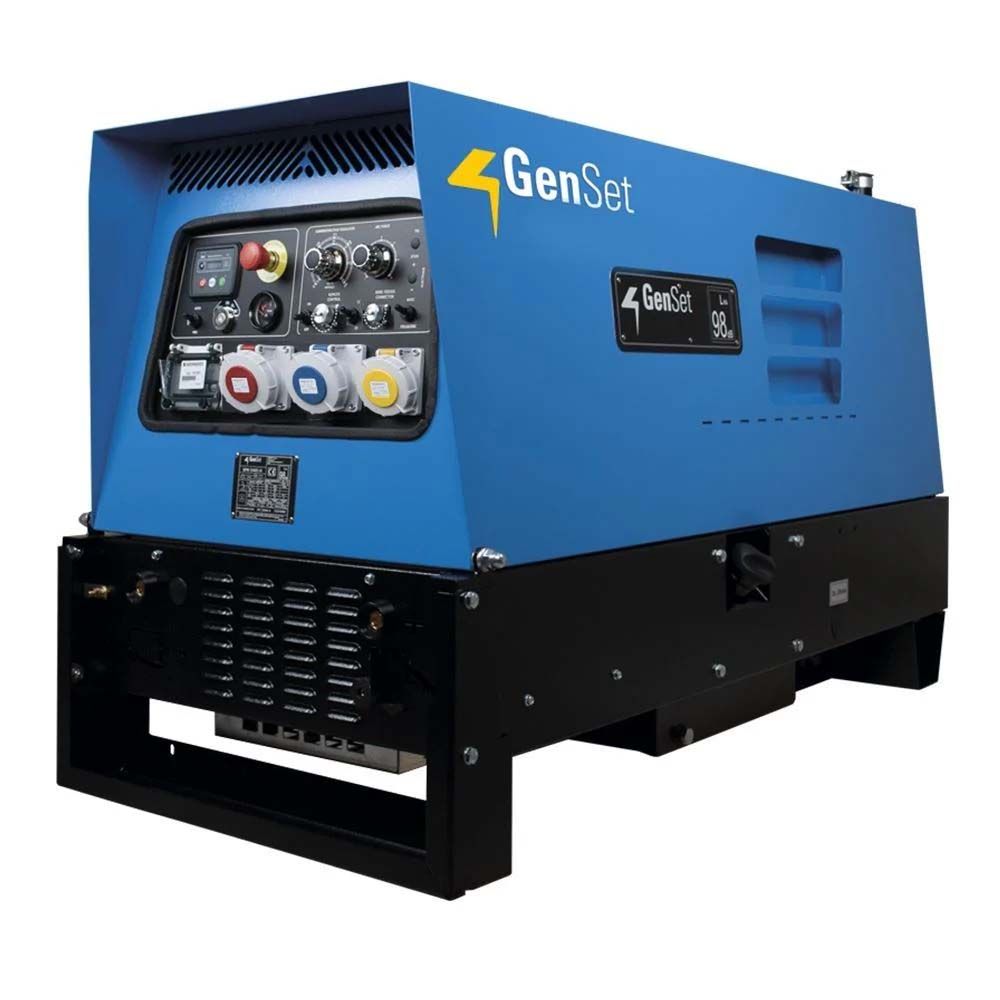

GenSet 400A Kubota Diesel Engine Driven Welder

Skip to the beginning of the images gallery

GenSet 400A Kubota Diesel Engine Driven Welder

CODE

GS-WG400DK

2 - 3 Day Delivery

Order in for UK Mainland delivery between 21/05/2026 to 22/05/2026

Details

Compact and resistant engine driven welder suitable for frequent handling. Its structure allows an easy maintenance.

Equipped with Kubota 3000 RPM engine and on board control panel, it’s fitted for remote control operation. Asynchronous alternator for a better welding current quality, clean and distortion free wave form.

Shielded Metal Arc Welding (SMAW) CV MIG (GMAW)
Arc force control
Remote control socket
Controller with digital display for full monitoring of generator parameters: generator voltage, battery voltage, frequency, hourmeter
With auto engine protection shutdown system in case of: fail to start, low oil pressure, high coolant temperature, low fuel level, Over/under voltage, over/under frequency
Starting battery
Emergency stop button
Fuel level gauge
Automatic idle device when no load is connected
1 x 32A 110V single phase socket
1 x 32A 230V single phase socket
1 x 32A 400V three phase socket
Earth leakage circuit breaker (ELCB)
Power output protections
Engine oil drain pipe
Central lifting hook, Forklift ready base

Tech Specs

Noise Level (LWA)	98 (73dB a 7m)
AC Generator 50Hz	Asynchronous
Three Phase Max. Power	15kVA - 400V
Single Phase Max. Power	5kVA - 230V
Single Phase Max. Power	2.7kVA - 110V
Power Factor	Cos Ф 0.8
DC Welding	Electronic current regulation
Duty Cycle @ 60%	350A - 34V
Output Range	30A - 400A
Open Circuit Voltage	70V
Max Welding Rod	6mm
Kubota Engine	D1105
Fuel	Diesel
No. Cylinders	3
Power	24.6HP (18.1kWm)
Displacement	1123cm3
Cooling System	Water
Starting System	Electric
Fuel Tank Capacity	38l
Fuel Consumption @ 75%	4.9l/h
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	1625 x 772 x 1065mm
Dry Weight	450Kg
