GenSet 300A Yanmar Diesel Engine Driven Welder

Skip to the beginning of the images gallery

GenSet 300A Yanmar Diesel Engine Driven Welder

CODE

GS-WG300DY

2 - 3 Day Delivery

Order in for UK Mainland delivery between 21/05/2026 to 22/05/2026

Details

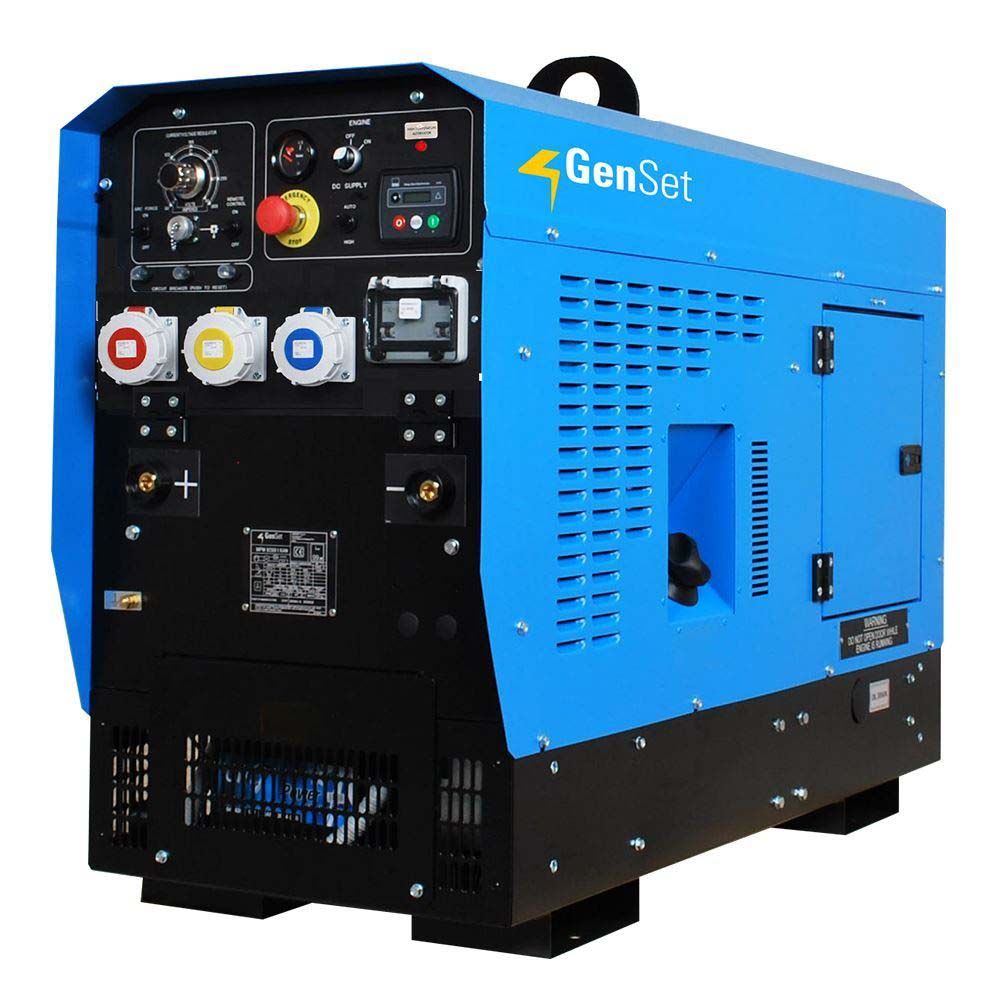

Compact and resistant engine driven welder, thanks to the forklift pockets and the practical central lifting hook is suitable for frequent handling. Equipped with Yanmar 3000 RPM engine and on board control, it’s fitted for remote control operation. Asynchronous alternator for a better welding current quality, clean and distortion free wave form.

Shielded Metal Arc Welding (SMAW) CV MIG (GMAW)
Arc force control
Remote control socket
Controller with digital display for monitoring of generator parameters: generator voltage, battery voltage, frequency, hourmeter, oil pressure, water temperature, fail to start
With auto engine protection shutdown system in case of: low oil pressure, high coolant temperature, over/under voltage, over/under frequency
High alternator temperature warning light
Starting battery
Automatic idle device when no load is connected
Emergency stop button
1 x 32A 110V single phase socket
1 x 32A 230V single phase socket
1 x 16A 400V three phase socket
Earth leakage circuit breaker (ELCB)
Power output protections
Central lifting hook
Engine oil drain pipe

Tech Specs

Noise Level (LWA)	99 (74dB a 7m)
AC Generator 50Hz	Asynchronous
Three Phase Max. Power	8kVA - 400V
Single Phase Max. Power	4.6kVA - 230V
Single Phase Max. Power	2.7kVA - 110V
Power Factor
DC Welding	Electronic current regulation
Duty Cycle @ 60%	270A - 31V
Output Range	30A - 300A
Open Circuit Voltage	70V
Max Welding Rod	6mm
Yanmar Engine	3TNM72
Fuel	Diesel
No. Cylinders	3
Power	19.4HP (14.4kWm)
Displacement	904cm3
Cooling System	Water
Starting System	Electric
Fuel Tank Capacity	30l
Fuel Consumption @ 75%	5.1l/h
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	1408 x 532 x 1015mm
Dry Weight	385Kg
