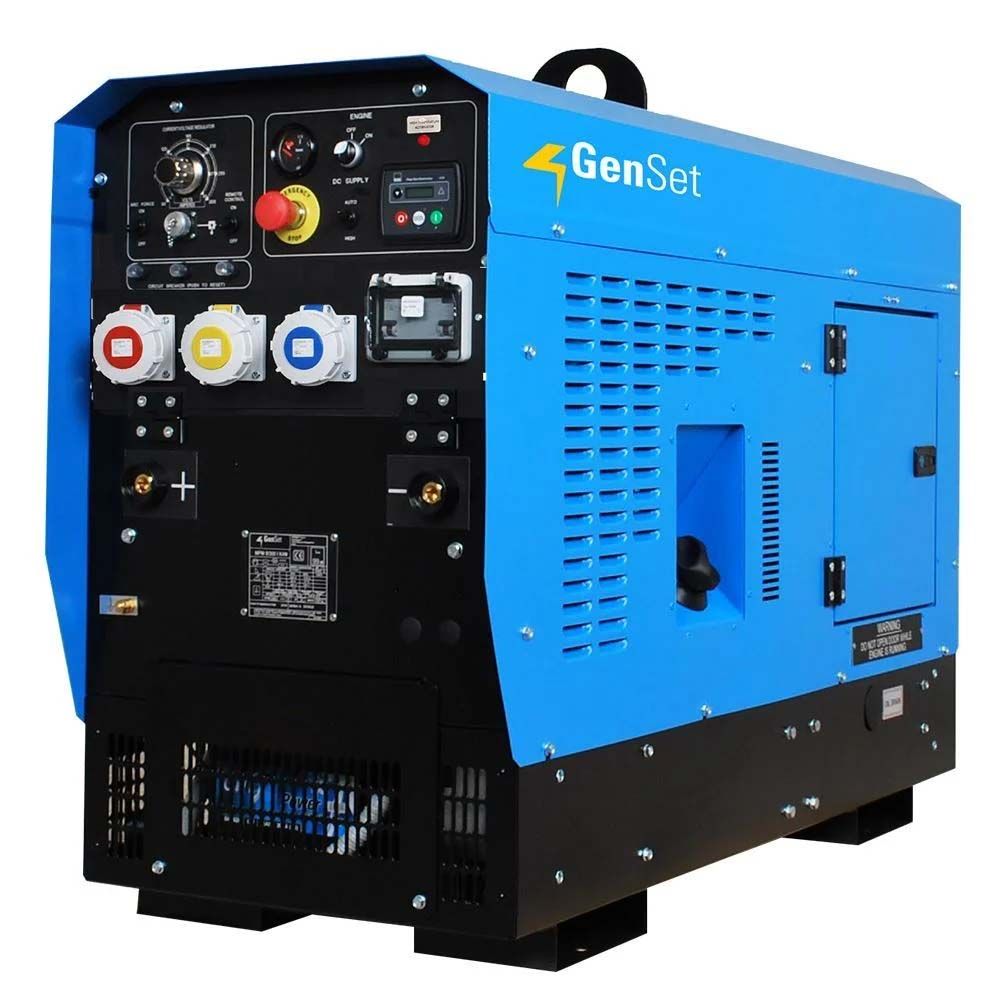

GenSet 300A Kubota Diesel Engine Driven Welder

Skip to the beginning of the images gallery

GenSet 300A Kubota Diesel Engine Driven Welder

CODE

GS-WG300DK

2 - 3 Day Delivery

Order in for UK Mainland delivery between 21/05/2026 to 22/05/2026

Details

Compact and durable engine driven welder, thanks to the forklift pockets and convenient central lifting hook, is suitable for frequent relocation.

Equipped with a 3000 RPM Kubota engine and on-board control logic, it is ready for remote control operation. An asynchronous alternator ensures improved welding current quality and a clean, distortion-free waveform.

Shielded Metal Arc Welding (SMAW) CV MIG (GMAW)
Forced arc selector
Remote control socket
Control with digital display for reading the following parameters: generator voltage, battery voltage, frequency, hour meter
Complete with automatic engine shutdown device with alarm signal on the display in the event of: low oil pressure, high coolant temperature, over/low voltage, over/under frequency
High alternator temperature warning light
Starter battery
Automatic return to idle speed when no load
Emergency stop button
1 x 16A 400V three phase socket
1 x 32A 230V single phase socket
1 x 32A 110V single phase socket
Power output protections
Central lifting hook

Tech Specs

Noise Level (LWA)	99 (74dB a 7m)
AC Generator 50Hz	Asynchronous
Three Phase Max. Power	8kVA - 400V
Single Phase Max. Power	4.6kVA - 230V
Single Phase Max. Power	2.7kVA - 110V
Power Factor	Cos Ф 0.8
DC Welding	Electronic current regulation
Duty Cycle @ 60%	270A - 31V
Output Range	30A - 300A
Open Circuit Voltage	70V
Max Welding Rod	6mm
Kubota Engine	D722
Fuel	Diesel
No. Cylinders	3
Power	19HP (14kWm)
Displacement	719cm3
Cooling System	Water
Starting System	Electric
Fuel Tank Capacity	30l
Fuel Consumption @ 75%	3.3l/h
Insulation Class	H
Ambient Temperature	40ºC
Altitude	1000m
Degree of Protection	IP23
Dimensions (LxWxH)	1360 x 530 x 870mm
Dry Weight	345Kg
