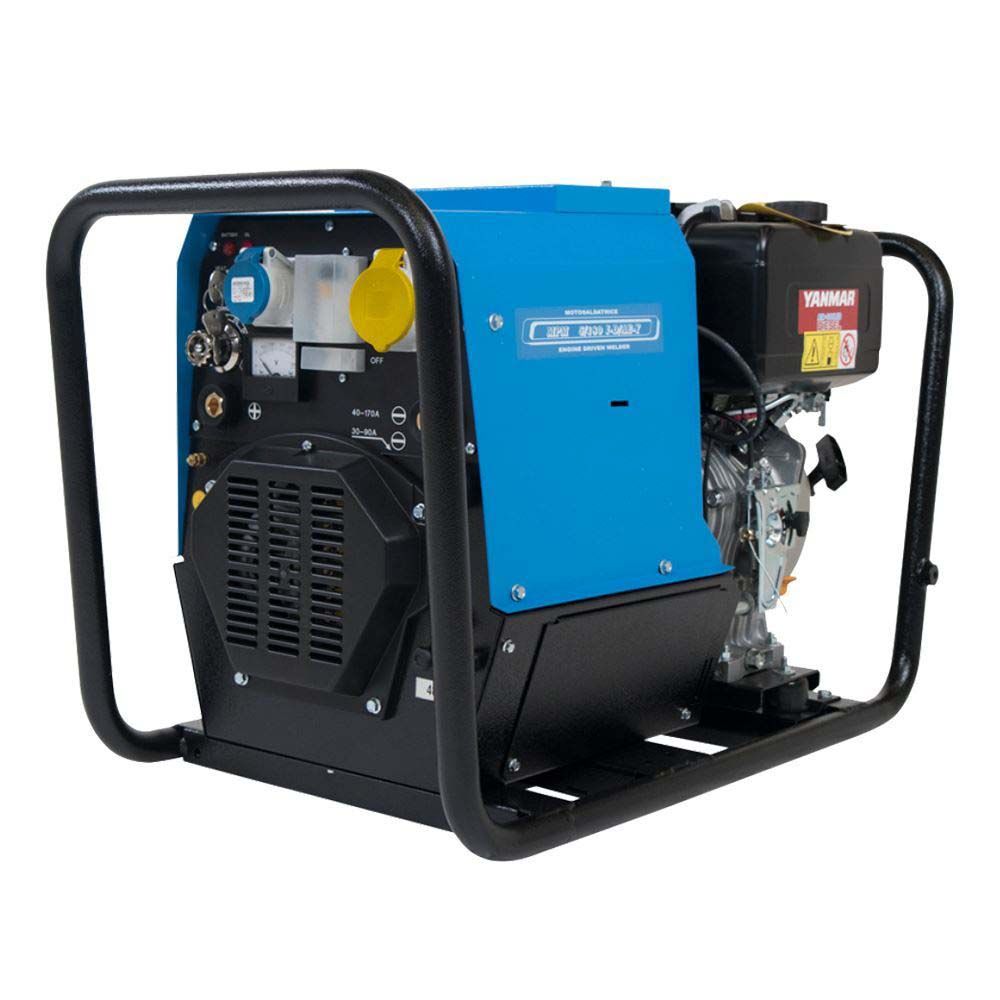

GenSet 170A Diesel Engine Driven Welder Generator
CODE
GS-WG170DY
2 - 3 Day Delivery
Compact and lightweight portable engine driven welder, equipped with a 3000 RPM Yanmar engine. Asynchronous alternator for enhanced welding current quality, clean and distortion-free waveform. Just like all GenSet engine driven welders, it is designed to be used as both a generator and welder simultaneously, its simple and smart design allows a practical and easy use.
- Shielded Metal Arc Welding (SMAW)
- Warning lights for: battery charger failure
- low oil pressure
- Starting battery
- Voltmeter
- 1 x 16 A 230V single phase socket
- 1 x 16 A 110V single phase socket
- Power outputs protections
- Earth leakage circuit breaker (ELCB)
| Noise Level | (LWA) 99 (74dB a 7m) | ||
| AC Generator | 50Hz Asynchronous | ||
| Single Phase Max. Power | 4kVA - 230V | ||
| Single Phase Max. Power | 2kVA - 110V | ||
| Power Factor | Cos Ф 0.8 | ||
| DC Welding | Electronic current regulation | ||
| Duty Cycle | @ 60% 140A - 26V | ||
| Output Range | 40A - 170A | ||
| Open Circuit Voltage | 90V | ||
| Max Welding Rod | 4mm | ||
| Yanmar Engine | L100 V | ||
| Fuel | Diesel | ||
| No. Cylinders | 1 | ||
| Power | 8.8HP (6.5kWm) | ||
| Displacement | 435cm3 | ||
| Cooling System | Air | ||
| Starting System | Electric | ||
| Fuel Tank Capacity | 5.4l | ||
| Fuel Consumption | @ 75% 1.5l/h | ||
| Insulation Class | H | ||
| Ambient Temperature | 40ºC | ||
| Altitude | 1000m | ||
| Degree of Protection | IP23 | ||
| Dimensions (LxWxH) | 950 x 480 x 574mm | ||
| Dry Weight | 148Kg | ||
