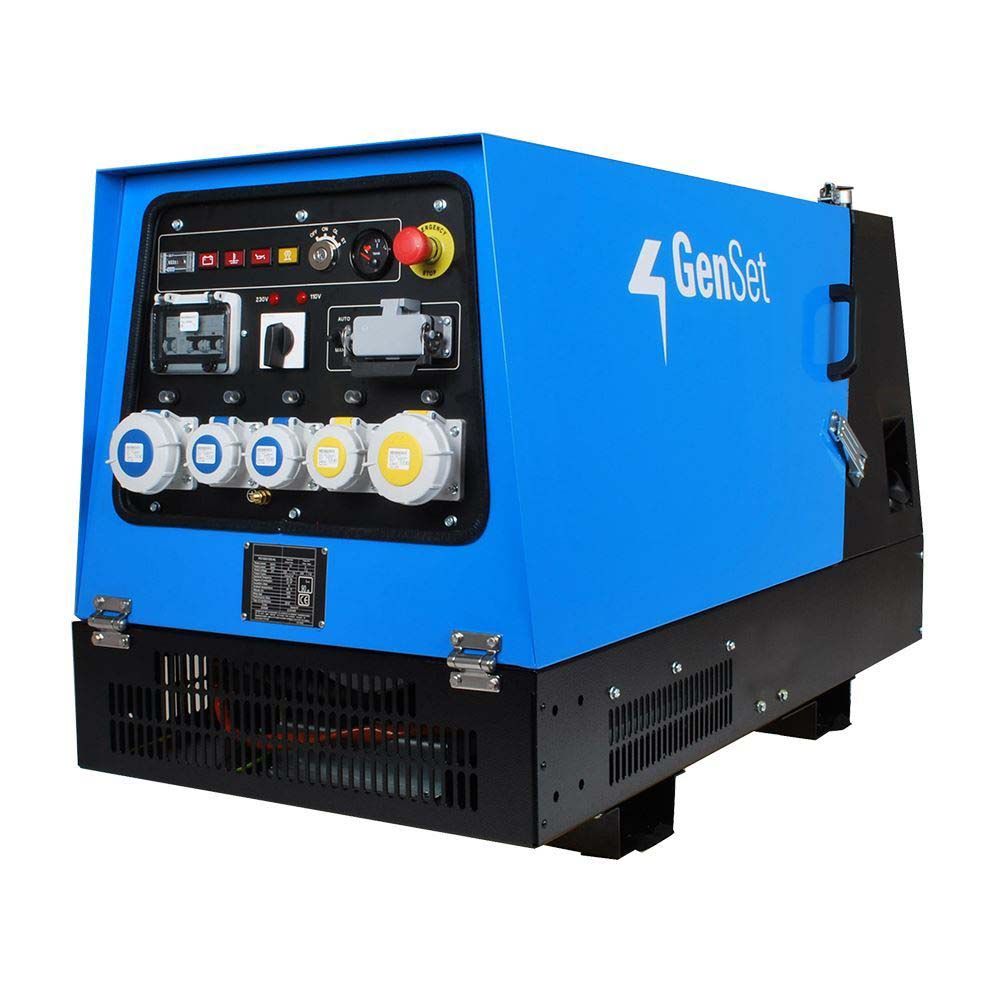

GenSet 10kVA Diesel Generator 230V/110V 3000rpm
CODE
GS-PG10DK3000
In stock
Super silenced generator equipped with Kubota 3000 RPM engine. Compact and resistant, they are designed for automatic starting via a convenient connector on the instrument panel. Equipped with central lifting hook and forkable base for practical handling.
- Auto engine protection shutdown system with warning lights for: battery charger failure, high water temperature, low fuel level, low oil pressure
- Starting battery
- Emergency stop button
- Hourmeter
- 1 x 16A 230V schuko single phase socket
- 1 x 16A 230V single phase socket
- 1 x 32A 230V single phase socket
- Power output protections
- Earth leakage circuit breaker (ELCB)
- Connector for AMF-ATS panel and/or remote control
- Central lifting hook
| Noise Level (LWA) | 95 (70dB a 7m) | ||
| AC Generator | 50Hz Synchronous | ||
| Single Phase Max. Power | 10kVA - 230V | ||
| Power Factor | Cos Ф 0.8 | ||
| Kubota Engine | D 722 3000 RPM | ||
| Fuel | Diesel | ||
| No. Cylinders | 3 | ||
| Power | 17HP (12.5kWm) | ||
| Displacement | 719cm3 | ||
| Cooling System | Water | ||
| Starting System | Electric | ||
| Fuel Tank Capacity | 30l | ||
| Fuel Consumption | @ 75% 3.3l/h | ||
| Insulation Class | H | ||
| Ambient Temperature | 40ºC | ||
| Altitude | 1000m | ||
| Degree of Protection | IP23 | ||
| Dimensions | (LxWxH) 1360 x 675 x 860mm | ||
| Dry Weight | 300kg | ||
